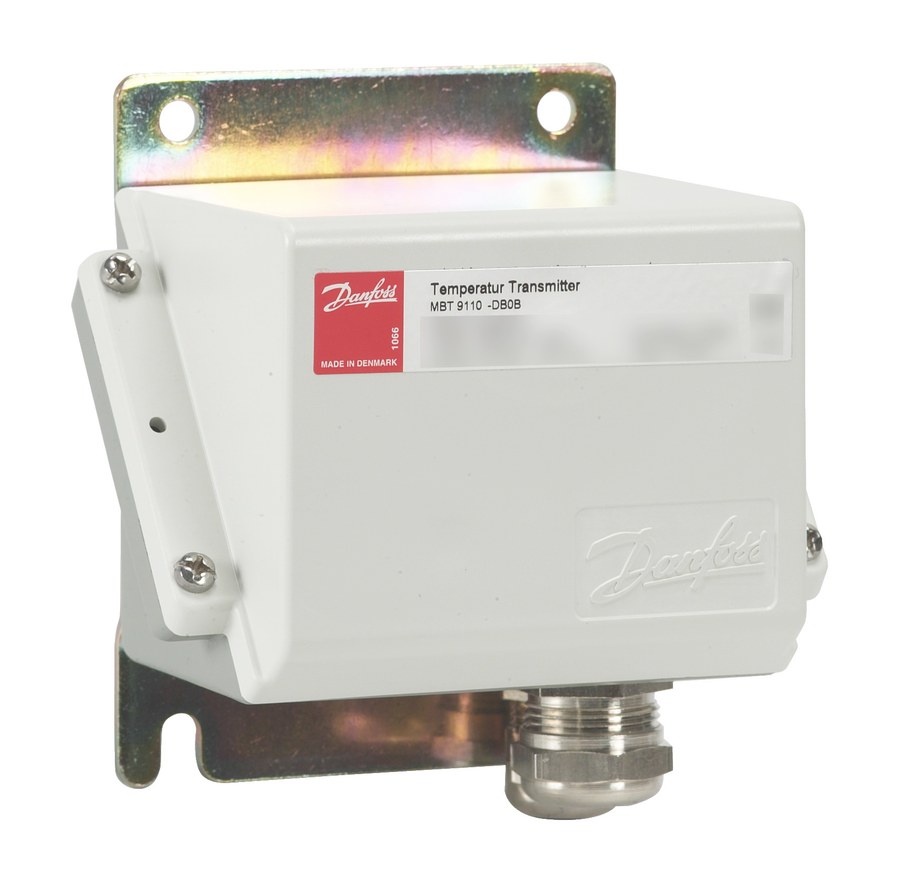

Danfoss MBT 9110 temperature transmitter, Pt 100 to 4-20 mA, range 0 to +600 C (+32 to +1112 F)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 9110 head-mounted temperature transmitter, code 084Z6135 (type designation MBT 9110-000B-D160). Two-wire transmitter that converts a Pt 100 (EN 60751) resistance input into a 4-20 mA output over the range 0 to +600 C (+32 to +1112 F); sensor input capability extends -200 to +850 C. Supply 8-35 V DC. Fits standard sensor connection heads. IP54 enclosure. CE marked.
Technical Specifications
- Type
- MBT 9110 (head-mounted temperature transmitter)
- Type designation
- MBT 9110-000B-D160
- Code number
- 084Z6135
- Input
- Pt 100 platinum resistance (EN 60751)
- Output signal
- 4-20 mA (2-wire)
- Measuring range (setting)
- 0 to +600 C (+32 to +1112 F)
- Input range capability
- -200 to +850 C
- Supply voltage
- 8-35 V DC
- Enclosure rating
- IP54
- Packing quantity
- 8 pc
- Net weight
- 0.6 kg
- Approvals
- CE
- EAN
- 5702423131709
- Product group
- Sensors
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Output 2 wire
- Electrical connection size
- 2 terminals
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 600 °C
- Measuring range [°C] [min]
- 0 °C
- Measuring range [°F] [max]
- 1112 °F
- Measuring range [°F] [min]
- 32 °F
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element type
- Pt
- Supply voltage [V] DC [max]
- 35 V
- Supply voltage [V] DC [min]
- 8 V
- Temperature range [°C] [max]
- 850 °C
- Temperature range [°C] [min]
- -200 °C
- Temperature range [°F] [max]
- 1562 °F
- Temperature range [°F] [min]
- -328 °F
- Transmitter setting range [°C] [max]
- 600 °C
- Transmitter setting range [°C] [min]
- 0 °C
- Transmitter setting range [°F] [max]
- 1112 °F
- Transmitter setting range [°F] [min]
- 32 °F
- Transmitter type
- Standard in box
Standards & Compliance
- Temperature Range
- 0 to +600 C (+32 to +1112 F)
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
MBT 9110 transmitter. Confirm the paired Pt 100 sensor and that the 4-20 mA output, 8-35 V DC supply and 0 to +600 C (+32 to +1112 F) range suit the controller/DCS input. Mounts in a standard sensor connection head.
