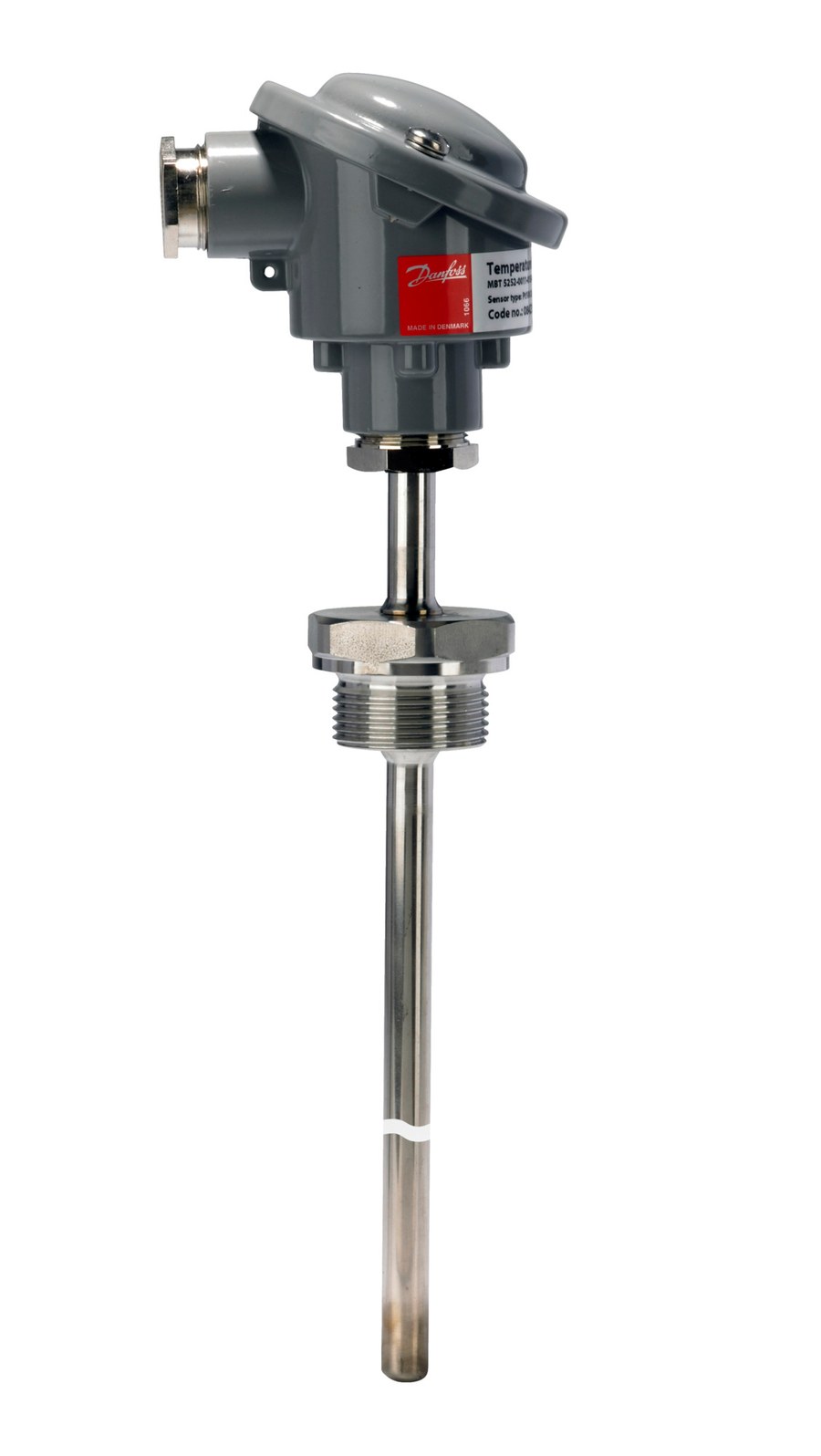

Danfoss MBT 5252 temperature transmitter, Pt 100, 50 mm insertion, NPT 1/2-14, 4-20 mA output (code 084Z6171)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5252 insertion temperature transmitter, code 084Z6171 (type designation MBT 5252-0011-0050-0700-G110). Integrated Pt 100 sensor and 2-wire loop-powered transmitter delivering a 4-20 mA output proportional to the measuring range, for cooling water, oil and refrigeration plant in general industry and marine installations. Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 50 mm; NPT 1/2-14 male process connection (ANSI/ASME B1.20.1); AISI 316 Ti protection tube, 10 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); 8-35 V DC supply; Type B connection head, Pg 16; IP65 enclosure per IEC 60529. CE marked.
Specifications
- Part number
- 084Z6171
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 50 mm insertion
- Thread standard
- ANSI/ASME B1.20.1
Compatibility
MBT 5252 transmitter (4-20 mA). Confirm the measuring range (-50 to +200 C) matches the receiving controller/PLC scaling and that an 8-35 V DC loop supply is available. Insertion 50 mm, NPT 1/2-14 thread.
Standards
- EN 60751
- ANSI/ASME B1.20.1
- IEC 60529
Approvals
