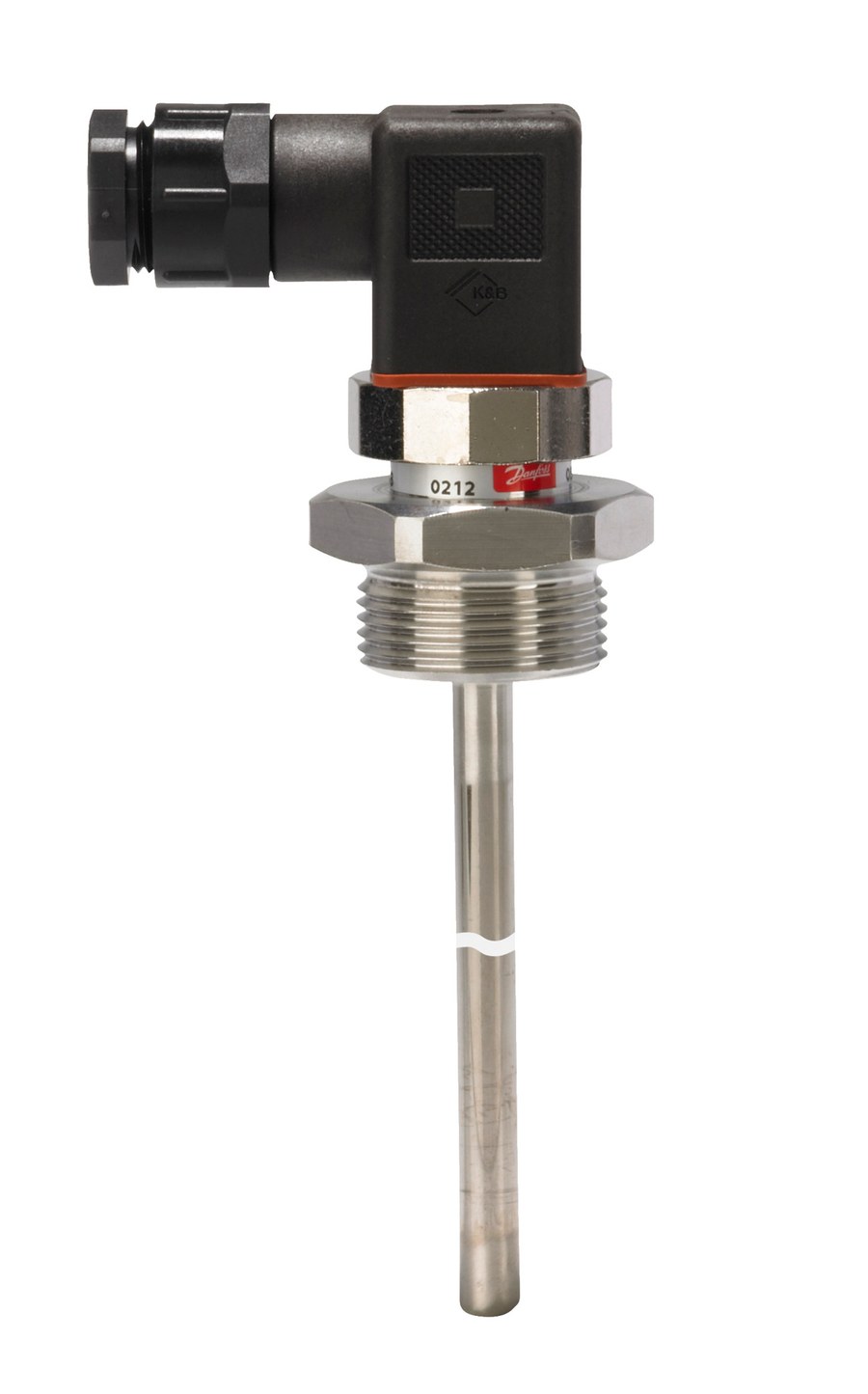

Danfoss MBT 5250 temperature sensor, Pt 100 100 ohm, 120 mm insertion, M 24x2 process connection (code 084Z6195)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5250 heavy-duty temperature sensor, code 084Z6195 (type designation MBT 5250-0000-120-360). Insertion RTD temperature sensor for controlling cooling water, lubricating oil, hydraulic oil and refrigeration plant in general industry and marine installations. Standardized Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 120 mm; M 24x2 male (ISO metric) process connection; AISI 316 Ti stainless-steel protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Angular connector (form A) per EN 175301-803-A, Pg 13.5; IP65 enclosure per IEC 60529. The measuring insert of the MBT 5250 is changeable. CE marked.
Specifications
- Part number
- 084Z6195
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C
- IP rating
- IP65
- Standard size
- 120 mm insertion
Compatibility
MBT 5250 insertion sensor with changeable measuring insert. Confirm insertion length (120 mm), process thread (M 24x2) and element (Pt 100) match the thermowell/pocket and controller input before ordering. A matching thermowell can be ordered separately.
Standards
- EN 60751
- EN 175301-803-A
- IEC 60529
Approvals
