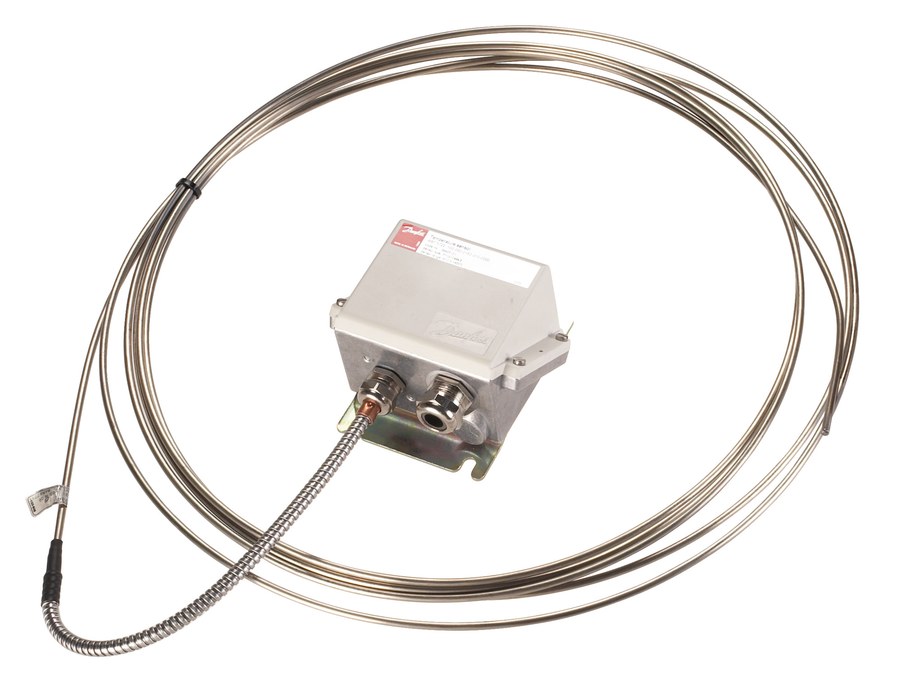

Danfoss MBT 5722 temperature sensor with terminal box, Pt 100, 6 m cable (code 084Z6136)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5722 cable temperature sensor with terminal-box head, code 084Z6136 (type designation MBT 5722-001-060-0102-000-0000). RTD with a slim AISI 316 Ti measuring tip (4.5 mm diameter) and an integral 6 m lead terminated in a metal/plastic connection box; used where the measuring point is remote from the head. Standardized Pt 100 platinum element (100 ohm at 0 C), Class B per EN 60751. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. IP65 enclosure per IEC 60529. CE marked.
Specifications
- Part number
- 084Z6136
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 6 m cable
Compatibility
MBT 5722 box-head cable sensor. Confirm cable length (6 m) reaches the terminal point and that the controller accepts the Pt 100 resistance input.
Standards
Approvals
