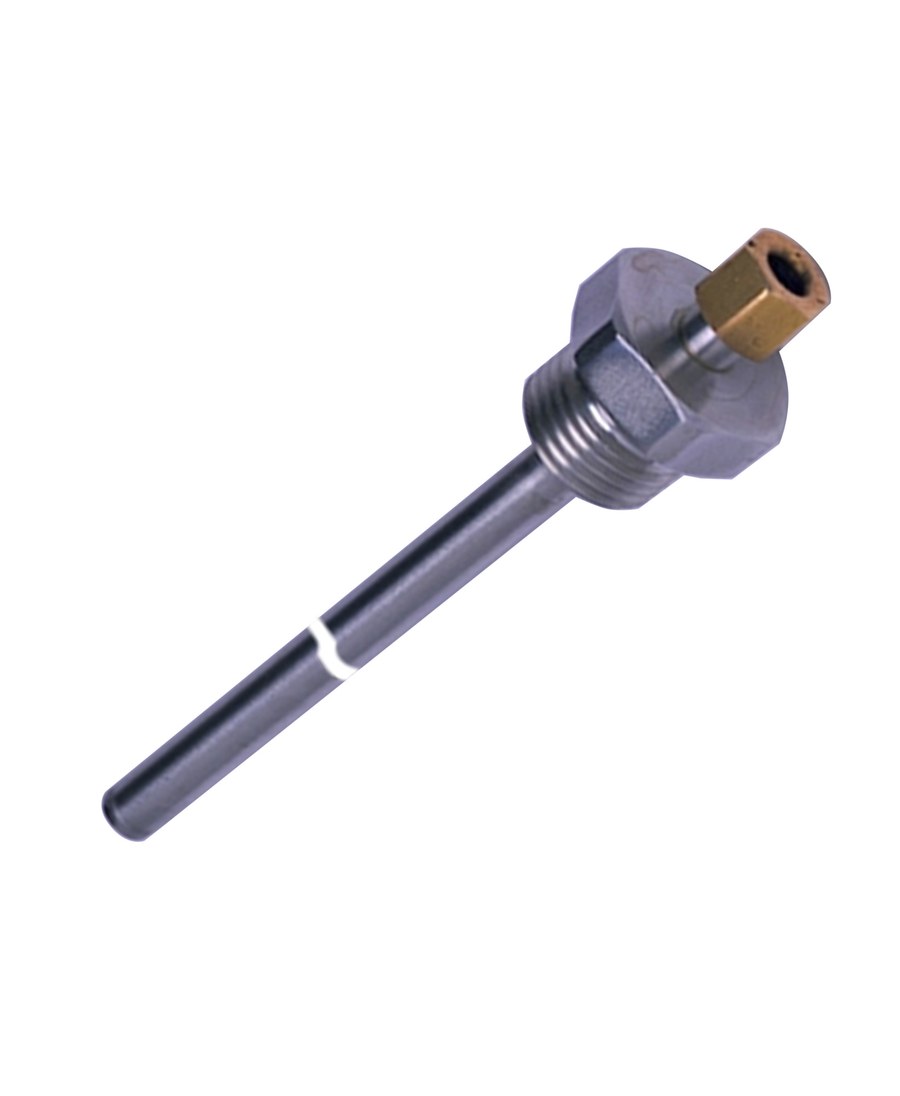

Danfoss MBT 120 sensor pocket (thermowell), 200 mm insertion, G 1/2 connection, AISI 316 Ti (code 084Z6053)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 120 sensor pocket, code 084Z6053 (type designation MBT 120-210-200-3). Stainless-steel thermowell that holds an MBT 153 cable temperature sensor, allowing the sensor to be removed and refitted without draining the system. AISI 316 Ti protection tube, 8 mm diameter; G 1/2 male (ISO 228-1-A) process connection; insertion length 200 mm. Rated for medium temperatures -50 to +200 C (-58 to +392 F). CE marked.
Specifications
- Part number
- 084Z6053
- HS code
- 9025.90
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Standard size
- 200 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 120 sensor pocket for MBT 153 cable sensors. Confirm insertion length (200 mm) and thread (G 1/2) suit the installation and that the paired MBT 153 measuring tip (6 mm) fits the pocket bore.
Standards
Approvals
