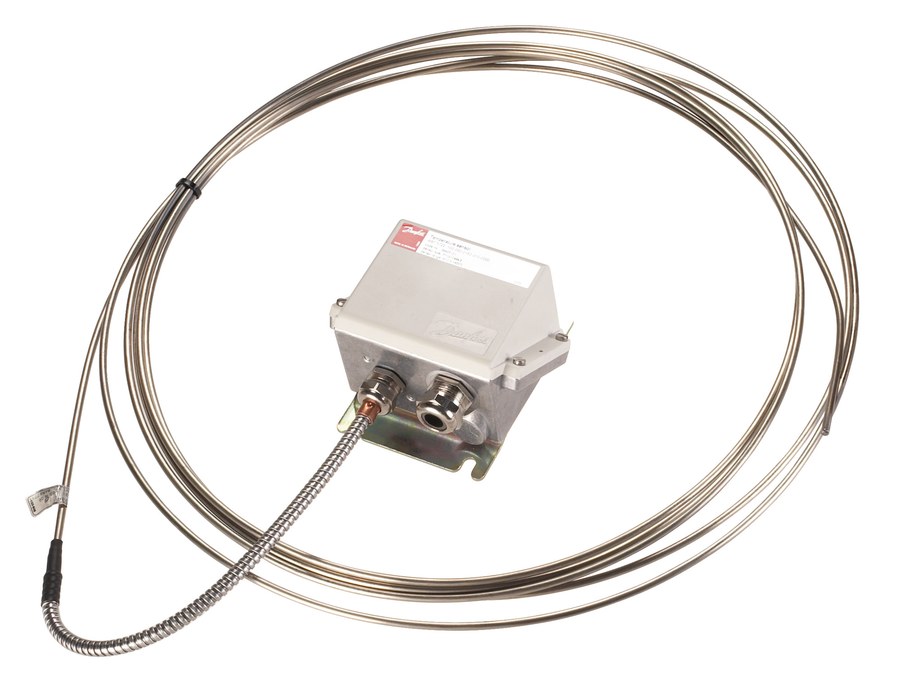

Danfoss MBT 5722 temperature sensor with terminal box, Pt 100, 7 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5722 cable temperature sensor with terminal-box head, code 084Z6116 (type designation MBT 5722-001-070-0102-000-0000). RTD with a slim AISI 316 Ti measuring tip (4.5 mm diameter) and an integral 7 m lead terminated in a metal/plastic connection box; used where the measuring point is remote from the head. Standardized Pt 100 platinum element (100 ohm at 0 C), Class B per EN 60751. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. IP65 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 5722 (cable temperature sensor with terminal box)
- Type designation
- MBT 5722-001-070-0102-000-0000
- Code number
- 084Z6116
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Cable length
- 7 m
- Measuring tip
- AISI 316 Ti stainless steel, 4.5 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- terminal box (metal/plastic), 3 terminals
- Enclosure rating
- IP65 per IEC 60529
- Packing quantity
- 1 pc
- Net weight
- 0.972 kg
- Approvals
- CE
- EAN
- 5702423132591
- Product group
- Sensors
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Brass
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 3 terminals
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 276 in
- Insertion length [mm]
- 7000 mm
- Insertion type
- Variable
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection material
- Brass
- Protection tube diameter [in]
- 0.177 in
- Protection tube diameter [mm]
- 4.5 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 3 pc
Standards & Compliance
- Size / Series
- 7 m cable
- Material
- AISI 316 Ti stainless steel
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5722 box-head cable sensor. Confirm cable length (7 m) reaches the terminal point and that the controller accepts the Pt 100 resistance input.
