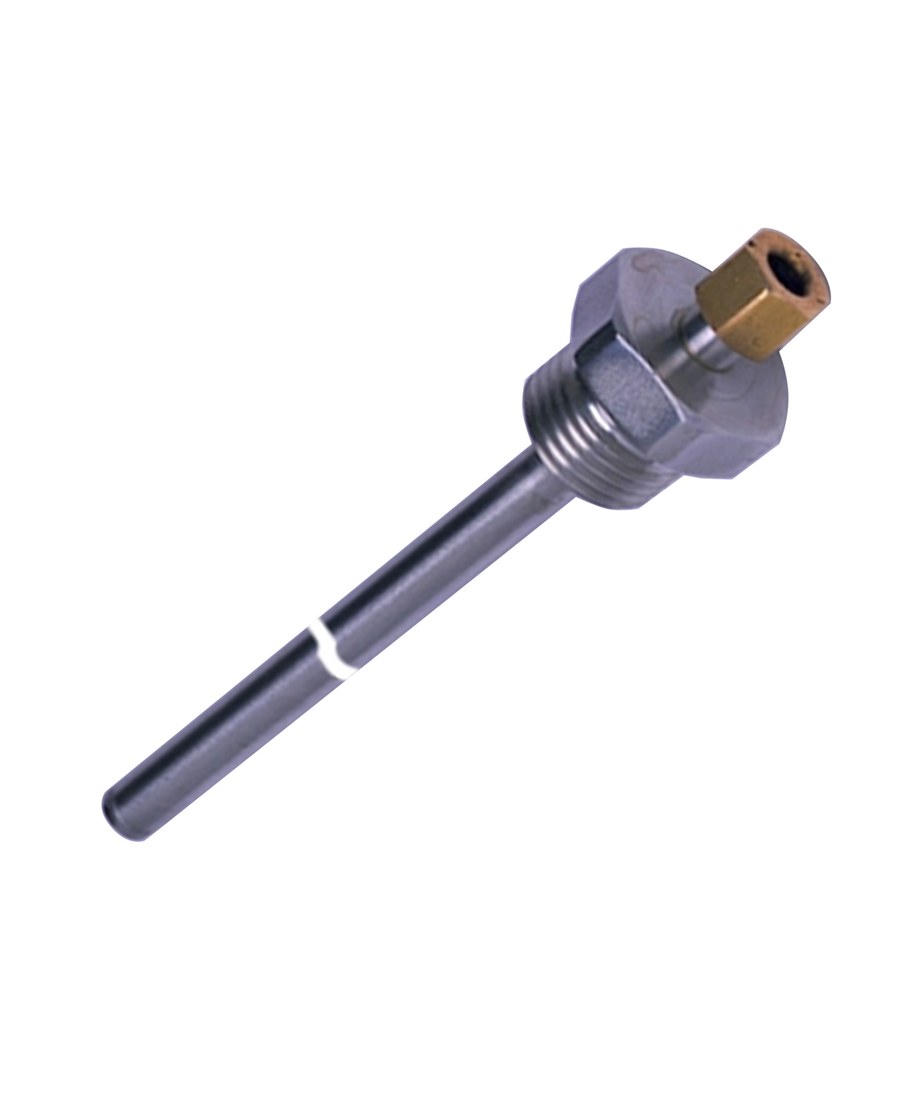

Danfoss MBT 120 sensor pocket (thermowell), 150 mm insertion, G 1/2 connection, AISI 316 Ti (code 084Z6052)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 120 sensor pocket, code 084Z6052 (type designation MBT 120-210-150-3). Stainless-steel thermowell that holds an MBT 153 cable temperature sensor, allowing the sensor to be removed and refitted without draining the system. AISI 316 Ti protection tube, 8 mm diameter; G 1/2 male (ISO 228-1-A) process connection; insertion length 150 mm. Rated for medium temperatures -50 to +200 C (-58 to +392 F). CE marked.
Technical Specifications
- Type
- MBT 120 (sensor pocket / thermowell)
- Type designation
- MBT 120-210-150-3
- Code number
- 084Z6052
- Function
- pocket for MBT 153 cable temperature sensor
- Insertion length
- 150 mm
- Process connection
- G 1/2 male (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 8 mm diameter
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Packing quantity
- 20 pc
- Net weight
- 0.107 kg
- Approvals
- CE
- EAN
- 5702423153350
- Product group
- Accessories, sensors
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion length [in]
- 5.9 in
- Insertion length [mm]
- 150 mm
- Insertion type
- Fixed
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- UL mark
- No
- Used for product
- MBT 153
Standards & Compliance
- Size / Series
- 150 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- HS Code
- 9025.90
Compatibility & Fitment
MBT 120 sensor pocket for MBT 153 cable sensors. Confirm insertion length (150 mm) and thread (G 1/2) suit the installation and that the paired MBT 153 measuring tip (6 mm) fits the pocket bore.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 120 sensor pocket (thermowell), 200 mm insertion, G 1/2 connection, AISI 316 Ti (code 084Z6053)
Danfoss
Danfoss MBT 120 sensor pocket (thermowell), 250 mm insertion, G 1/2 connection, AISI 316 Ti
084Z6054
Danfoss

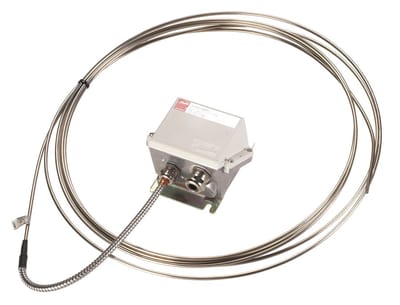

Danfoss MBT 5722 temperature sensor with terminal box, Pt 100, 7 m cable
084Z6116
Danfoss
Danfoss MBT 5722 temperature sensor with terminal box, Pt 100, 5 m cable
084Z6117
Danfoss
Danfoss MBT 5722 temperature sensor with terminal box, Pt 100, 6 m cable
084Z6136
Danfoss

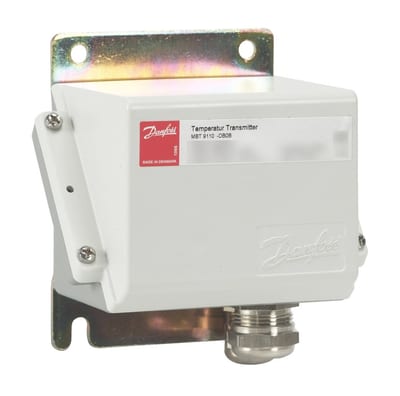

Danfoss MBT 9110 temperature transmitter, Pt 100 to 4-20 mA, range 0 to +600 C (+32 to +1112 F)
