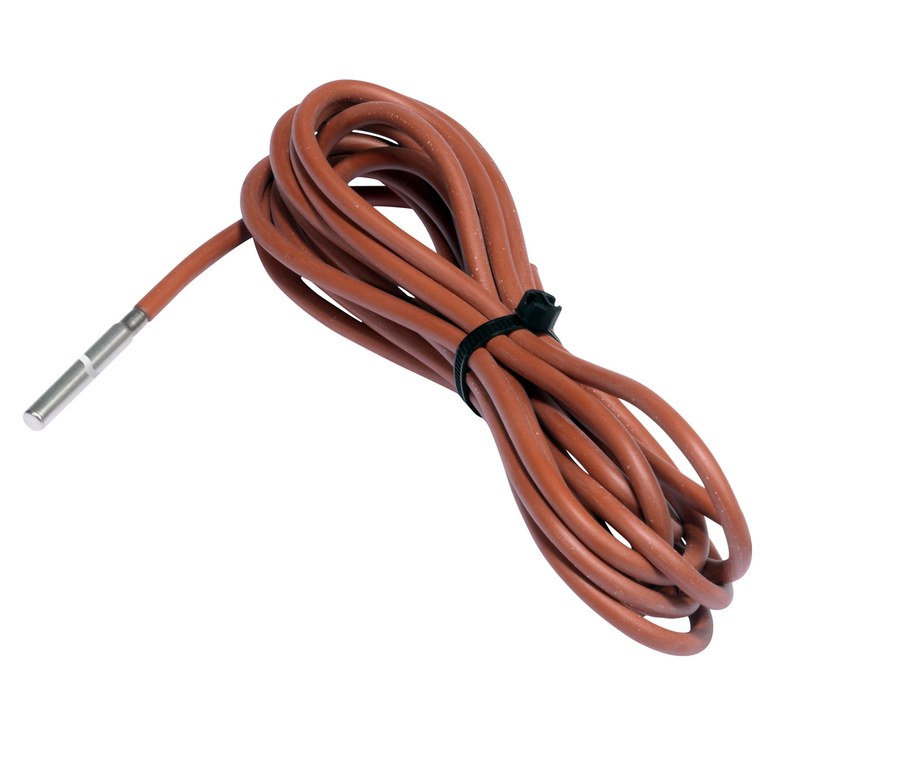

Danfoss MBT 153 flexible cable temperature sensor, Pt 100, 5.5 m silicone cable, 4-Wire
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 153 flexible cable temperature sensor, code 084Z6042 (type designation MBT 153-2002-0550). Cable-style RTD with an AISI 305 stainless-steel measuring tip (6 mm diameter) and an integral silicone cable; designed to be fitted into an MBT 120 sensor pocket so the element can be exchanged without draining the system. Standardized Pt 100 platinum element, Class B tolerance per EN 60751, 4-wire connection. Cable length 5.5 m. Measuring range -50 to +200 C (-58 to +392 F). Resistance (ohm) output. IP68 sealing per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 153 (flexible cable temperature sensor)
- Type designation
- MBT 153-2002-0550
- Code number
- 084Z6042
- Sensor element
- Pt 100 platinum resistance (Class B per EN 60751)
- Cable connection
- 4-wire
- Cable length
- 5.5 m
- Cable type
- silicone
- Measuring tip
- AISI 305 stainless steel, 6 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Enclosure rating
- IP68 per IEC 60529
- Packing quantity
- 30 pc
- Net weight
- 0.175 kg
- Approvals
- CE
- EAN
- 5702423153428
- Product group
- Sensors
- Approval
- CE
- Cable length [in]
- 217 in
- Cable length [m]
- 5.5 m
- Cable tempr. range [°C] [max]
- 200 °C
- Cable tempr. range [°C] [min]
- -60 °C
- Cable tempr. range [°F] [max]
- 392 °F
- Cable tempr. range [°F] [min]
- -76 °F
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Cable
- Electrical connection size
- 4 wire
- Enclosure rating IP
- IP68
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion type
- Variable
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 305
- REACH Candidate List substances
- No
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 4 pc
Standards & Compliance
- Size / Series
- 5.5 m cable
- Material
- AISI 305 stainless steel
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP68
- HS Code
- 9025.19
Compatibility & Fitment
MBT 153 cable sensor. Fit into an MBT 120 sensor pocket for exchangeable service. Confirm cable length (5.5 m), element (Pt 100) and 4-wire wiring match the controller input.
