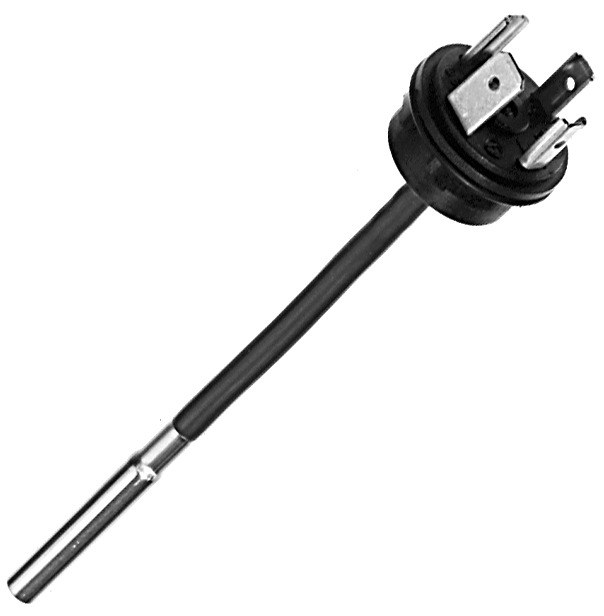

Danfoss MBT 150 exchangeable temperature sensor insert, Pt 100 100 ohm, 120 mm, angular connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 150 exchangeable measuring insert, code 084Z6011 (type designation MBT 150-000-120-0). Replaceable RTD element assembly for MBT sensor pockets/thermowells, allowing the sensing element to be renewed without breaking the process seal. Standardized Pt 100 platinum element (100 ohm at 0 C), Class B per EN 60751. Stainless-steel measuring tube 6 mm diameter; insert length 120 mm. Angular plug connection to EN 175301-803-A (4-pin, formerly DIN 43650). Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Enclosure IP00 (the insert is protected by the host pocket/head). CE marked.
Technical Specifications
- Type
- MBT 150 (exchangeable measuring insert)
- Type designation
- MBT 150-000-120-0
- Code number
- 084Z6011
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insert length
- 120 mm
- Measuring tube
- stainless steel, 6 mm diameter
- Electrical connection
- angular connector EN 175301-803-A, 4-pin
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Enclosure rating
- IP00 (insert; sealed by host pocket/head)
- Packing quantity
- 10 pc
- Net weight
- 0.014 kg
- Approvals
- CE
- EAN
- 5702423125364
- Product group
- Accessories, sensors
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 4 pin
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP00
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 1.97 in
- Extension length [mm]
- 50 mm
- In scope of WEEE
- Yes
- Insertion length [in]
- 4.72 in
- Insertion length [mm]
- 120 mm
- Insertion type
- Fixed
- Number of terminals [pcs]
- 3 pc
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Used for product
- MBT 5250
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 120 mm insert length
- Material
- AISI 316 Ti stainless steel
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP00
- HS Code
- 9025.90
Compatibility & Fitment
MBT 150 measuring insert. Confirm insert length (120 mm) matches the host MBT sensor pocket/thermowell and that the controller accepts a Pt 100 resistance input via the EN 175301-803-A angular connector.
