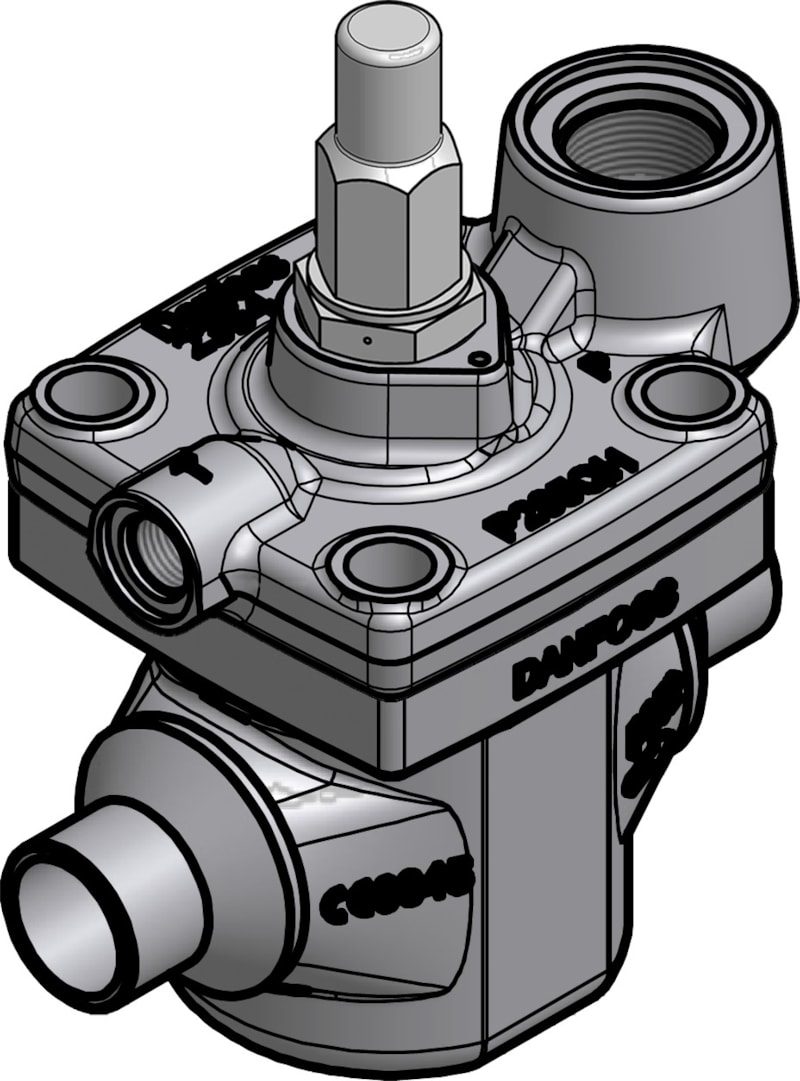

Danfoss ICS1 32 pilot-operated servo valve, butt weld DN32 (1¼ in), EN 10220, steel, Kv 17 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICS1 32 pilot-operated servo main valve (code 027H3144) for industrial refrigeration. Straightway steel body with butt-weld connections both ends, 1¼ in / 32 mm to EN 10220; flow coefficient Kv 17 m³/h (Cv 20 gal/min). The ICS 1 main valve carries a single pilot function module on its top cover, setting one control function (constant pressure, solenoid on/off, differential-pressure or other pilot, ordered separately). Maximum working pressure 65 bar (943 psig); media temperature -60 to +120 °C (-76 to 248 °F). Suitable for R717 (ammonia), R744 (CO₂), HFC and hydrocarbon refrigerants. Specifications per Danfoss store code 027H3144.
Technical Specifications
- Type
- ICS1 32 pilot-operated servo valve
- Code number
- 027H3144
- Size
- 32 mm (1¼ in)
- Direction
- Straightway
- Inlet/outlet connection
- Butt weld, steel, EN 10220
- Inlet/outlet connection size
- 1¼ in / 32 mm
- Kv value
- 17 m³/h (Cv 20 gal/min)
- Body material
- Steel
- Connection material
- Steel
- Surface coating
- Zn (TLP)
- Valve operation
- Pilot operated (single pilot function module on top cover)
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 °C (-76 to 248 °F)
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R410A, R22, R290, R32, R1234ze(E) and other listed refrigerants
- PED category
- II
- Approvals
- EAC (LLC CDC TYSK), TÜV, UL
- Compliance
- EU RoHS, China RoHS
- EAN
- 5715162688649
- Nominal diameter
- DN32
- Net weight
- 5.258 Kilogram
- Product group
- Press. and temp. regul. valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection standard
- EN 10220
- Cv value [gal/min]
- 20 gal/min
- EU RoHS compliance
- Yes
- Ext pilot pressure connection
- Weld nipple (P2 Port)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/4 in
- Inlet connection size [mm]
- 32 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 17 m³/h
- Manual operation option
- Manual open spindle
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Opening configuration
- Full open by external hot gas
- Outlet connection size [in]
- 1 1/4 in
- Outlet connection size [mm]
- 32 mm
- Outlet connection type
- Butt weld
- Pressure gauge connection
- Int. thread with blind plug
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Top cover
- 1 function module
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 32 mm (1¼ in)
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss ICS 1 single-pilot servo main valve. Function is set by the pilot module fitted to the top cover. Butt-weld, socket-weld and solder variants of the same cone are separate codes; the DN32 ICS 1/ICS 3 servo valves carry PED category II and TÜV certification. Verify Kv, pilot configuration and refrigerant duty before ordering.
