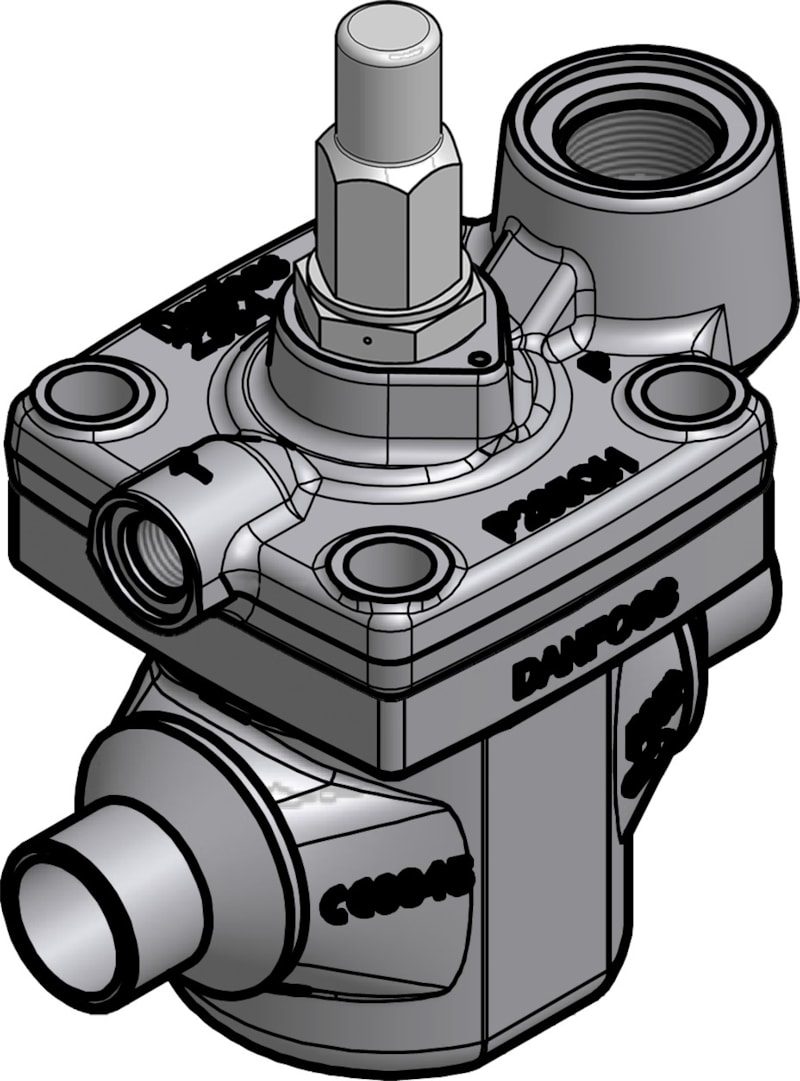

Danfoss ICS1 65 pilot-operated servo valve, butt weld 2½ in (65 mm), EN 10220, steel, Kv 70 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICS1 65 pilot-operated servo main valve (code 027H6144) for industrial refrigeration. Straightway steel body with butt-weld connections both ends, 2½ in / 65 mm to EN 10220; flow coefficient Kv 70 m³/h (Cv 81.2 gal/min). The ICS 1 main valve carries a single pilot function module on its top cover; opening configuration full open by external hot gas with a manual open spindle. Maximum working pressure 65 bar (943 psig); media temperature -60 to +120 °C (-76 to 248 °F). Suitable for R717 (ammonia), R744 (CO₂), HFC and hydrocarbon refrigerants. Specifications per Danfoss store code 027H6144.
Technical Specifications
- Type
- ICS1 65 pilot-operated servo valve
- Code number
- 027H6144
- Size
- 65 mm (2½ in)
- Direction
- Straightway
- Inlet/outlet connection
- Butt weld, steel, EN 10220
- Inlet/outlet connection size
- 2½ in / 65 mm
- Kv value
- 70 m³/h (Cv 81.2 gal/min)
- Body material
- Steel
- Connection material
- Steel
- Surface coating
- Zn (TLP)
- Valve operation
- Pilot operated (single pilot function module on top cover)
- Opening configuration
- Full open by external hot gas
- Manual operation
- Manual open spindle
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 °C (-76 to 248 °F)
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R410A and other listed refrigerants
- PED category
- II
- Approvals
- EAC, TÜV, UL
- Compliance
- EU RoHS, China RoHS
- EAN
- 5715162688670
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 65 mm (2½ in)
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss ICS 1 single-pilot servo main valve. Manual open spindle allows forced opening during service. Verify Kv, pilot configuration and refrigerant duty before ordering.
