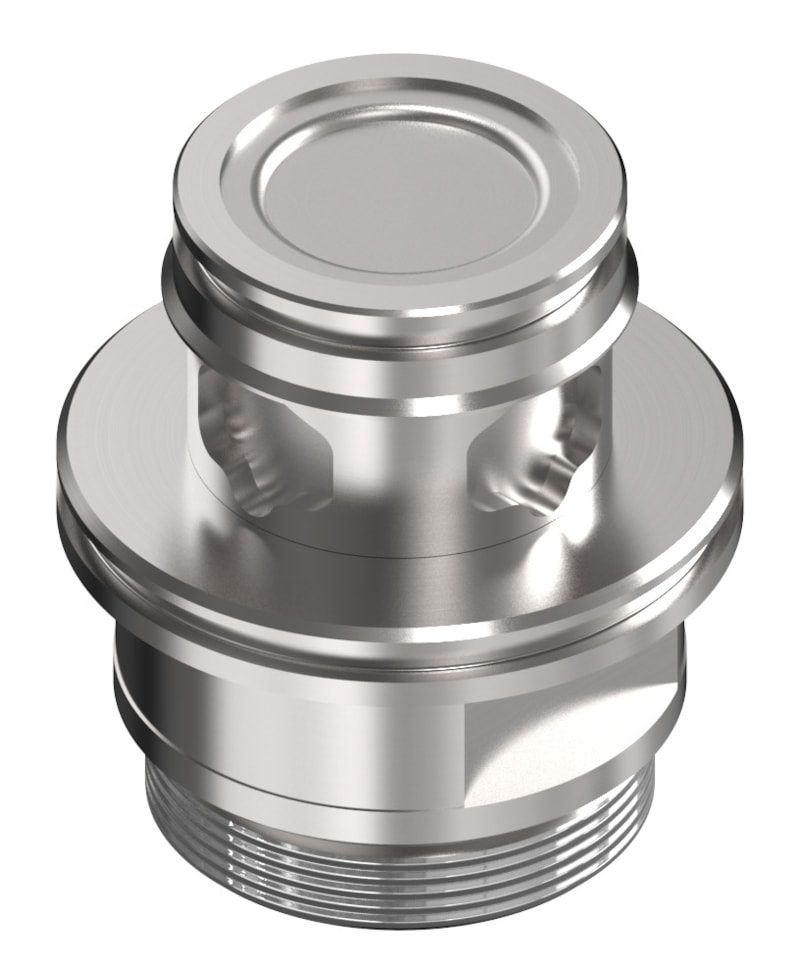

Danfoss ICC 32 function module for ICV 32 valve, Kv 17 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICC 32 function module (code 027H3039) — the interchangeable control cartridge that fits an ICV 32 multifunction valve body to give it its operating function. Flow coefficient Kv 17 m³/h (Cv 20 gal/min). Together with the ICV 32 body and top cover it forms a complete pilot- or motor-operated refrigeration valve. Suitable for R717 (ammonia) and other listed refrigerants. Specifications per Danfoss store code 027H3039.
Technical Specifications
- Type
- ICC 32 function module
- Code number
- 027H3039
- Used for product
- ICV 32
- Kv value
- 17 m³/h (Cv 20 gal/min)
- Product group
- Pressure and temperature regulating valves (function module)
- Refrigerants
- R717 (ammonia) and other listed refrigerants
- Compliance
- EU RoHS, China RoHS
- EAN
- 5715162143827
- Cv value
- 20.000 gal/min
- REACH candidate-list substances
- No
- Net weight
- 0.7 kg
- EU RoHS compliance
- Yes
- China RoHS compliance
- Yes
- Cv value [gal/min]
- 20 gal/min
- Kv value [m³/h]
- 17 m³/h
Standards & Compliance
- Size / Series
- 32 mm (1¼ in)
- Material
- Steel
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss ICV Flexline function module (ICC 32) — a service/build part, not a stand-alone valve. Fits the ICV 32 body only. Confirm the required function (constant pressure, differential, solenoid, etc.) and the matching top cover before ordering.
