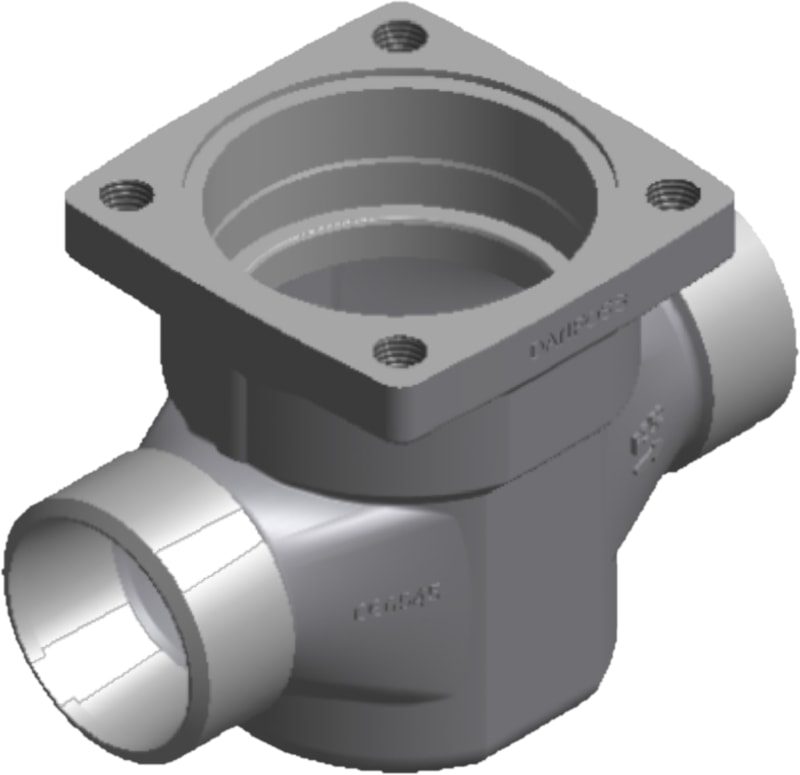

Danfoss ICV 50 multifunction valve body, ODS solder 2 in (50 mm), ASME B 16.11, steel (code 027H5130)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICV 50 multifunction valve body (code 027H5130) — the bare housing of the ICV Flexline modular valve platform. Straightway steel body with ODS (outer-diameter solder) connections, 2 in / 50 mm, to ASME B 16.11. The ICV body is completed with an ICM motor-operated top, an ICS servo/pilot top or an ICLX external-pilot top and its function module(s), all ordered separately, to form ICM 50, ICS 50 or ICLX 50 valves. Maximum working pressure 52 bar (754 psig); media temperature -60 to +120 °C (-76 to 248 °F). Specifications per Danfoss store code 027H5130.
Specifications
- Part number
- 027H5130
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to +120 °C
- Standard
- ASME B 16.11
- Standard size
- 50 mm (2 in)
Compatibility
Danfoss ICV Flexline body only — the top module (ICM motor / ICS servo / ICLX) and pilot/function modules are separate codes. Select the body by connection type and size (ODS 2 in ASME B 16.11), then add the top for the required function. Verify connection dimension against your pipework.
