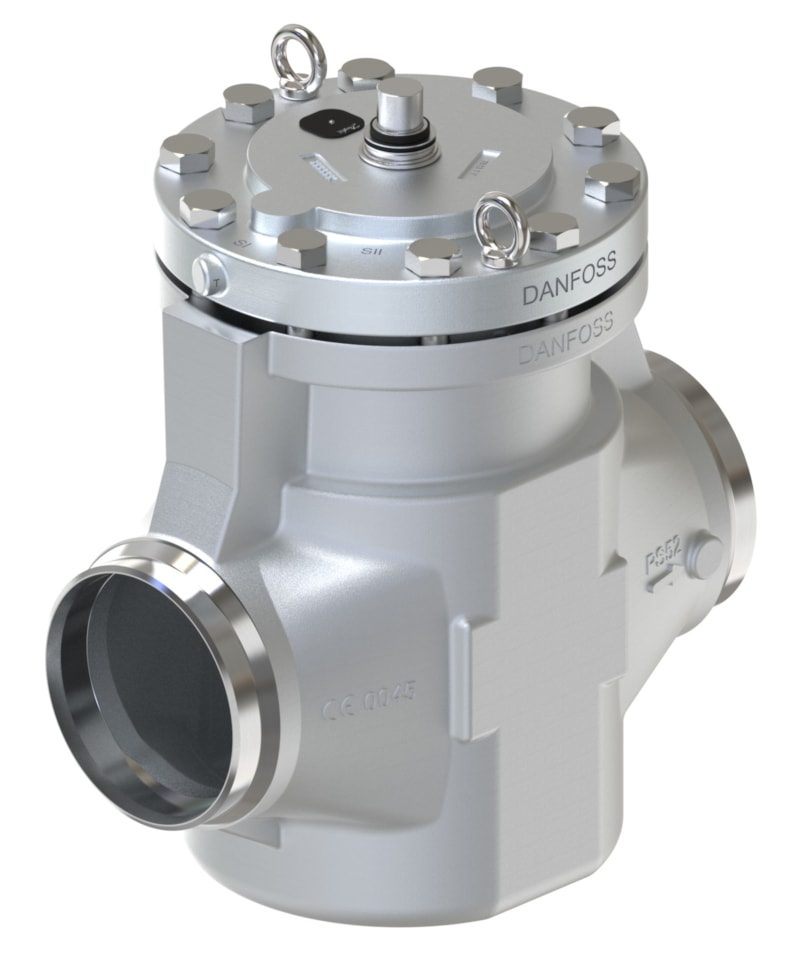

Danfoss ICM 100 motor-operated valve, butt weld 4 in (100 mm), EN 10220, steel, Kv 142 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICM 100 motor-operated control valve (code 027H7130) for industrial refrigeration. Straightway steel body with butt-weld connections both ends, 4 in / 100 mm to EN 10220; flow coefficient Kv 142 m³/h (Cv 164.72 gal/min). Motorised control with approximately 25-second full open/close travel, driven by an ICAD actuator (ordered separately). Maximum working pressure 52 bar (754 psig); media temperature -60 to +120 °C (-76 to 248 °F). Suitable for R717 (ammonia), R744 (CO₂), HFC and hydrocarbon refrigerants. Specifications per Danfoss store code 027H7130.
Technical Specifications
- Type
- ICM 100 motor-operated valve
- Code number
- 027H7130
- Size
- 100 mm (4 in)
- Direction
- Straightway
- Inlet/outlet connection
- Butt weld, steel, EN 10220
- Inlet/outlet connection size
- 4 in / 100 mm
- Kv value
- 142 m³/h (Cv 164.72 gal/min)
- Body material
- Steel
- Connection material
- Steel
- Surface coating
- Zn (TLP)
- Valve operation
- Motor operated (ICAD actuator, ordered separately)
- Opening/closing time
- approx. 25 s
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 °C (-76 to 248 °F)
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R410A, R22, R1234yf, R1234ze(E) and other listed refrigerants
- Approvals
- CE 0045, EAC, TÜV, UL
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702428229746
- Net weight
- 46.66 Kilogram
- Product group
- Press. and temp. regul. valves
- Actuator system
- ICAD motor, magnet coupling
- Approval
- CE 0045
- China RoHS compliance
- Yes
- Comments
- ICV 100 DIN
- Connection Code
- (2001:D36:100)
- Connection standard
- EN 10220
- Cv value [gal/min]
- 164.72 gal/min
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 4 in
- Inlet connection size [mm]
- 100 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 142 m³/h
- Lubricants compatibility
- Oilfree applications
- Manual operation option
- Via ICAD setting
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- MaxOPD [bar]
- 20 bar
- MaxOPD [psig]
- 271 psig
- Oil free refrigerants
- R1234ze(E)
- Open/close time [s]
- 25 s
- Outlet connection size [in]
- 4 in
- Outlet connection size [mm]
- 100 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 100 mm (4 in)
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss ICM motor-operated control valve; the ICAD 600 / 900 stepper actuator and its cable are ordered separately. ICM valves provide modulating or on/off control from a refrigeration controller. Verify Kv, actuator size and refrigerant duty before ordering.
