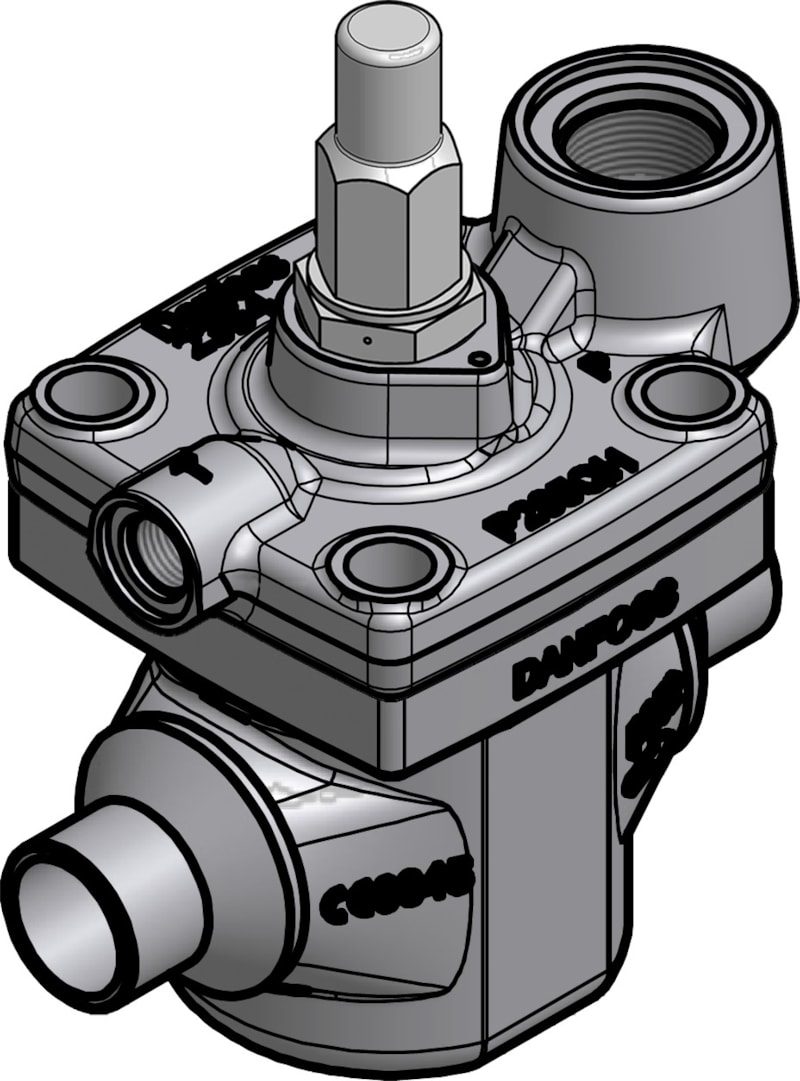

Danfoss ICS1 40 pilot-operated servo valve, butt weld DN40 (1½ in), EN 10220, steel, Kv 27 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICS1 40 pilot-operated servo main valve (code 027H4144) for industrial refrigeration. Straightway steel body with butt-weld connections both ends, 1½ in / 40 mm to EN 10220; flow coefficient Kv 27 m³/h (Cv 31 gal/min). The ICS 1 main valve carries a single pilot function module on its top cover; opening configuration full open by external hot gas. Maximum working pressure 65 bar (943 psig); media temperature -60 to +120 °C (-76 to 248 °F). Suitable for R717 (ammonia), R744 (CO₂), HFC and hydrocarbon refrigerants. Specifications per Danfoss store code 027H4144.
Technical Specifications
- Type
- ICS1 40 pilot-operated servo valve
- Code number
- 027H4144
- Size
- 40 mm (1½ in)
- Direction
- Straightway
- Inlet/outlet connection
- Butt weld, steel, EN 10220
- Inlet/outlet connection size
- 1½ in / 40 mm
- Kv value
- 27 m³/h (Cv 31 gal/min)
- Body material
- Steel
- Connection material
- Steel
- Surface coating
- Zn (TLP)
- Valve operation
- Pilot operated (single pilot function module on top cover)
- Opening configuration
- Full open by external hot gas
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 °C (-76 to 248 °F)
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R410A, R290, R1234yf, R1234ze(E) and other listed refrigerants
- PED category
- II
- Approvals
- EAC (LLC CDC TYSK), TÜV, UL
- Compliance
- EU RoHS, China RoHS
- EAN
- 5715162688656
- Nominal diameter
- DN40
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 40 mm (1½ in)
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss ICS 1 single-pilot servo main valve. Function is set by the pilot module fitted to the top cover. Serviceable spare parts available separately. Verify Kv, pilot configuration and refrigerant duty before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICS1 50 pilot-operated servo valve, butt weld 2 in (50 mm), EN 10220, steel, Kv 44 m³/h
027H5144
Danfoss
Danfoss ICS1 65 pilot-operated servo valve, butt weld 2½ in (65 mm), EN 10220, steel, Kv 70 m³/h
027H6144
Danfoss
Danfoss ICS 100 pilot-operated servo valve, butt weld 4 in (100 mm), ASME B 36.10M Sch 40, steel, Kv 142 m³/h
027H7121
Danfoss

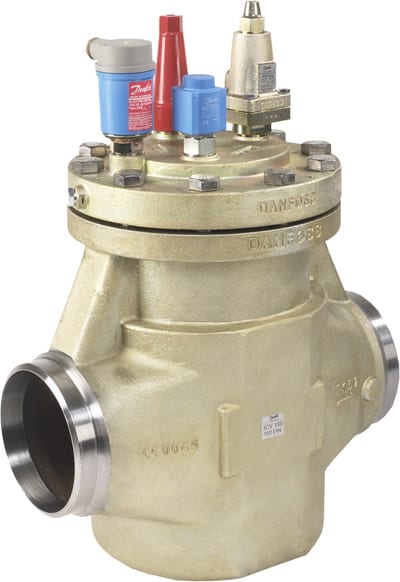

Danfoss ICS 125 pilot-operated servo valve, butt weld 5 in (125 mm), ASME B 36.10M Sch 40, steel, Kv 207 m³/h
027H7141
Danfoss

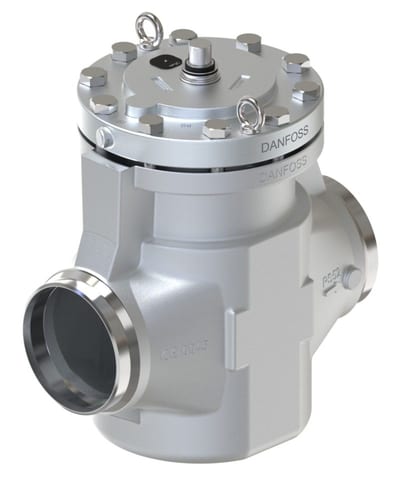

Danfoss ICM 100 motor-operated valve, butt weld 4 in (100 mm), EN 10220, steel, Kv 142 m³/h
027H7130
Danfoss

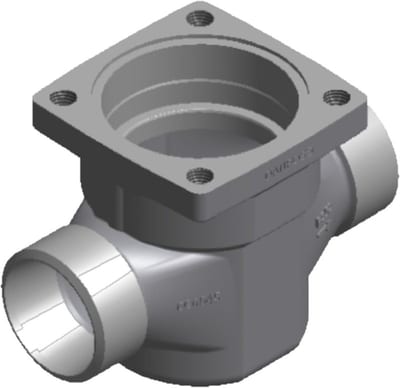

Danfoss ICV 50 multifunction valve body, ODS solder 2 in (50 mm), ASME B 16.11, steel
027H5130
Danfoss

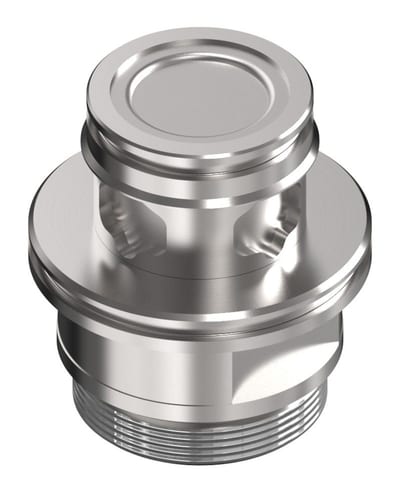

Danfoss ICC 32 function module for ICV 32 valve, Kv 17 m³/h
