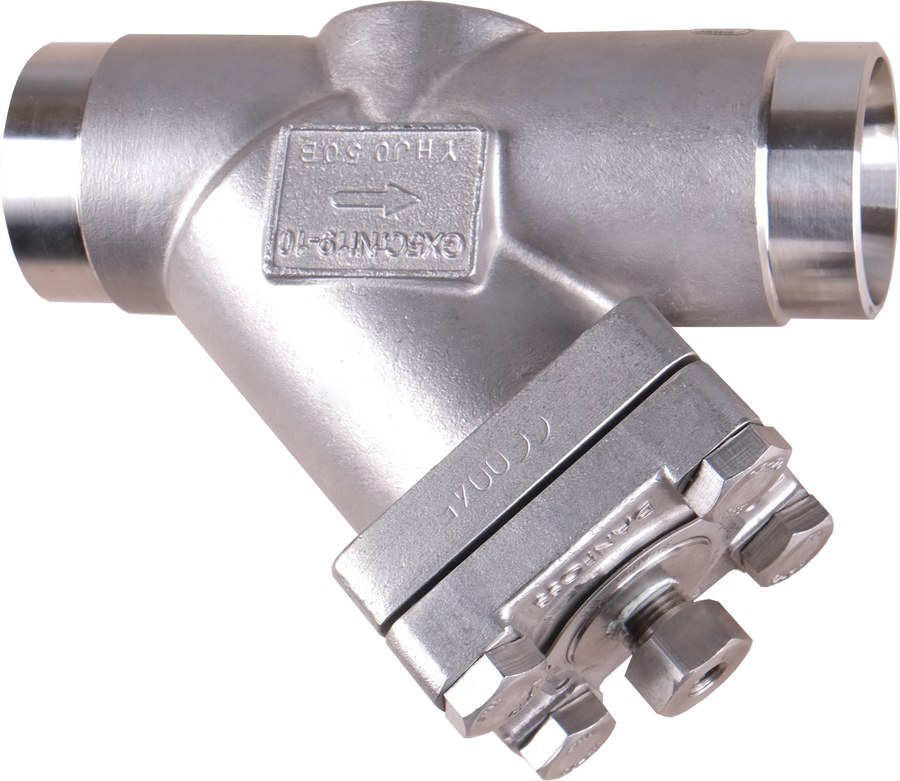

Danfoss FIA SS 25 straightway strainer housing, 25 mm (1 in) butt weld EN 10220, stainless steel, 52 bar

Danfoss FIA SS 25 strainer housing for the SVL Flexline industrial-refrigeration range, store code 148B5493. Stainless-steel straightway body with butt-weld connections both ends to EN 10220 and a bolt-on cover. The FIA is an in-line strainer that protects downstream valves, pumps and compressors from pipe scale and weld debris; this is the pressure-containing housing (with cover) that takes a replaceable FIA INS strainer insert — available 100, 150, 250 and 500 micron, plain (ordered separately). Stainless construction suits corrosive and hygienic duties on R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 25 mm (1 in); flow coefficient Kv 10.5 (µ100 plain) to 11.6 m3/h (µ500 plain). Maximum working pressure 52 bar (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED Article 4, paragraph 3 (sound engineering practice) for DN <= 25. Specifications per Danfoss store code 148B5493.

Type

FIA SS 25 strainer housing (SVL Flexline), with cover

Code number

148B5493

Nominal size

25 mm (1 in)

Flow direction body

Straightway

Connection

butt weld both ends, EN 10220

Body material

Stainless steel

Strainer inserts (ordered separately)

100 / 150 / 250 / 500 micron, plain

Flow coefficient

Kv 10.5 (µ100 plain) to 11.6 m3/h (µ500 plain)

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Applicable media

R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils

Conformity assessment

PED Article 4, paragraph 3 (sound engineering practice) for DN <= 25

EAN

5702428841955

Net weight

2.702 Kilogram

Product group

Strainers

China RoHS compliance

Yes

Colour Paint

Reddish brown

Connection Code

(2501:D26:25)

Connection material

Stainless steel

Connection standard

EN 10220

Cv value [gal/min] 100 plain

47.11 gal/min

Cv value [gal/min] 100 pleated

60.76 gal/min

Cv value [gal/min] 150 plain

46.23 gal/min

Cv value [gal/min] 38 plain

51.07 gal/min

Cv value [gal/min] 72 plain

48.87 gal/min

Cv value [gal/min] 72 pleated

63.84 gal/min

Direction

Straightway

Equipment

Cover

EU RoHS compliance

Yes

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Inlet connection size [in]

1 in

Inlet connection size [mm]

25 mm

Inlet connection type

Butt weld

Kv value [m3/h] µ100 plain

10.5 m³/h

Kv value [m3/h] µ150 plain

10.7 m³/h

Kv value [m3/h] µ150 pleated

13.8 m³/h

Kv value [m3/h] µ250 plain

11.1 m³/h

Kv value [m3/h] µ250 pleated

14.5 m³/h

Kv value [m3/h] µ500 plain

11.6 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Outlet connection size [in]

1 in

Outlet connection size [mm]

25 mm

Outlet connection type

Butt weld

PED category

Art. 4, par. 3

REACH Candidate List substances

No

Refrigerants

R113

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F

Valve version

Standard version

Standard

EN 10220

Size / Series

25 mm

Material

Stainless steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8421.39
