Danfoss FIA 80 straightway strainer housing, 80 mm (3 in) butt weld ASME B 36.10M Schedule 40, steel, 52 bar

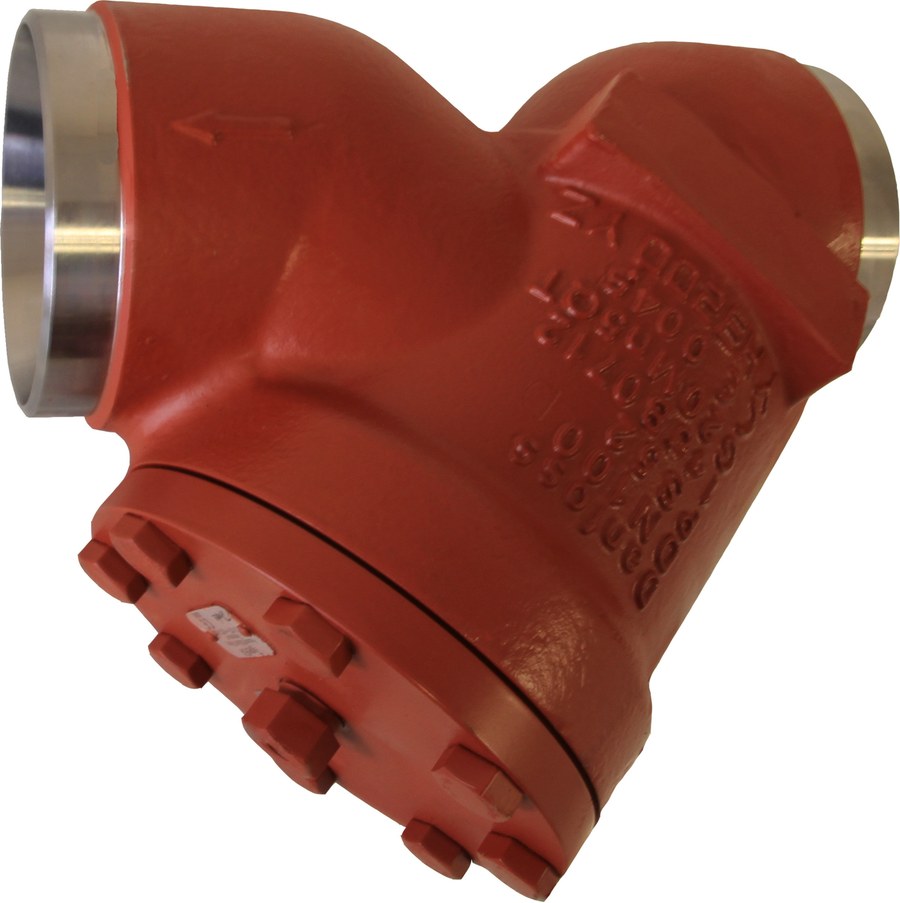

Danfoss FIA 80 strainer housing for the SVL Flexline industrial-refrigeration range, store code 148B5908. Steel straightway body with butt-weld connections both ends to ASME B 36.10M Schedule 40 and a bolt-on cover. The FIA is an in-line strainer that protects downstream valves, pumps and compressors from pipe scale and weld debris; this is the pressure-containing housing (with cover) that takes a replaceable FIA INS strainer insert — available 150, 250 and 500 micron, plain or pleated (ordered separately). Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 80 mm (3 in); flow coefficient Kv 80.0 (µ150 plain) to 113.1 m3/h (µ500 pleated). Maximum working pressure 52 bar (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5908.

Type

FIA 80 strainer housing (SVL Flexline), with cover

Code number

148B5908

Nominal size

80 mm (3 in)

Flow direction body

Straightway

Connection

butt weld both ends, ASME B 36.10M Schedule 40

Body material

Steel

Strainer inserts (ordered separately)

150 / 250 / 500 micron, plain or pleated

Flow coefficient

Kv 80.0 (µ150 plain) / 104.6 (µ150 pleated) / 82.6 (µ250 plain) / 108.0 (µ250 pleated) / 86.5 (µ500 plain) / 113.1 m3/h (µ500 pleated)

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Applicable media

R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils

Conformity assessment

PED 2014/68/EU, Category II

Approvals

CE

EAN

5702428476362

Net weight

7.6 Kilogram

Product group

Strainers

Approval

CE

CE mark

Yes

China RoHS compliance

Yes

Colour Paint

Reddish brown

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 40

Cv value [gal/min] 100 plain

352.23 gal/min

Cv value [gal/min] 100 pleated

460.54 gal/min

Cv value [gal/min] 38 plain

380.85 gal/min

Cv value [gal/min] 38 pleated

497.96 gal/min

Cv value [gal/min] 72 plain

363.68 gal/min

Cv value [gal/min] 72 pleated

475.51 gal/min

Direction

Straightway

Equipment

Cover

EU RoHS compliance

Yes

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Inlet connection size [in]

3 in

Inlet connection size [mm]

80 mm

Inlet connection type

Butt weld

Kv value [m3/h] µ150 plain

80 m³/h

Kv value [m3/h] µ150 pleated

104.6 m³/h

Kv value [m3/h] µ250 plain

82.6 m³/h

Kv value [m3/h] µ250 pleated

108 m³/h

Kv value [m3/h] µ500 plain

86.5 m³/h

Kv value [m3/h] µ500 pleated

113.1 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Outlet connection size [in]

3 in

Outlet connection size [mm]

80 mm

Outlet connection type

Butt weld

PED category

II

REACH Candidate List substances

No

Refrigerants

R113

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F

Valve version

Standard version

Standard

ASME B 36.10M Schedule 40

Size / Series

80 mm

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8421.39
