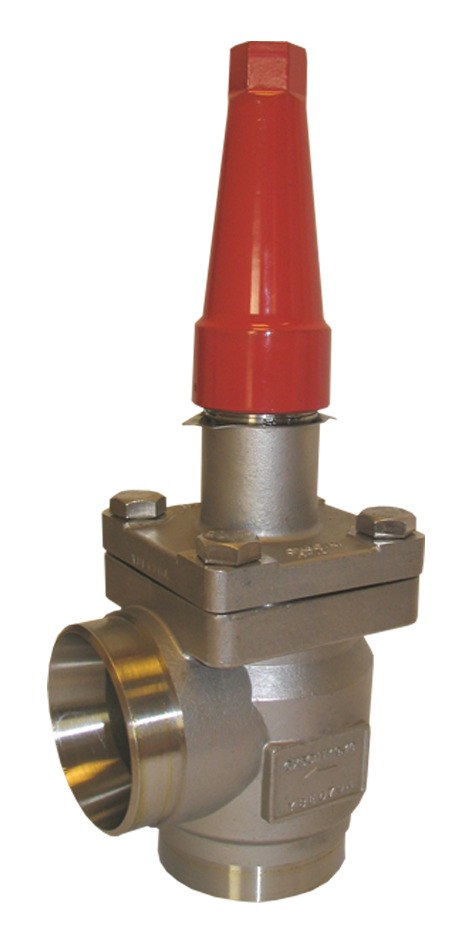

Danfoss SVA-S SS 80 angleway shut-off (stop) valve, 80 mm (3 in) butt weld ASME B 36.19M Schedule 10, cap, stainless steel, 50 bar

Danfoss SVA-S SS 80 angleway shut-off (stop) valve for industrial-refrigeration line service, code 148B5928. Size 3 in (80 mm), stainless-steel Flexline body with butt weld inlet and outlet to ASME B 36.19M Schedule 10 (also EN 10220). Stainless construction suits corrosive and hygienic duties on ammonia (R717), CO2 (R744) and HFC/HCFC refrigerants. Maximum working pressure 50 bar (725 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 182 m3/h (Cv 211.12 gal/min). Angleway body places inlet and outlet at 90 degrees. This is the cap-closed variant (sealing cap in place of a handwheel) for set-and-seal stop duty. Part of the Danfoss SVL Flexline program; specifications per Danfoss store code 148B5928.

Type

SVA-S SS 80 (shut-off / stop valve), stainless steel

Code number

148B5928

Series

SVL Flexline (SVA-S SS)

Function

Manual shut-off (stop) valve

Nominal size

DN80 — 3 in (80 mm)

Direction

Angleway

Equipment

Cap

Neck

Standard (SVA-S)

Flow direction

Bi-flow

Inlet connection type

Butt weld

Outlet connection type

Butt weld

Connection standard

ASME B 36.19M Schedule 10 (also EN 10220)

Connection size

3 in (80 mm)

Body material

Stainless steel

Connection material

Stainless steel

Maximum working pressure

50 bar (725 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Kv value

182 m3/h

Cv value

211.12 gal/min

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

Conformity assessment

PED 2014/68/EU, Category II

Approvals

CE, EAC

EAN

5702428843409

Standard

ASME B 36.19M Schedule 10

Size / Series

80 mm

Material

Stainless steel

Pressure Rating

50 bar

Temperature Range

-60 to 150 C

HS Code

8481.80
