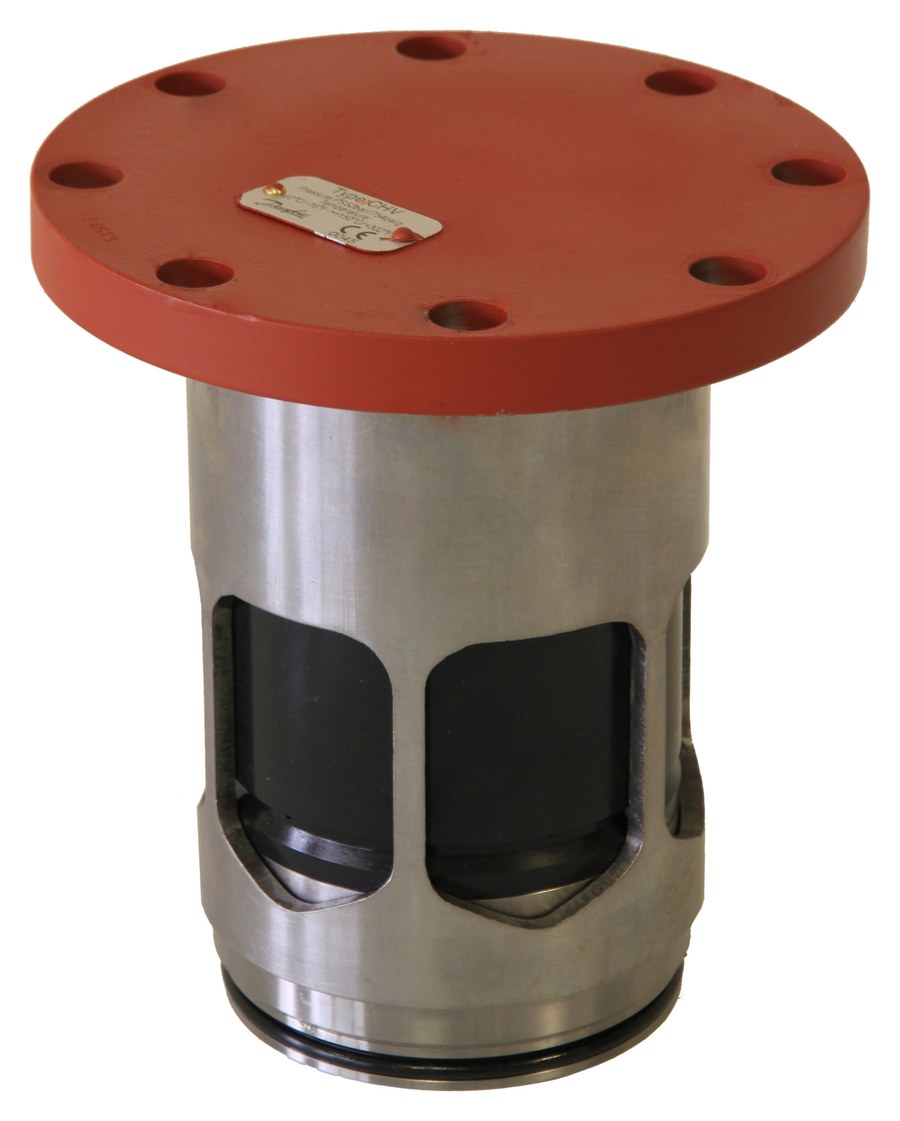

Danfoss CHV-X 80 function module (Top Complete), fits SVL Flexline CHV-X 80 check, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CHV-X 80 function module for the SVL Flexline industrial-refrigeration range, code 148B5919. This is the complete top part (Top Complete) that converts an SVL Flexline multifunction valve body of the 80 mm size band into a check (non-return, top part). It fits the CHV-X 80 bodies and is supplied as a single assembly with gasket and bolts. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); steel/refrigeration-grade internals for HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. This is the 52-bar module; the 65-bar Top Complete module of the same size band is a separate code. Order the matching SVL Flexline valve body separately.
Technical Specifications
- Type
- Function module (Top Complete), CHV-X 80
- Code number
- 148B5919
- Series
- SVL Flexline (CHV-X (Flexline check valves))
- Function
- check (non-return, top part)
- Type designation
- Top Complete
- Product group
- Check valves
- Used for products
- CHV-X 80
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- CE mark
- Yes
- Approvals
- CE
- Packing format
- Single pack (1 pc)
- Net weight
- 3.118 kg
- Gross weight
- 3.744 kg
- EAN
- 5702428486224
- Approval
- CE
- China RoHS compliance
- Yes
- EU RoHS compliance
- Yes
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- CHV-X 80
Standards & Compliance
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline function module (Top Complete) for the CHV-X 80 size band. This is the 52-bar module — the 65-bar Top Complete module of the same size band is a separate code. Order the matching SVL Flexline valve body (housing) separately and confirm size band, series and pressure rating before ordering.
