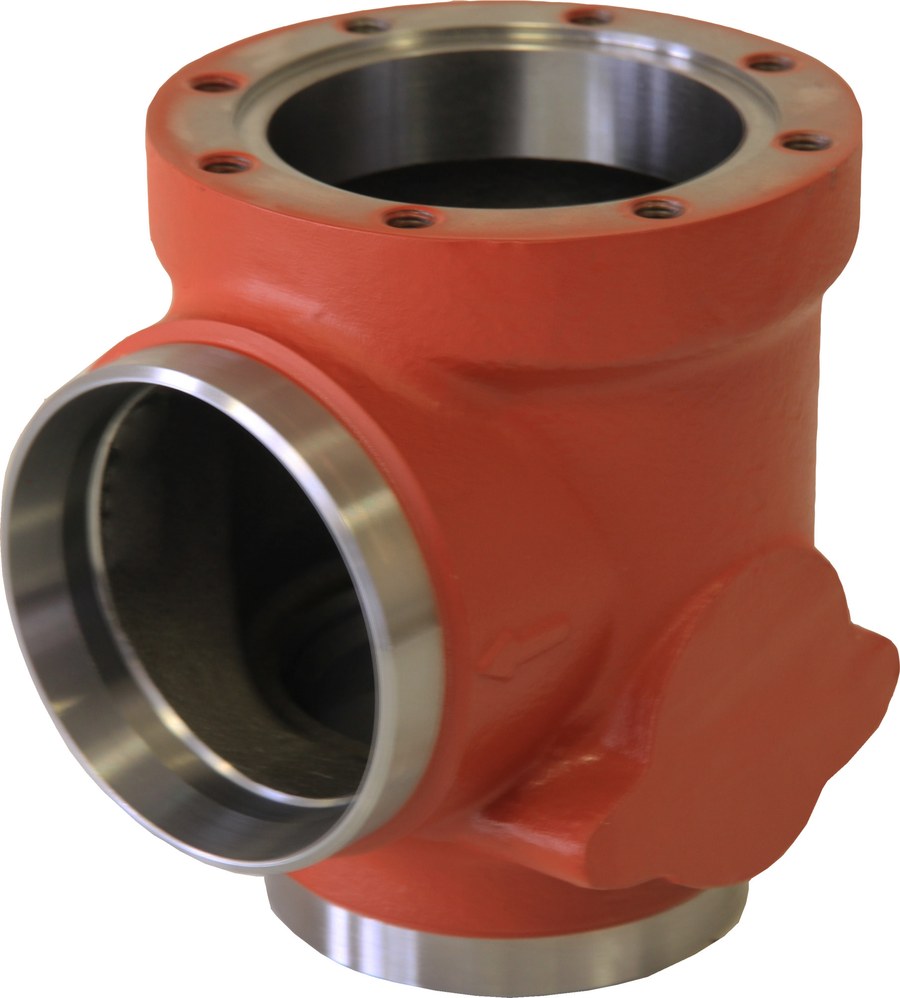

Danfoss SVL Flexline multifunction valve body, SVL 80 angleway butt weld ASME B 36.10M Schedule 40, 80 mm (3 in), 52 bar, steel

Danfoss SVL 80 multifunction valve body for the SVL Flexline industrial-refrigeration range, code 148B5914. This is the bare valve housing (body only, without function module) in a low-temperature steel casting; it is welded permanently into the line and then converted to any SVL Flexline function — shut-off (SVA-S/SVA-L), regulating (REG-SA/REG-SB), check & stop (SCA-X) or check (CHV-X) — by fitting the corresponding function module (complete top part). This SKU is the angleway body with 80 mm (3 in) butt weld connections to ASME B 36.10M Schedule 40 — the ASME Schedule 40 counterpart of the EN 10220 SVL 80 bodies. Bi-flow body; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Steel construction suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Angleway bodies place inlet and outlet at 90 degrees. Order the matching SVL function module separately for the required duty.

Type

Multifunction valve body, SVL 80 (SVL Flexline)

Code number

148B5914

Series

SVL Flexline (multifunction valve body / housing)

Function

Bare valve body — accepts SVA-S/SVA-L, REG-SA/REG-SB, SCA-X or CHV-X function module

Nominal size

DN80 — 3 in (80 mm)

Direction

Angleway

Flow direction

Bi-flow (embossed one-way arrow)

Connection

Butt weld

Connection standard

ASME B 36.10M Schedule 40

Connection size

3 in (80 mm)

Body material

Steel

Connection material

Steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

CE mark

Yes

Approvals

CE

PED category

II

Net weight

4.481 kg

Gross weight

6.594 kg

EAN

5702428485074

Size / Series

3 in (80 mm)

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.90
