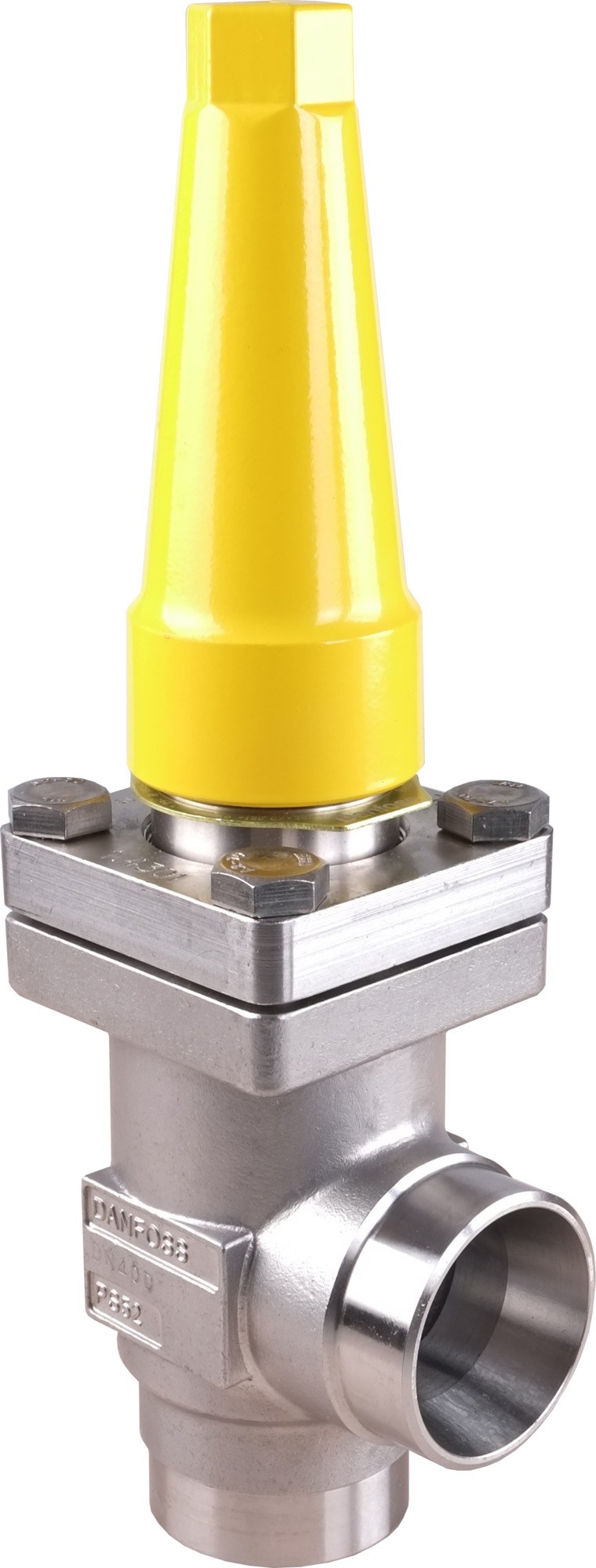

Danfoss REG-SSA SS HL 32 angleway stainless steel hand regulating valve, 1 1/4 in (32 mm) butt weld EN 10220, cap, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss REG-SSA SS HL 32 angleway hand-operated regulating valve for industrial-refrigeration line service, code 148B5946. This is the stainless-steel (SS) long-neck (HL) version of the Flexline regulating valve, size 1 1/4 in (32 mm), with butt-weld inlet and outlet to EN 10220. The stainless body and long neck (extended bonnet, for thicker insulation) give improved corrosion resistance for CO2 (R744) and ammonia (R717) duty. Cap operated; bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 20 m3/h. Angleway body places inlet and outlet at 90 degrees. REG-SSA uses the A-cone (fine regulation).
Technical Specifications
- Type
- REG-SSA SS HL 32 (stainless steel hand-operated regulating valve)
- Code number
- 148B5946
- Series
- REG-SSA SS HL (Flexline stainless regulating valves, long neck)
- Function
- Manual regulating (shut-off and throttling)
- Nominal size
- DN32 — 1 1/4 in (32 mm)
- Direction
- Angleway
- Equipment
- Cap
- Neck
- Long (HL)
- Cone
- A-cone (fine regulation)
- Flow direction
- Bi-flow
- Inlet connection type
- Butt weld
- Outlet connection type
- Butt weld
- Connection standard
- EN 10220
- Connection size
- 1 1/4 in (32 mm)
- Body material
- Stainless steel
- Connection material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 20 m3/h
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Approvals
- CE, EAC (LLC CDC TYSK)
- PED category
- II
- Net weight
- 3.215 kg
- EAN
- 5702424538798
Standards & Compliance
- Size / Series
- 1 1/4 in (32 mm)
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss REG-SSA SS HL Flexline stainless regulating valve (long neck), angleway EN 10220 variant, cap operated. Select by nominal size (1 1/4 in (32 mm)), body direction, cone type (REG-SA A-cone fine / REG-SB B-cone coarse) and operator. The stainless SS body is a separate code from the carbon-steel REG; confirm body material, neck length and pipe connection before ordering.
