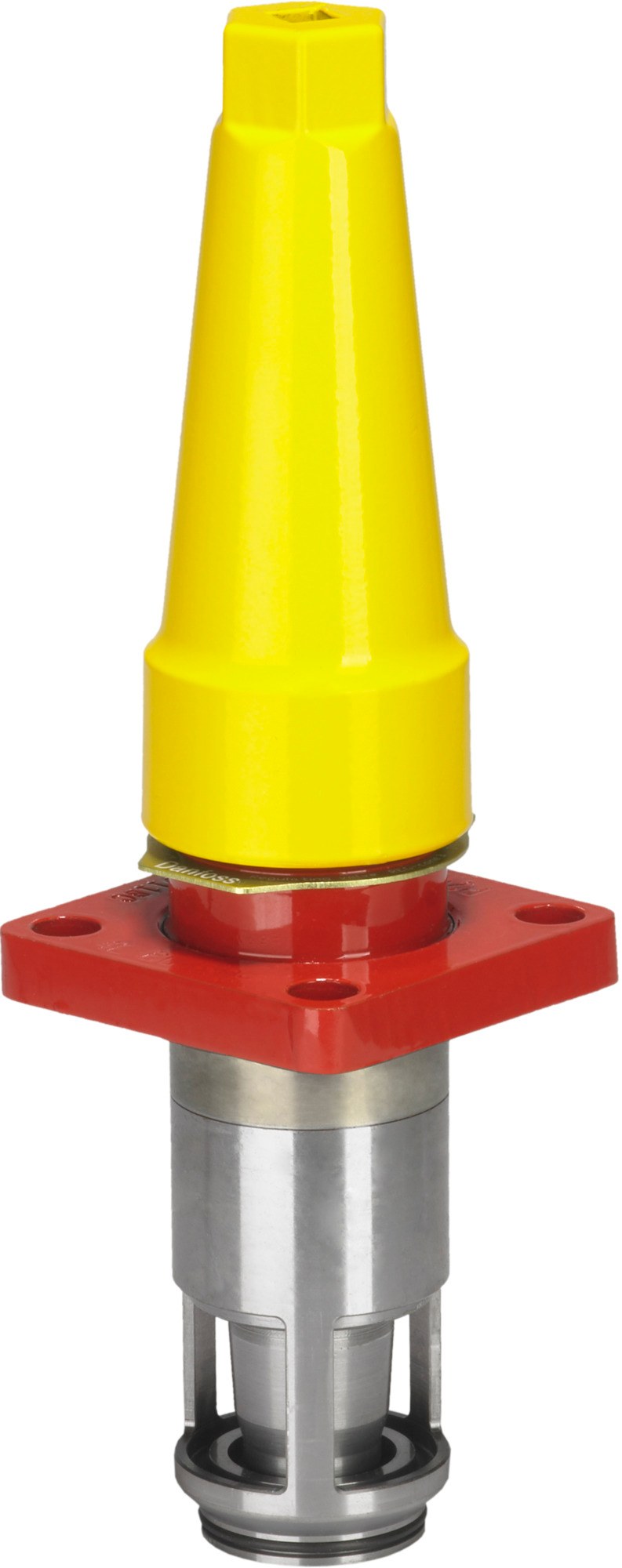

Danfoss REG-SA 15-20 function module (Top Complete), fits SVL Flexline REG-SA 15-20 regulating valve, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss REG-SA 15-20 function module (complete top part) for the SVL Flexline industrial-refrigeration range, code 148B5280. The function module is the field-replaceable working assembly (regulating valve function) that mounts onto an already-welded SVL Flexline valve body of the matching 15-20 mm size band, converting the bare housing into a working REG-SA valve. Supplied as a single pack complete with top part, one gasket and four bolts. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow area 36.5 mm2 (0.056 in2). Servicing the module leaves the welded body and the pipeline undisturbed. Order the matching SVL body separately if not already installed.
Technical Specifications
- Type
- REG-SA 15-20 function module (SVL Flexline)
- Code number
- 148B5280
- Type designation
- Top Complete (complete top part / function module)
- Product group
- Shut-off and regulating valves
- Function
- regulating valve
- Fits valve bodies
- REG-SA 15; REG-SA 20
- Flow area
- 36.5 mm2 (0.056 in2)
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Supplied
- single pack — top part, 1 gasket, 4 bolts
- Approvals
- CE
- EAN
- 5702428485975
- Net weight
- 0.7 Kilogram
- China RoHS compliance
- Yes
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow area [in2]
- 0.056 in²
- Flow area [mm2]
- 36.5 mm²
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- Parts included
- 1 gasket
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- REG-SA 15
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline REG-SA 15-20 function module (Top Complete). Fits SVL Flexline bodies of the 15-20 mm size band (REG-SA 15; REG-SA 20). The module sets the valve duty; the welded body is common across SVL functions of the same size. Confirm the installed body size band before ordering.
