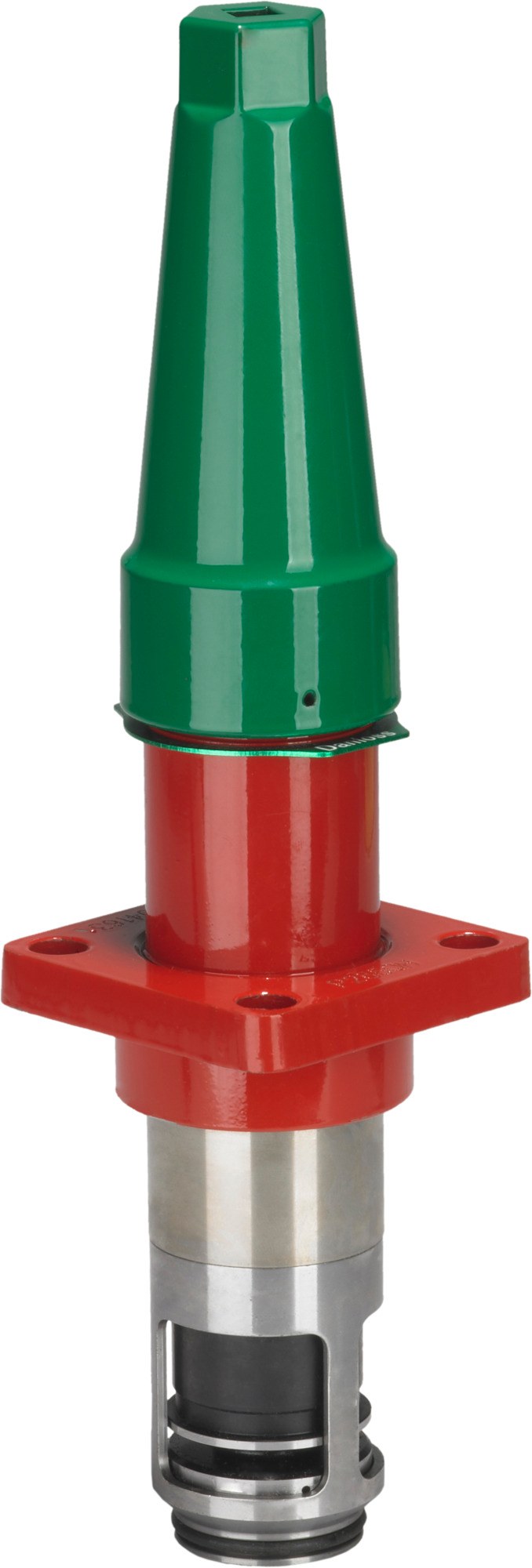

Danfoss SCA-X 15-20 function module (Top Complete), fits SVL Flexline SCA-X 15-20 check & stop valve, 52 bar (code 148B5282)
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss SCA-X 15-20 function module (complete top part) for the SVL Flexline industrial-refrigeration range, code 148B5282. The function module is the field-replaceable working assembly (check & stop valve function) that mounts onto an already-welded SVL Flexline valve body of the matching 15-20 mm size band, converting the bare housing into a working SCA-X valve. Supplied as a single pack complete with top part, one gasket and four bolts. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Servicing the module leaves the welded body and the pipeline undisturbed. Order the matching SVL body separately if not already installed.
Specifications
- Part number
- 148B5282
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
Compatibility
Danfoss SVL Flexline SCA-X 15-20 function module (Top Complete). Fits SVL Flexline bodies of the 15-20 mm size band (SCA-X 15; SCA-X 20). The module sets the valve duty; the welded body is common across SVL functions of the same size. Confirm the installed body size band before ordering.
Approvals
