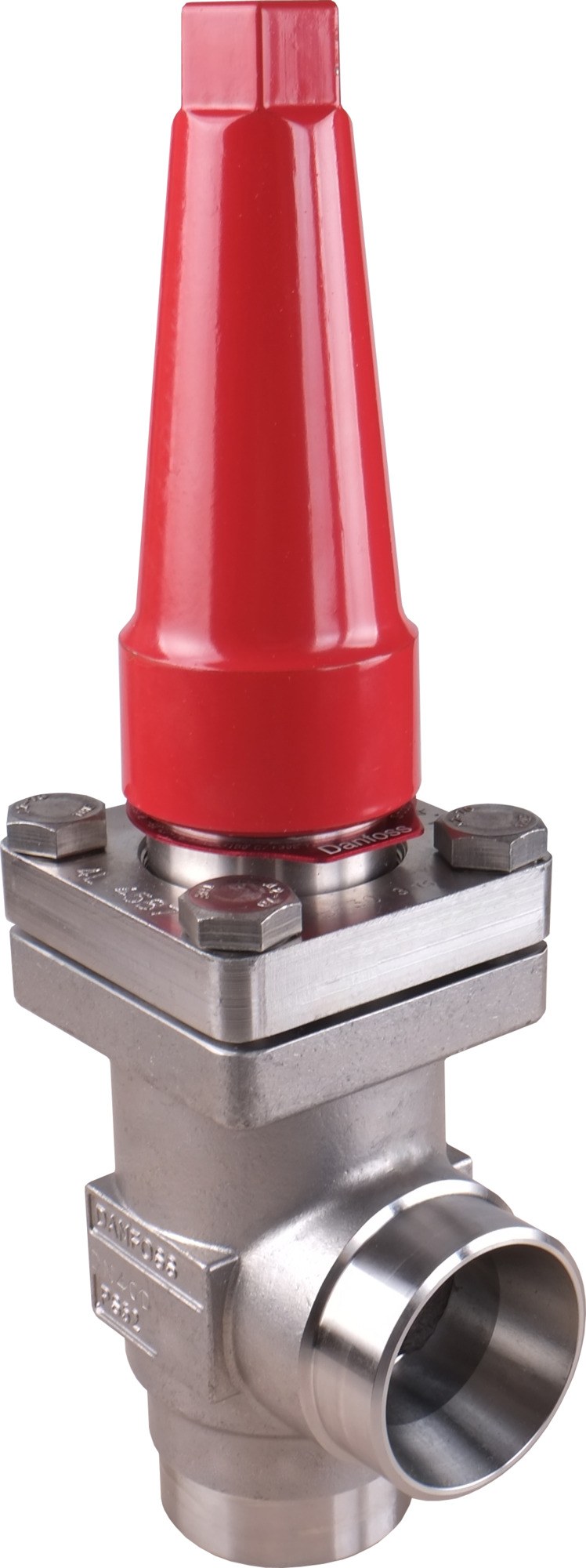

Danfoss SVA-S SS 80 angleway shut-off (stop) valve, butt weld ASME B36.19M Sch 40, cap, 80 mm (3 in), 50 bar, stainless steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S SS 80 angleway shut-off (stop) valve for the SVL Flexline industrial-refrigeration range, code 148B5929. All-stainless-steel body and connections with butt-weld ends to ASME B36.19M Schedule 40, cap-operated. Bi-flow angleway body (inlet and outlet at 90 degrees); Kv 182 m3/h (Cv 211.12 gal/min); maximum working pressure 50 bar (725 psig); media temperature range -60 to 150 C (-76 to 302 F). The stainless SVA-S SS members suit corrosive duty and stainless refrigeration/CO2 pipework where a carbon-steel body is not acceptable. Suits HCFC, HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- Shut-off (stop) valve, SVA-S SS 80 (SVL Flexline)
- Code number
- 148B5929
- Product group
- Shut-off and regulating valves
- Nominal size
- 80 mm (3 in)
- Flow direction
- Angleway, bi-flow
- Connection
- Butt weld
- Connection standard
- ASME B36.19M Schedule 40
- Body material
- Stainless steel
- Connection material
- Stainless steel
- Kv value
- 182 m3/h (Cv 211.12 gal/min)
- Operator
- Cap
- Maximum working pressure
- 50 bar (725 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Fluid groups
- 1, 2
- Conformity assessment
- PED category II
- Approvals
- CE, EAC
- EAN
- 5702428963152
- Net weight
- 8.62 Kilogram
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Cv value [gal/min]
- 211.12 gal/min
- Direction
- Angleway
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 3 in
- Inlet connection size [mm]
- 80 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 182 m³/h
- Max. Working Pressure [bar]
- 50 bar
- Max. Working Pressure [psig]
- 725 psig
- Neck
- Standard
- Outlet connection size [in]
- 3 in
- Outlet connection size [mm]
- 80 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B36.19M Schedule 40
- Size / Series
- 80 mm
- Material
- Stainless steel
- Pressure Rating
- 50 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVA-S SS 80 angleway shut-off valve, all-stainless, butt-weld ASME B36.19M Schedule 40, cap-operated. Stainless SVA-S SS is rated 50 bar (vs 52 bar for the carbon-steel SVA-S 80). EN weld-end, carbon-steel and handwheel variants are separate codes — confirm material, connection standard and operator before ordering.
