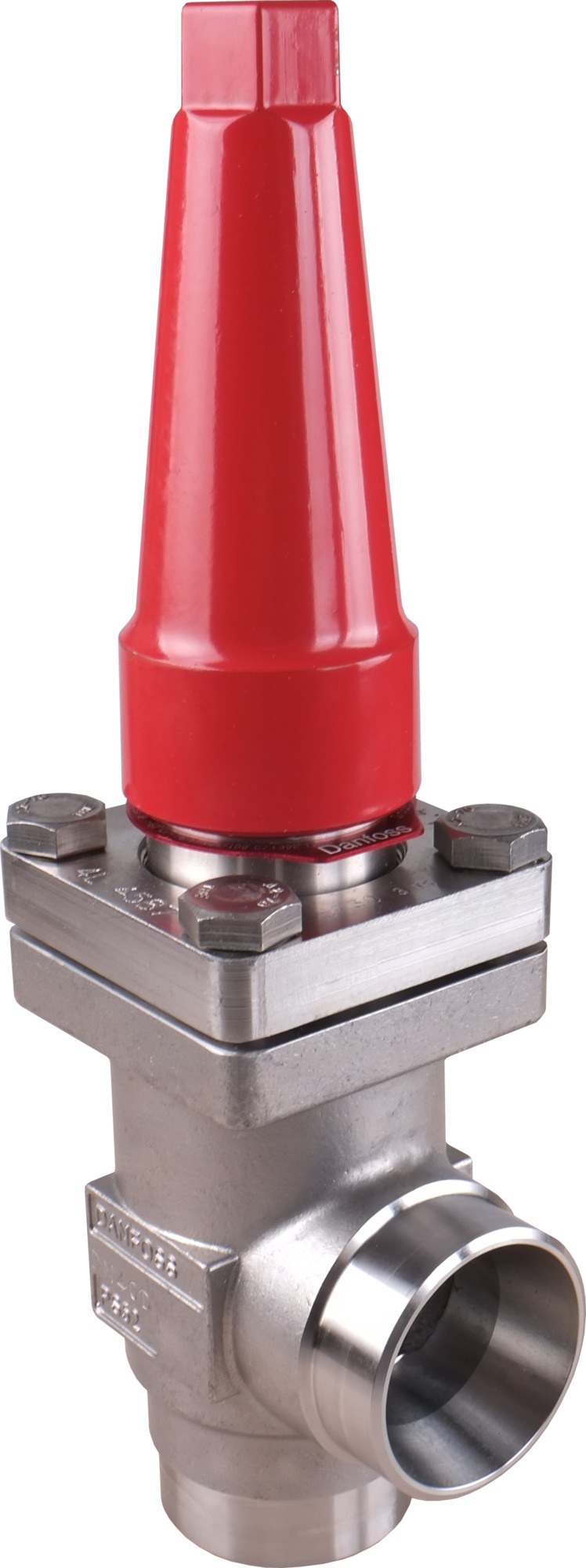

Danfoss SVA-S SS 20 angleway shut-off valve, cap, 20 mm (3/4 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar (code 148B5395)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S SS 20 angleway shut-off (stop) valve for industrial refrigeration, code 148B5395. Stainless steel body with butt weld connections to ASME B 36.19M Schedule 40, nominal size 20 mm (3/4 in). Operated with a cap; bi-directional (bi-flow) shut-off. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 14.6 m3/h (Cv 16.88 gal/min). The SVA-S is the standard-neck stainless shut-off valve in the Danfoss SVL Flexline programme; the renewable seat and cone close tightly and the valve can be dismantled and repaired in line. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Specifications
- Part number
- 148B5395
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.19M Schedule 40
- Standard size
- 20 mm
Compatibility
Danfoss SVL Flexline SVA-S SS stainless shut-off valve. This code is the angleway SVA-S SS 20 with butt weld (ASME B 36.19M Schedule 40) ends and cap. Confirm line size (20 mm (3/4 in)), connection type/standard, direction (angleway) and refrigerant before ordering. EN 10220 and ASME weld-end preparations are not interchangeable — the EN cell of this size is a separate code. Shares the SVL Flexline platform with REG-SA/REG-SB regulating valves, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
