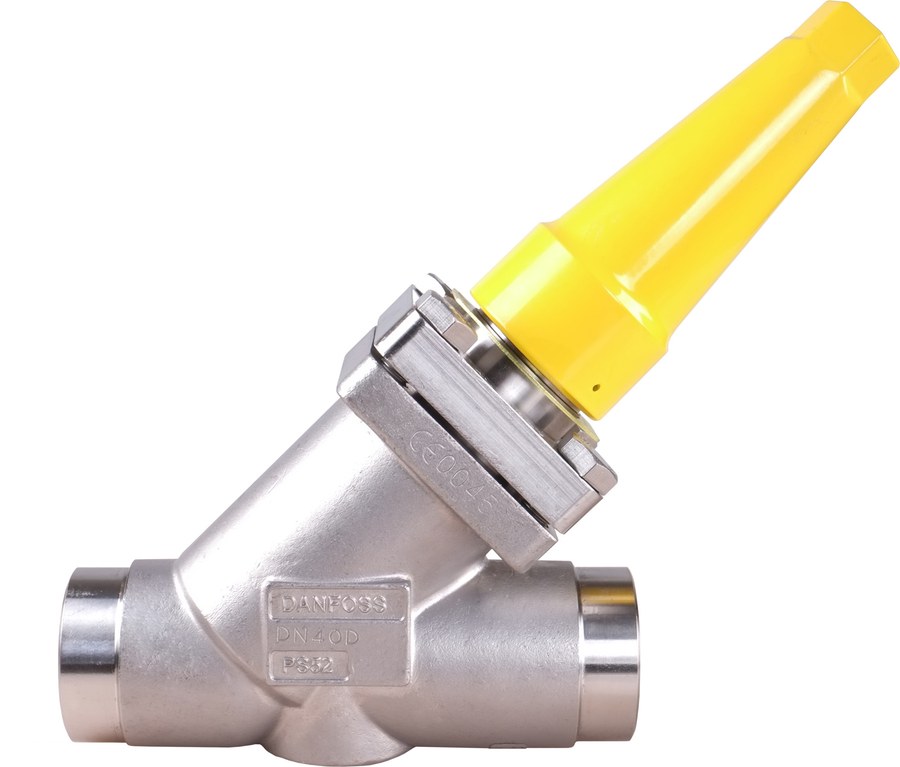

Danfoss REG-SB SS HL 15 straightway stainless steel hand regulating valve, 15 mm (1/2 in) butt weld EN 10220, cap, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss REG-SB SS HL 15 straightway hand-operated regulating (throttling) valve for the SVL Flexline industrial-refrigeration range, code 148B5949. All-stainless-steel body and connections with butt-weld ends to EN 10220, cap-operated. Straightway body (inlet and outlet in-line). Kv 5 m3/h (Cv 5.8 gal/min); flow area 115 mm2 (0.178 in2); maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). REG-SB is the higher-flow-area regulating module (vs REG-SA); the stainless SS HL execution suits corrosive duty and stainless pipework. Used to manually set and hold a throttled flow rate. Suits HCFC, HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- Hand-operated regulating valve, REG-SB SS HL 15 (SVL Flexline)
- Code number
- 148B5949
- Product group
- Shut-off and regulating valves
- Nominal size
- 15 mm (1/2 in)
- Flow direction body
- Straightway
- Connection
- Butt weld
- Connection standard
- EN 10220
- Body material
- Stainless steel
- Connection material
- Stainless steel
- Kv value
- 5 m3/h (Cv 5.8 gal/min)
- Flow area
- 115 mm2 (0.178 in2)
- Operator
- Cap
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Fluid groups
- 1
- Conformity assessment
- PED Article 4, paragraph 3 (sound engineering practice)
- Approvals
- EAC
- EAN
- 5702424538828
- Net weight
- 1.767 Kilogram
- Approval
- EAC
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Cv value [gal/min]
- 5.8 gal/min
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow area [in2]
- 0.178 in²
- Flow area [mm2]
- 115 mm²
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1/2 in
- Inlet connection size [mm]
- 15 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 5 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- Outlet connection size [in]
- 1/2 in
- Outlet connection size [mm]
- 15 mm
- Outlet connection type
- Butt weld
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R1234yf
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 15 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss REG-SB SS HL 15 hand regulating valve, all-stainless, butt-weld EN 10220, straightway, cap. REG-SB has the larger flow area (115 mm2) vs REG-SA; the SS HL execution is the stainless variant. Straightway and angleway are separate codes — confirm body direction before ordering.
