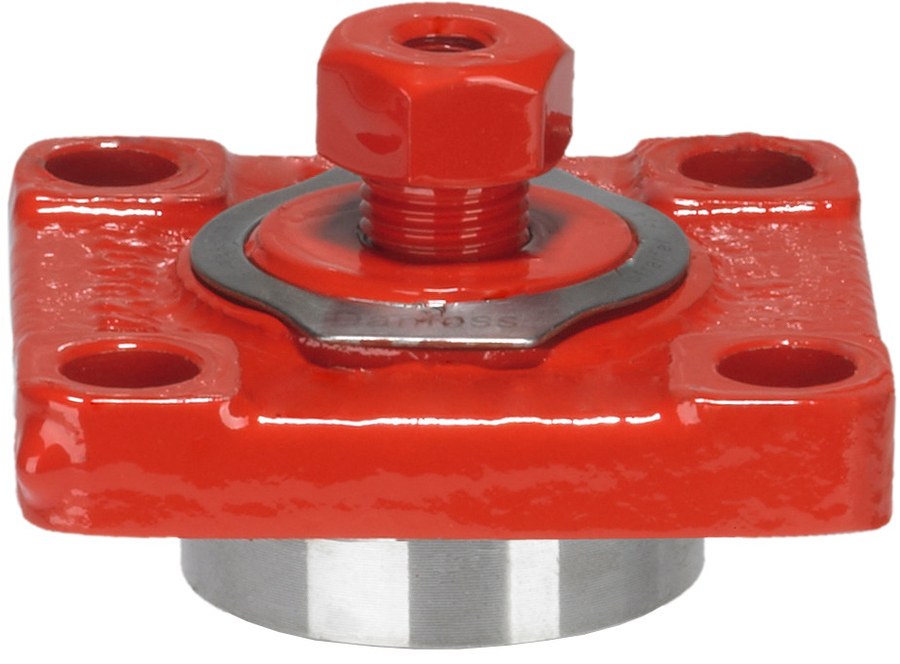

Danfoss FIA 15-20 function module (Top Complete), fits SVL Flexline FIA 15-20 strainer, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 15-20 function module (complete top part) for the SVL Flexline industrial-refrigeration range, code 148B5284. The function module is the field-replaceable working assembly (strainer function) that mounts onto an already-welded SVL Flexline valve body of the matching 15-20 mm size band, converting the bare housing into a working FIA valve. Supplied as a single pack complete with top part, one gasket and four bolts. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Servicing the module leaves the welded body and the pipeline undisturbed. Order the matching SVL body separately if not already installed.
Technical Specifications
- Type
- FIA 15-20 function module (SVL Flexline)
- Code number
- 148B5284
- Type designation
- Top Complete (complete top part / function module)
- Product group
- Strainers
- Function
- strainer
- Fits valve bodies
- FIA 15; FIA 20
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Supplied
- single pack — top part, 1 gasket, 4 bolts
- Approvals
- CE
- EAN
- 5702428491105
- Net weight
- 0.45 Kilogram
- China RoHS compliance
- Yes
- EU RoHS compliance
- Yes
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- FIA 15
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.99
Compatibility & Fitment
Danfoss SVL Flexline FIA 15-20 function module (Top Complete). Fits SVL Flexline bodies of the 15-20 mm size band (FIA 15; FIA 20). The module sets the valve duty; the welded body is common across SVL functions of the same size. Confirm the installed body size band before ordering.
