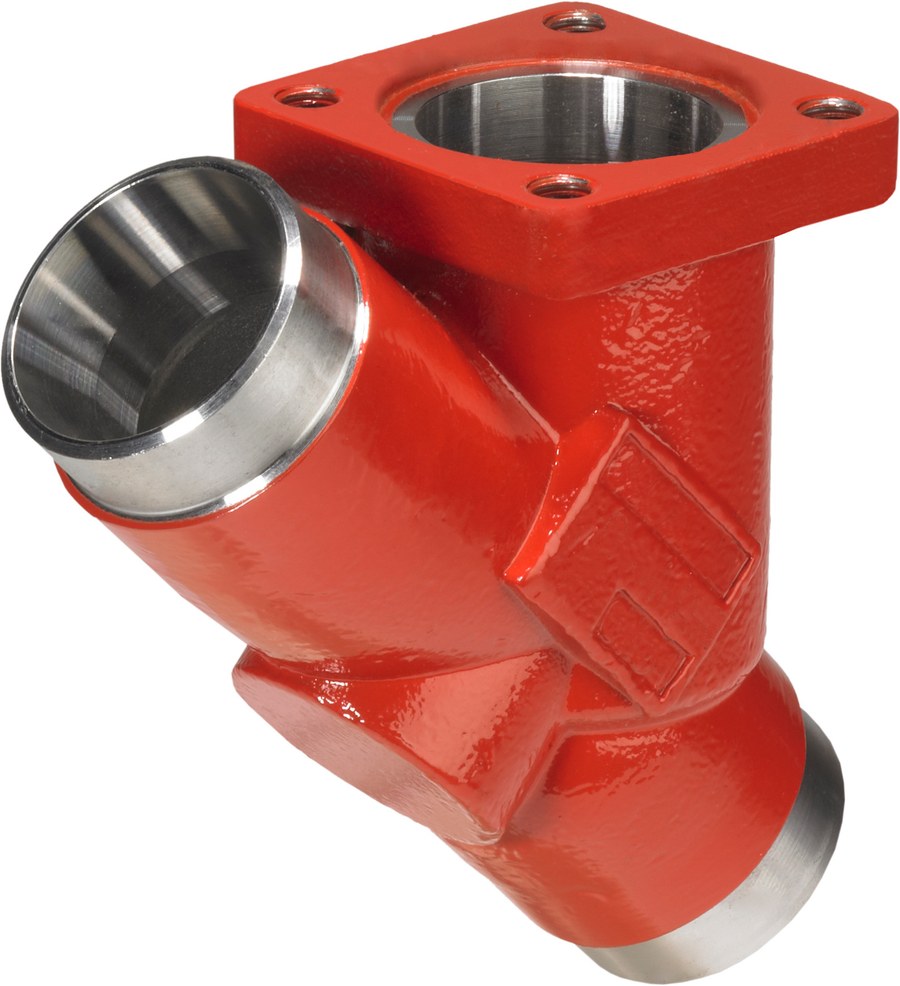

Danfoss SVL Flexline multifunction valve body, SVL 20 straightway butt weld EN 10220, 20 mm (3/4 in), 52 bar, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 20 multifunction valve body for the SVL Flexline industrial-refrigeration range, code 148B5353. This is the bare valve housing (body only, without function module) in a low-temperature steel casting; it is welded permanently into the line and then converted to any SVL Flexline function — shut-off (SVA-S/SVA-L), regulating (REG-SA/REG-SB), check & stop (SCA-X) or check (CHV-X) — by fitting the corresponding function module (complete top part). This SKU is the straightway body with 20 mm (3/4 in) butt weld connections to EN 10220. Bi-flow body; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Steel construction suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Straightway bodies place inlet and outlet in-line. Order the matching SVL function module separately for the required duty and nominal size.
Technical Specifications
- Type
- Multifunction valve body, SVL 20 (SVL Flexline)
- Code number
- 148B5353
- Series
- SVL Flexline (multifunction valve body / housing)
- Function
- Bare valve body — accepts SVA-S/SVA-L, REG-SA/REG-SB, SCA-X or CHV-X function module
- Nominal size
- 20 mm (3/4 in)
- Flow direction body
- Straightway
- Connection
- Butt weld
- Connection standard
- EN 10220
- Body material
- Steel
- Flow
- Bi-flow body
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Fluid groups
- 1, 2
- Conformity assessment
- PED Article 4, paragraph 3 (sound engineering practice) for DN <= 25
- Approvals
- CE, UKCA
- EAN
- 5702428485401
- Net weight
- 1.15 Kilogram
- Product group
- Multifunction valves
- Approval
- UKCA
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection Code
- (2001:D23:20)
- Connection material
- Steel
- Direction
- Straightway
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 3/4 in
- Inlet connection size [mm]
- 20 mm
- Inlet connection type
- Butt weld
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 3/4 in
- Outlet connection size [mm]
- 20 mm
- Outlet connection type
- Butt weld
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 20
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline multifunction valve body. Select by nominal size (20 mm / 3/4 in), body direction (straightway) and connection (butt weld EN 10220). The same welded body accepts any SVL Flexline function module of the matching size, so the valve duty is set by the top part fitted, not by the body. EN 10220 and ASME weld-end variants are separate codes — confirm the mating pipe standard before ordering.
