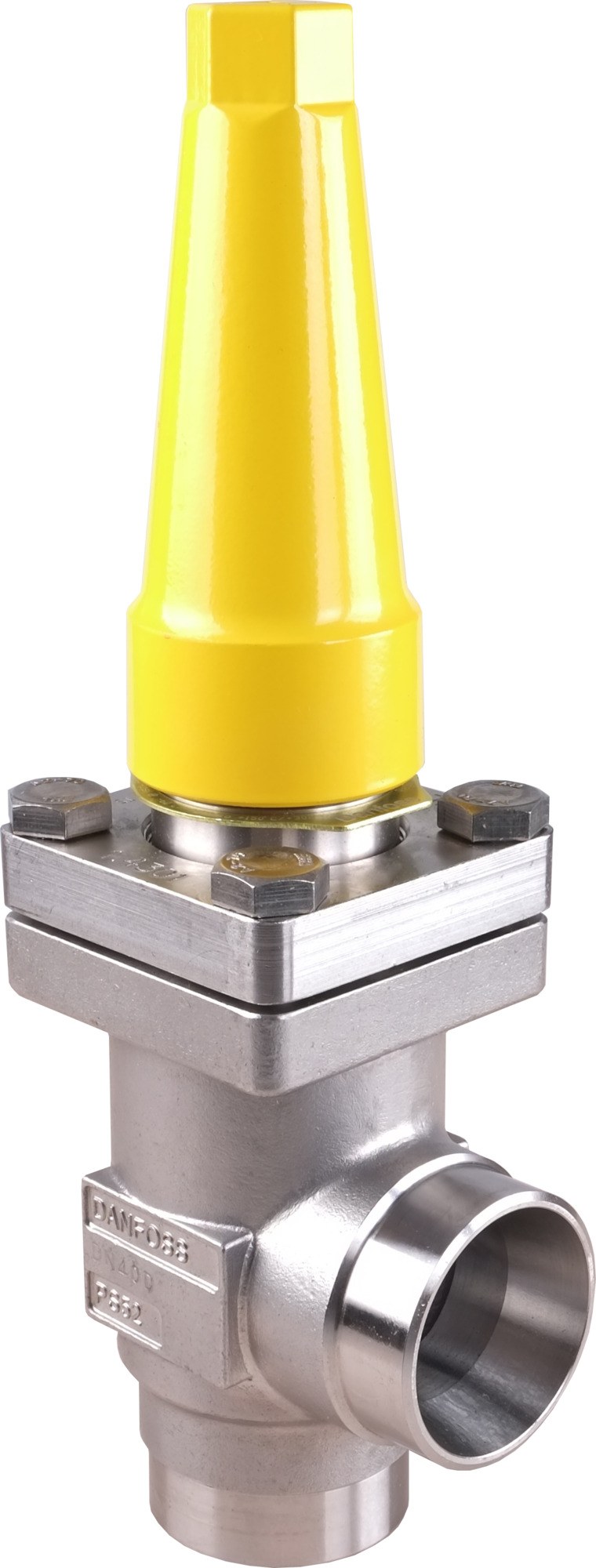

Danfoss REG-SSB SS HL 25 angleway stainless steel hand regulating valve, 1 in (25 mm) butt weld EN 10220, cap, 52 bar (code 148B5952)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss REG-SSB SS HL 25 angleway hand-operated regulating valve for industrial-refrigeration line service, code 148B5952. This is the stainless-steel (SS) long-neck (HL) version of the Flexline regulating valve, size 1 in (25 mm), with butt-weld inlet and outlet to EN 10220. The stainless body and long neck (extended bonnet, for thicker insulation) give improved corrosion resistance for CO2 (R744) and ammonia (R717) duty. Cap operated; bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 20 m3/h. Angleway body places inlet and outlet at 90 degrees. REG-SSB uses the B-cone (coarse regulation).
Specifications
- Part number
- 148B5952
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 1 in (25 mm)
Compatibility
Danfoss REG-SSB SS HL Flexline stainless regulating valve (long neck), angleway EN 10220 variant, cap operated. Select by nominal size (1 in (25 mm)), body direction, cone type (REG-SA A-cone fine / REG-SB B-cone coarse) and operator. The stainless SS body is a separate code from the carbon-steel REG; confirm body material, neck length and pipe connection before ordering.
Approvals
