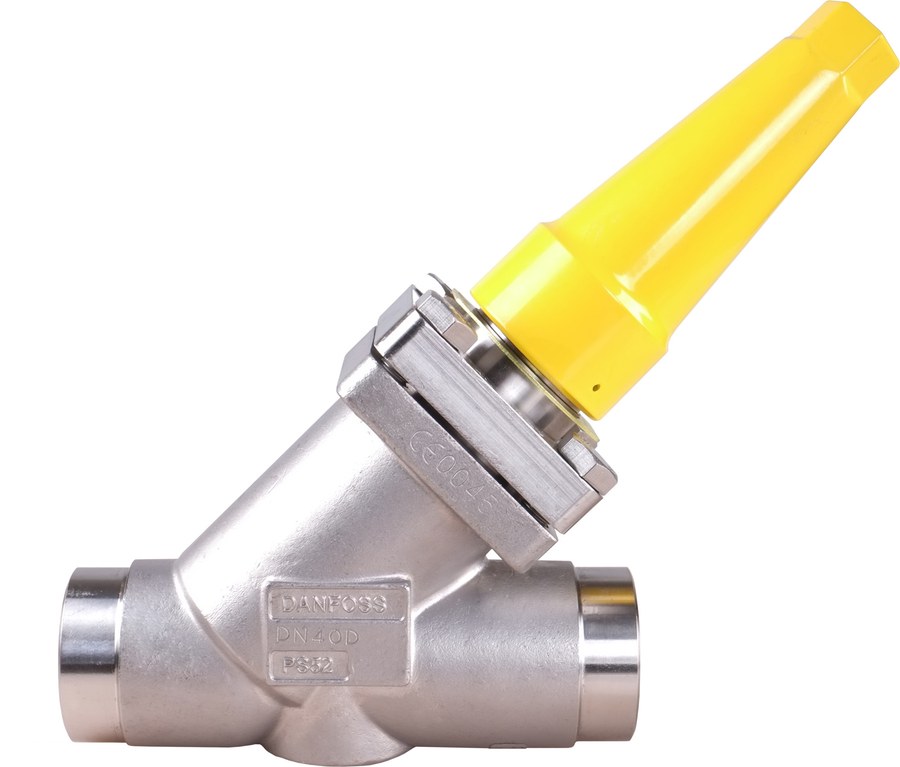

Danfoss REG-SSA SS HL 25 straightway stainless steel hand regulating valve, 1 in (25 mm) butt weld EN 10220, cap, 52 bar (code 148B5945)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss REG-SSA SS HL 25 straightway hand-operated regulating valve for industrial-refrigeration line service, code 148B5945. This is the stainless-steel (SS) long-neck (HL) version of the Flexline regulating valve, size 1 in (25 mm), with butt-weld inlet and outlet to EN 10220. The stainless body and long neck (extended bonnet, for thicker insulation) give improved corrosion resistance for CO2 (R744) and ammonia (R717) duty. Cap operated; bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 7 m3/h. Straightway body places inlet and outlet in line. REG-SSA uses the A-cone (fine regulation).
Specifications
- Part number
- 148B5945
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 1 in (25 mm)
Compatibility
Danfoss REG-SSA SS HL Flexline stainless regulating valve (long neck), straightway EN 10220 variant, cap operated. Select by nominal size (1 in (25 mm)), body direction, cone type (REG-SA A-cone fine / REG-SB B-cone coarse) and operator. The stainless SS body is a separate code from the carbon-steel REG; confirm body material, neck length and pipe connection before ordering.
Approvals
