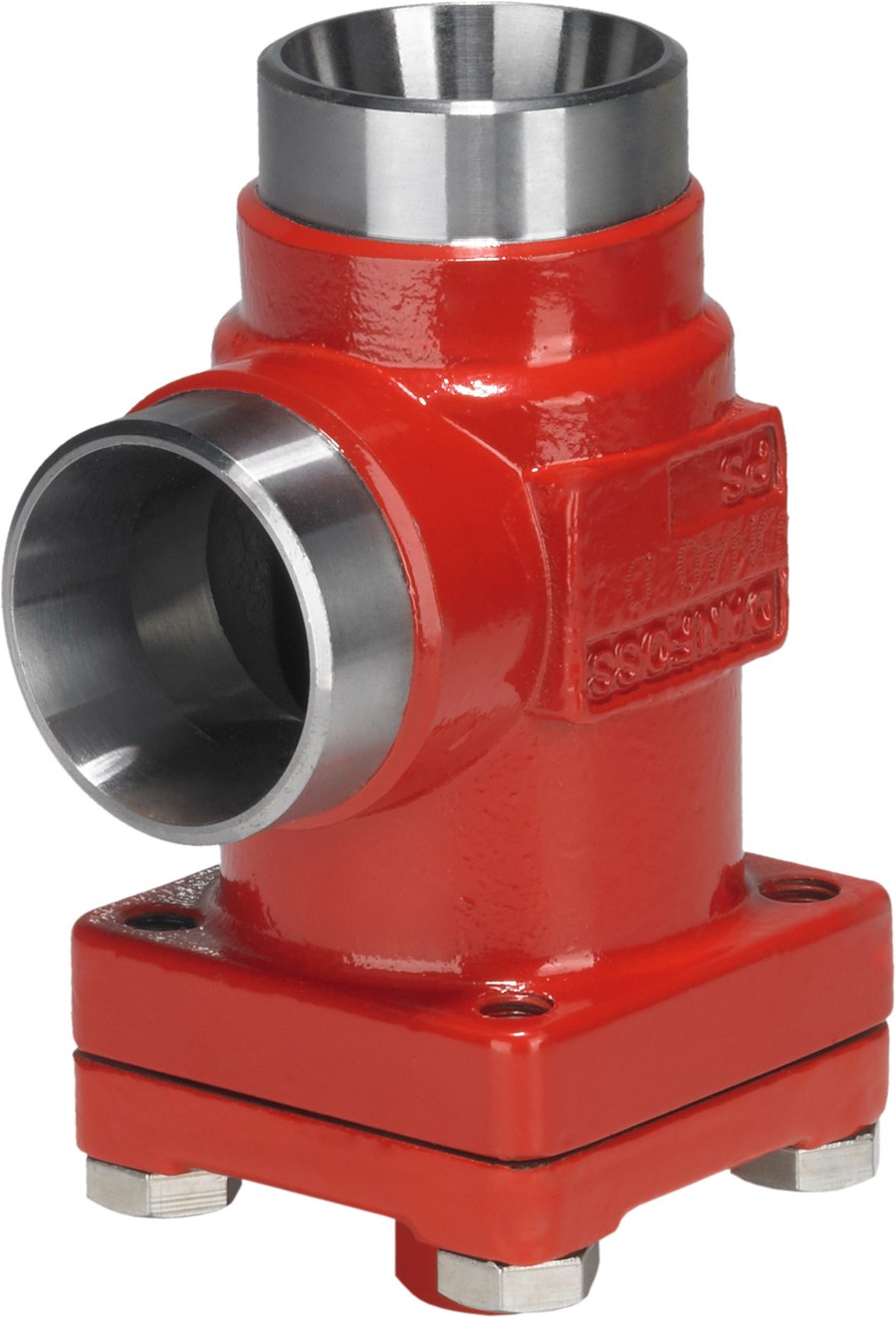

Danfoss FIA 65 angleway strainer housing, 65 mm (2 1/2 in) butt weld EN 10220, steel, 52 bar

Danfoss FIA 65 angleway strainer (filter) housing for industrial-refrigeration line service, code 148B5812. The FIA housing takes a replaceable filter insert and removes particles from the refrigerant flow to protect downstream valves and controls. This angleway body carries butt-weld inlet and outlet to EN 10220, size 2 1/2 in (65 mm) — the EN 10220 counterpart of the ASME Sch40 angleway 148B5814. Steel body; supplied with cover; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 56.1 to 74.6 m3/h depending on insert. Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. The filter insert is ordered separately by mesh/micron rating.

Type

FIA 65 (strainer / filter housing)

Code number

148B5812

Series

FIA (Flexline strainers)

Function

In-line strainer housing (replaceable filter insert)

Nominal size

DN65 — 2 1/2 in (65 mm)

Direction

Angleway

Equipment

Cover

Flow direction

Embossed one-way arrow

Inlet connection type

Butt weld

Outlet connection type

Butt weld

Connection standard

EN 10220

Connection size

2 1/2 in (65 mm)

Body material

Steel

Connection material

Steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Kv value

56.1 to 74.6 m3/h (insert dependent)

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

Approvals

CE

PED category

II

Net weight

4.136 kg

EAN

5702428476553

Size / Series

2 1/2 in (65 mm)

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8421.39
