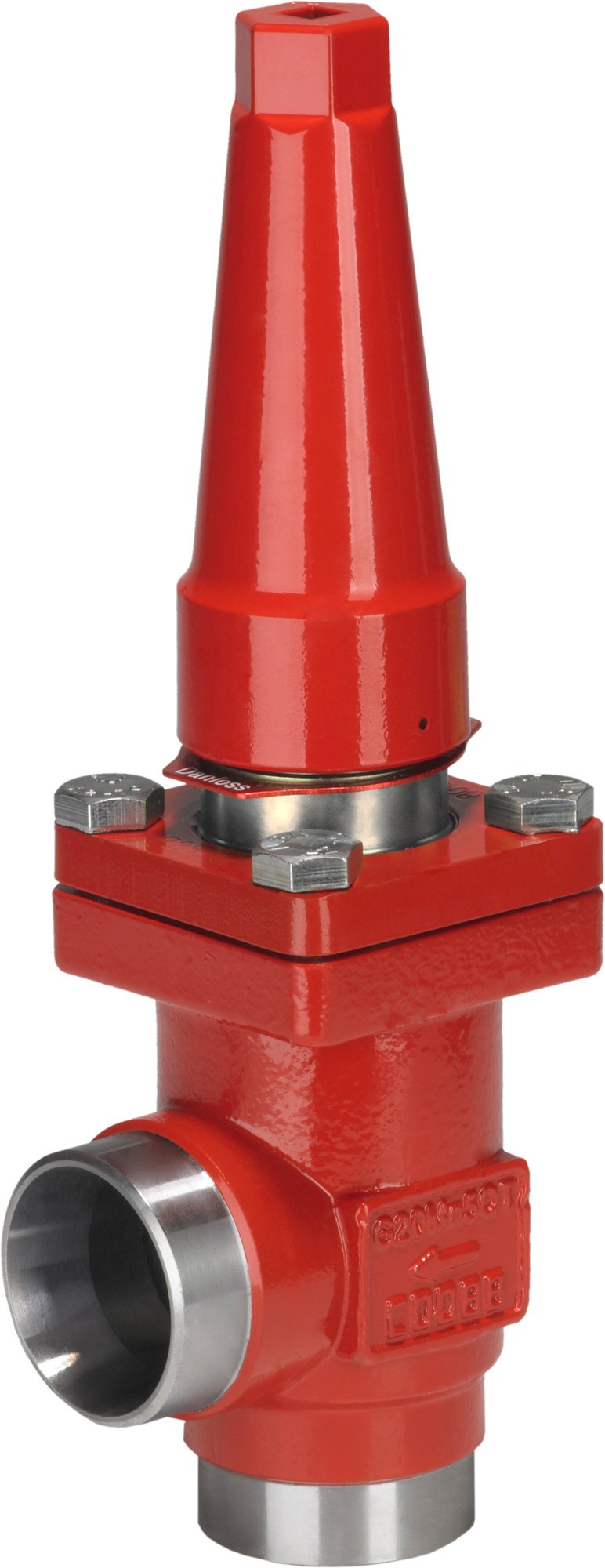

Danfoss SVA-S 65 angleway shut-off valve, butt weld ASME B 36.10M Schedule 40, cap, 2 1/2 in (65 mm), 52 bar (code 148B5821)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 65 angleway shut-off (stop) valve for industrial-refrigeration line service, code 148B5821. SVA-S is the standard-neck Flexline stop valve. This body carries butt-weld inlet and outlet to ASME B 36.10M Schedule 40, size 2 1/2 in (65 mm), and is cap operated — the cap variant of the angleway ASME B 36.10M Schedule 40 body (the hand-wheel variant is a separate code). Steel body and connections; bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 120 m3/h (Cv 140 gal/min). Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Angleway body places inlet and outlet at 90 degrees.
Specifications
- Part number
- 148B5821
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 2 1/2 in (65 mm)
Compatibility
Danfoss SVA-S Flexline shut-off valve, angleway ASME B 36.10M Schedule 40 variant, cap operated. Select by nominal size (DN65 / 2 1/2 in), direction, connection standard and operator (cap vs hand wheel). The EN 10220 and ASME Sch40 bodies are separate codes and are not interchangeable — confirm the mating pipe connection. SVA-S is standard-neck; SVA-L is long-neck.
Approvals
