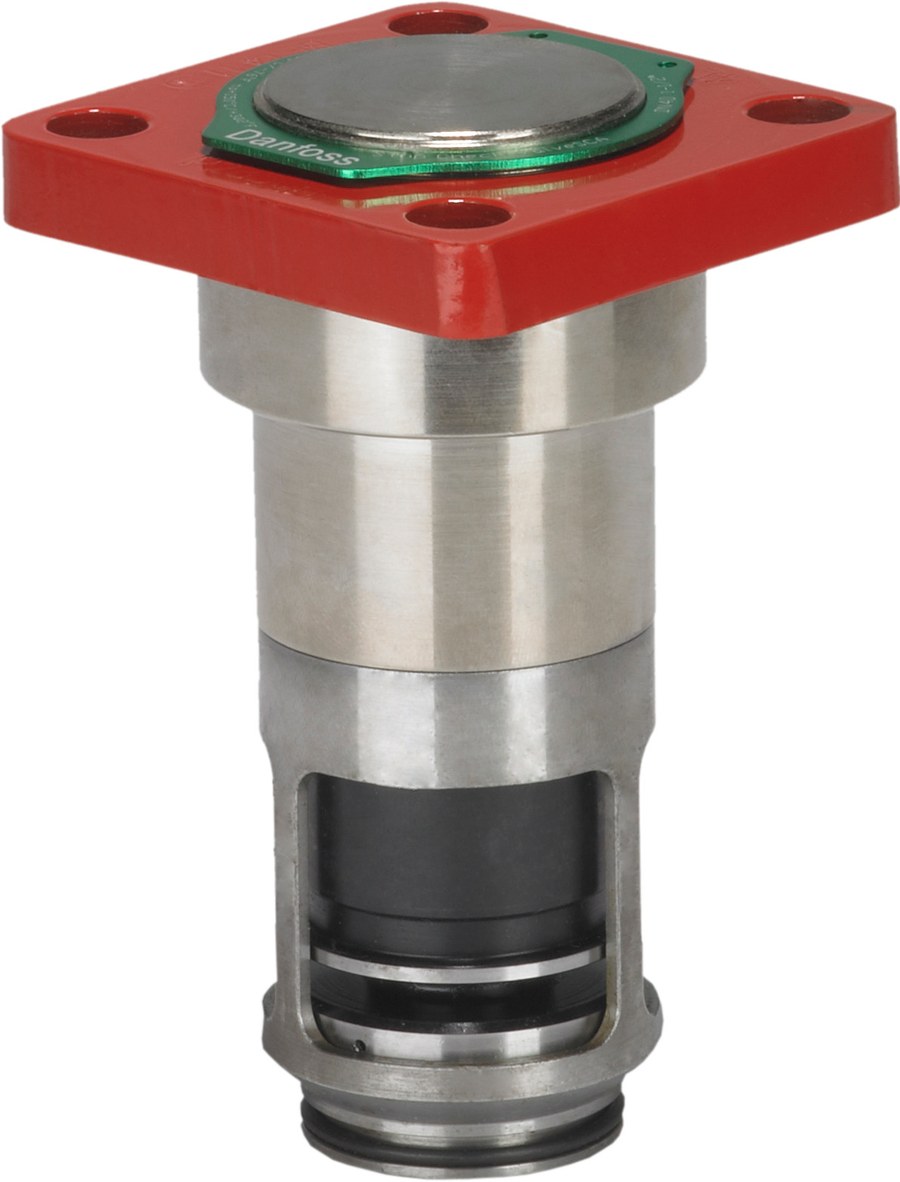

Danfoss CHV-X 25-40 function module (Top Complete), fits SVL Flexline CHV-X 25-40 check, 52 bar (code 148B5483)
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss CHV-X 25-40 function module for the SVL Flexline industrial-refrigeration range, code 148B5483. This is the complete top part (Top Complete) that converts an SVL Flexline multifunction valve body of the 25-40 mm size band into a check (non-return, top part). It fits the CHV-X 25, CHV-X 32 and CHV-X 40 bodies and is supplied as a single assembly with gasket and bolts. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); steel/refrigeration-grade internals for HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. This is the 52-bar module; the 65-bar Top Complete module of the same size band is a separate code. Order the matching SVL Flexline valve body separately.
Specifications
- Part number
- 148B5483
- HS code
- 8481.90
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
Compatibility
Danfoss SVL Flexline function module (Top Complete) for the CHV-X 25-40 size band. This is the 52-bar module — the 65-bar Top Complete module of the same size band is a separate code. Order the matching SVL Flexline valve body (housing) separately and confirm size band, series and pressure rating before ordering.
Approvals
