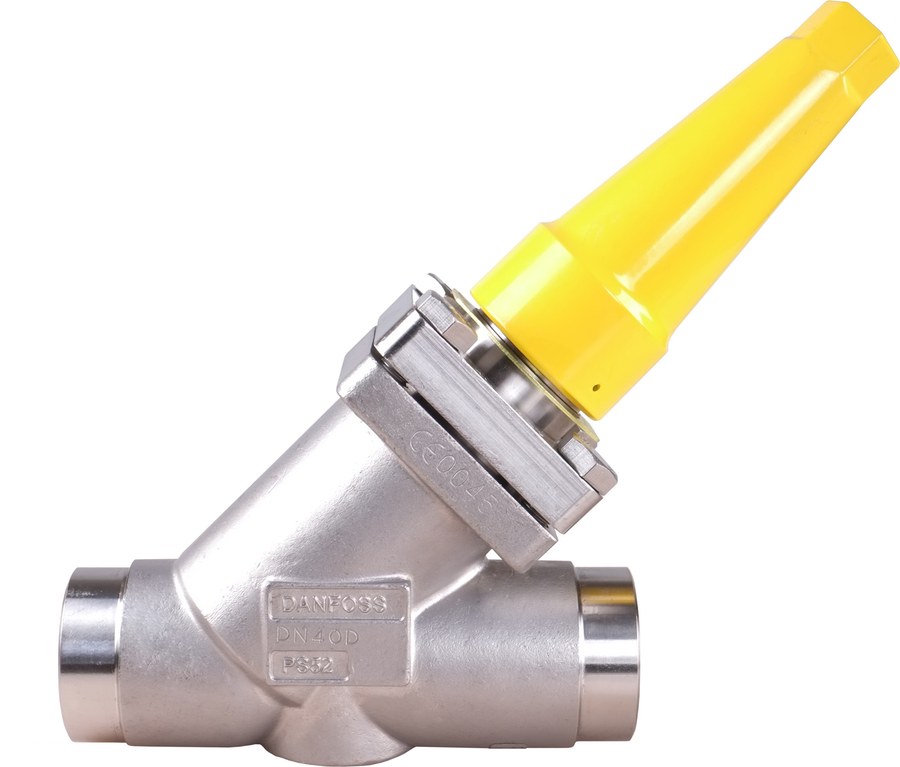

Danfoss REG-SA SS HL 20 hand-operated regulating valve, straightway, 20 mm (3/4 in) butt weld EN 10220, cap, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss REG-SA SS HL 20 hand-operated regulating (throttling) valve for industrial-refrigeration service, code 148B5943. Stainless-steel Flexline body, size 3/4 in (20 mm), with butt weld inlet and outlet to EN 10220. The HL (high-lift / fine-regulation) spindle gives repeatable manual throttling of liquid, suction, hot-gas and oil flow with a scaled position indication; the back-seating spindle lets the packing be serviced in operation. This is the straightway body with a sealing cap. Stainless construction suits corrosive and hygienic duties on ammonia (R717), CO2 (R744) and HFC/HCFC refrigerants. Kv 1.5 m3/h (Cv 1.75 gal/min). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Conformity assessment PED Article 4, paragraph 3 (sound engineering practice) for DN <= 25. Specifications per Danfoss store code 148B5943.
Technical Specifications
- Type
- REG-SA SS HL 20 hand-operated regulating valve, stainless steel
- Code number
- 148B5943
- Series
- SVL Flexline (REG-SA SS HL)
- Function
- Manual regulating (throttling) valve, high-lift fine regulation
- Nominal size
- DN20 — 3/4 in (20 mm)
- Direction
- Straightway
- Equipment
- Cap
- Flow direction
- Bi-flow
- Inlet connection type
- Butt weld
- Outlet connection type
- Butt weld
- Connection standard
- EN 10220
- Body material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 1.5 m3/h
- Cv value
- 1.75 gal/min
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Conformity assessment
- PED Article 4, paragraph 3 (sound engineering practice) for DN <= 25
- Approvals
- EAC
- EAN
- 5702424538767
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 20 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline REG-SA SS HL 20 stainless hand-regulating valve. Select by nominal size (20 mm / 3/4 in), direction (straightway) and connection (butt weld EN 10220). Stainless (SS) and steel REG-SA housings are separate codes. The HL spindle gives fine (high-lift) regulation; standard REG-SA and HL are separate codes.
