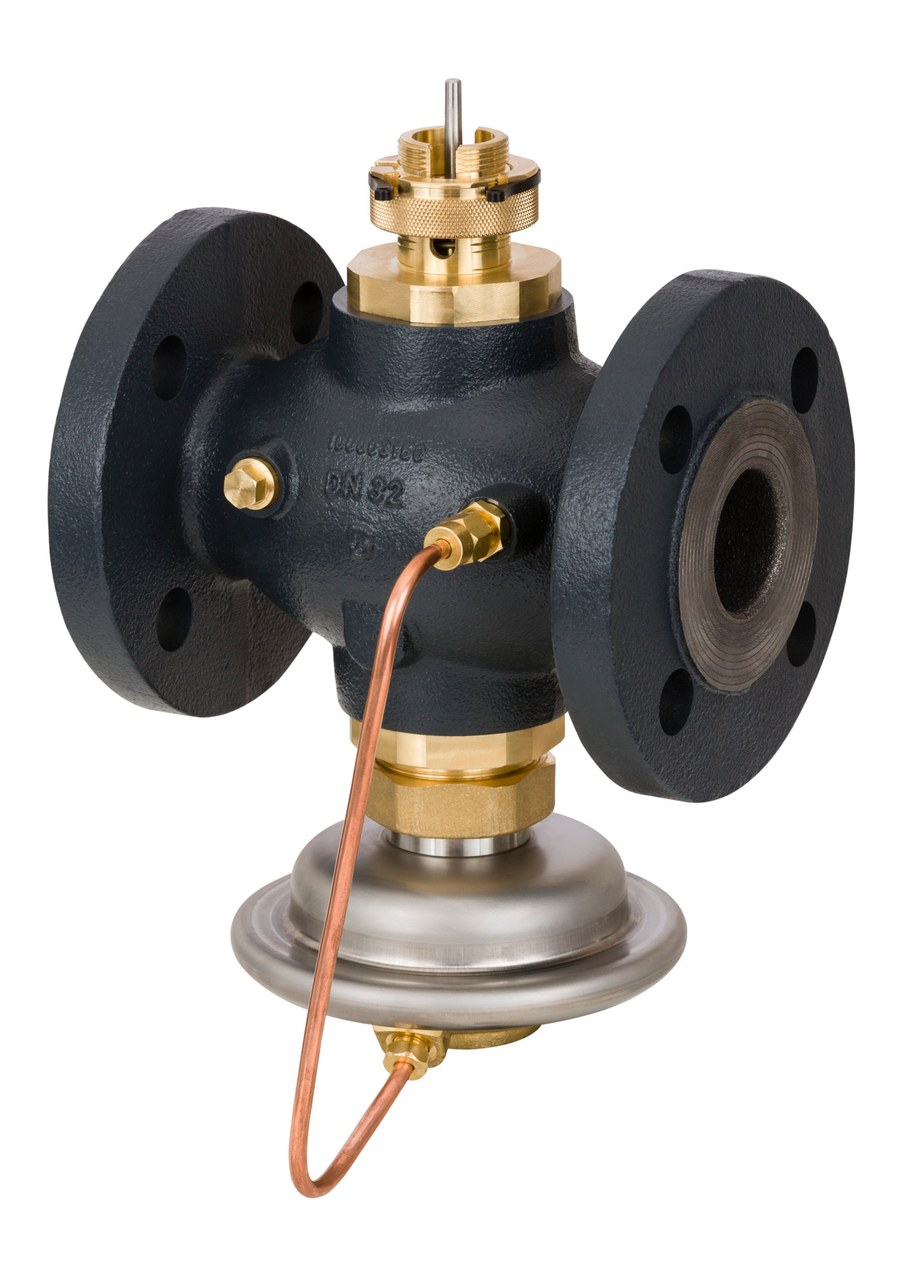

Danfoss AVQM-WE motorized flow controller (PICV), PN 25, DN 50, flow range 0.8–14 m³/h, Kvs 25 m³/h, Flange DN 50 (EN 1092-2)

Danfoss AVQM-WE (003H7090) — self-acting flow controller with integrated, pressure-independent motorized control valve (PICV); holds the differential pressure across the built-in flow restrictor constant so the electric actuator stem position sets flow independent of system pressure; limits the flow to the set maximum, PN 25, DN 50, for district heating and cooling systems. Because the built-in differential-pressure controller keeps the pressure drop across the flow restrictor constant, the flow becomes pressure-independent: the position of the separately ordered Danfoss AMV(E) electric actuator directly sets the flow, and the valve limits the flow to the set maximum. Flow range 0.8 - 14 m³/h; Kvs 25 m³/h; flow-restrictor differential pressure (Δpb) 0.2 bar; maximum differential pressure 16 bar; media temperature 2–150 °C; seat leakage 0.05 % Kvs (IEC 60534). Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); stainless-steel seat/cone; EPDM control diaphragm. Connection Flange DN 50 (EN 1092-2). Mounting version Free. Permissible media: district-heating/cooling circulation water (glycolic water up to 30 %), pH 7–10. The controller is delivered completely assembled, including the impulse tube between valve and actuator; the AMV(E) electric actuator are ordered separately. OEM P/N 003H7090. Materials and function per Danfoss AVQM-WE / AVQMT-WE (new neck) data sheet; technical values verbatim from store.danfoss.com (code 003H7090). Contains lead per the REACH candidate list. differential pressure 16 bar); Temperature range: 2 to 150 °C (district heating/cooling water); Standards: EN 1092-2, IEC 60534; HS code: 8481.80. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

003H7090

Type

AVQM-WE

Product group

Pressure independent control valves (Pressure and flow controllers)

Function

Self-acting flow controller with integrated, pressure-independent motorized control valve (PICV); holds the differential pressure across the built-in flow restrictor constant so the electric actuator stem position sets flow independent of system pressure; limits the flow to the set maximum

Valve size

DN 50

Pressure class

PN 25

Connection

Flange DN 50 (EN 1092-2)

Kvs value

25 m³/h

Flow rate range

0.8 - 14 m³/h

Flow restrictor differential pressure (Δpb)

0.2 bar

Max. differential pressure

16 bar

Media temperature

2 - 150 °C

Media

District heating / district cooling circulation water (glycolic water up to 30%), pH 7 - 10

Seat leakage rate

0.05 % Kvs (IEC 60534)

Electric actuator

Danfoss AMV(E) (e.g. AMV/AME 110, 150, 435), ordered separately; controllable by ECL electronic controllers

Delivery

Delivered assembled, incl. impulse tube between valve and actuator; electric actuator ordered separately

Mounting version

Free

Valve body material

Ductile iron EN-GJS-400-18-LT (GGG 40.3)

Valve seat / cone

Stainless steel

Control diaphragm

EPDM

EU RoHS compliance

Yes with exemptions (6(c))

REACH Candidate List substance

Lead (CAS no. 7439-92-1)

China RoHS

Out of scope

Net weight

13.82 kg

Gross weight

13.82 kg

EAN

5710104094014

Material

Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); valve seat/cone Stainless steel; control diaphragm EPDM

Pressure Rating

PN 25 (max. differential pressure 16 bar)

Temperature Range

2 to 150 °C (district heating/cooling water)

HS Code

8481.80
