Danfoss MMA (M28) thermostatic radiator sensor (operator head), liquid-charged, built-in sensor, 8–28 °C setting range, for M28 MMA valves
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MMA (M28) thermostatic radiator sensor, OEM order code 013G2761 — a self-acting thermostatic operator (sensor head): the liquid-charged sensing element expands and contracts with room temperature and drives the valve cone through the head, throttling flow to hold the set room temperature with no external power. It clamps onto M28 MMA-connection radiator valves via the M28 MMA connection (metal nut fixing) and requires no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum ~8 °C when turned to the snowflake position), adjustable maximum/minimum temperature limitation and set-point locking with hidden pins under the dial. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G2761). OEM P/N 013G2761, EAN 5702420038001. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.
Technical Specifications
- Code number
- 013G2761 Type: MMA Sensors Product group: OEM products Sensor version: RA 2761 Sensor design: RA 2000 Sensor media: Liquid (self-acting thermostatic charge) Sensor type: Built-in sensor Temperature setting range: 8 °C to 28 °C Connection to valve: M28 MMA Connection to sensor / valve body: Metal nut Frost protection: Yes Temperature limitation: Yes Shut-off (0/closed) function: No Colour: White RAL 9016 Contents of set: Sensor Feature description: Frost protection, limiting and locking of temperature set-point, suitable for MMA valves CE mark: No REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.147 Kilogram Gross weight: 0.156 Kilogram Packed volume: 0.364 Liter EAN: 5702420038001 HS code: 9032.10 (thermostats)
Standards & Compliance
- Material
- Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element
- Temperature Range
- setting 8 °C to 28 °C
- HS Code
- 9032.10
Compatibility & Fitment
Thermostatic operator head for M28 MMA-connection radiator valves (M28 MMA valve connection). Built-in type — the sensor reads the air at the valve; do not box in or cover the head, and mount horizontal pipework valves so the head is not above the radiator. Confirm the valve family (M28 MMA) and sensor connection (Metal nut) before ordering; the head fits Danfoss M28 MMA valve bodies only. No power supply required (self-acting). Setting range 8 °C–28 °C.
Product Documentation
More from Danfoss
Danfoss
Danfoss TA (M28) thermostatic radiator sensor (operator head), liquid-charged, built-in sensor, 8–21 °C setting range, for M28 TA valves
013G2770
Danfoss
Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, built-in sensor, 5–26 °C setting range, for RA valves (013G2910)
Danfoss
Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, remote sensor, 5–26 °C setting range, for RA valves (013G2912)
Danfoss
Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, built-in sensor, 5–20 °C setting range, for RA valves
013G2914
Danfoss
Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, remote sensor, 5–26 °C setting range, for RA valves (013G2922)
Danfoss
Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, built-in sensor, 5–26 °C setting range, for RA valves (013G2944)
Danfoss
Danfoss RA/RTD thermostatic radiator sensor (operator head), gas-charged, built-in sensor, 16–26 °C setting range, for RTD valves
013G2946
Danfoss

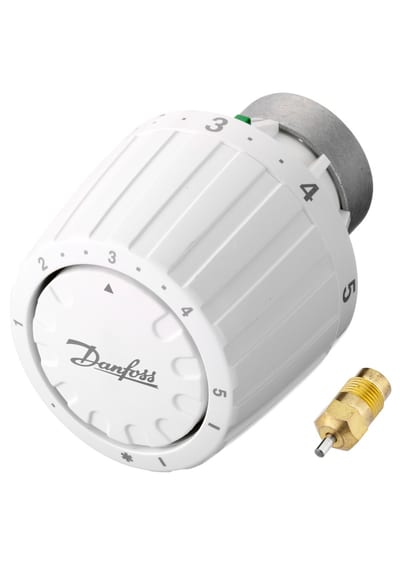

Danfoss RA/VL service sensor kit, gas-charged, built-in sensor, 5–26 °C setting range, for RAVL valves
013G2951
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 013G2761?
- 013G2761 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 013G2761.
- What is the HS code for 013G2761?
- The customs tariff (HS) code for 013G2761 is 9032.10.
- Who manufactures 013G2761?
- 013G2761 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 013G2761?
- Yes — the 013G2761 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 013G2761?
- The minimum order quantity is 1.
- Is 013G2761 available?
- Yes — 013G2761 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
