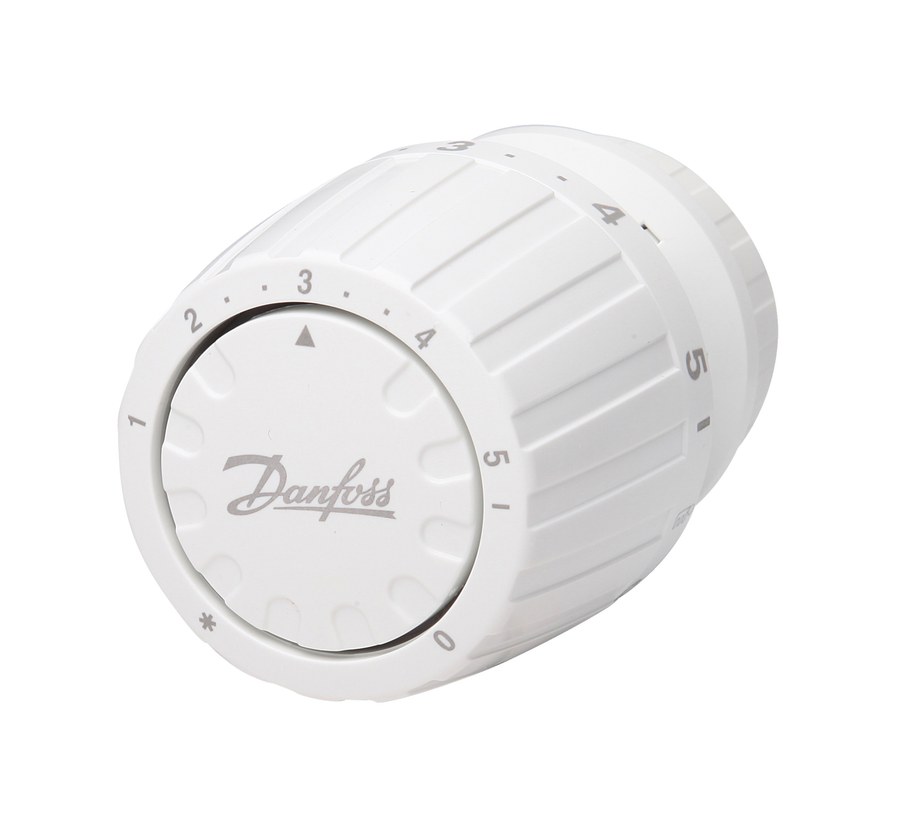

Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, built-in sensor, 5–26 °C setting range, for RA valves (013G2944)

Danfoss RA 2000 thermostatic radiator sensor, OEM order code 013G2944 — a self-acting thermostatic operator (sensor head): the gas-charged sensing element expands and contracts with room temperature and drives the valve cone through the head, throttling flow to hold the set room temperature with no external power. It clamps onto Danfoss RA-N / RA-U / RA-G radiator valves via the RA connection (ra-click fixing) and requires no wiring or batteries. Temperature setting range 5 °C to 26 °C; sensing charge gas; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum ~8 °C when turned to the snowflake position), adjustable maximum/minimum temperature limitation and set-point locking with hidden pins under the dial, a positive shut-off (0) position that fully closes the valve. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G2944). OEM P/N 013G2944, EAN 5702425186721. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.

Code number

013G2944 Type: RA 2000 Sensors Product group: Radiator Sensors Sensor version: RA 2944 Sensor design: RA 2000 Sensor media: Gas (self-acting thermostatic charge) Sensor type: Built-in sensor Temperature setting range: 5 °C to 26 °C Connection to valve: RA Connection to sensor / valve body: RA-click Frost protection: Yes Temperature limitation: Yes Shut-off (0/closed) function: Yes Colour: White RAL 9016 Contents of set: Sensor Feature description: Frost protection, limiting and locking of temperature set-point, positive shut-off feature CE mark: No Net weight: 0.164 Kilogram Gross weight: 0.165 Kilogram Packed volume: 0.29 Liter EAN: 5702425186721 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); gas-charged thermostatic sensing element

Temperature Range

setting 5 °C to 26 °C

HS Code

9032.10
