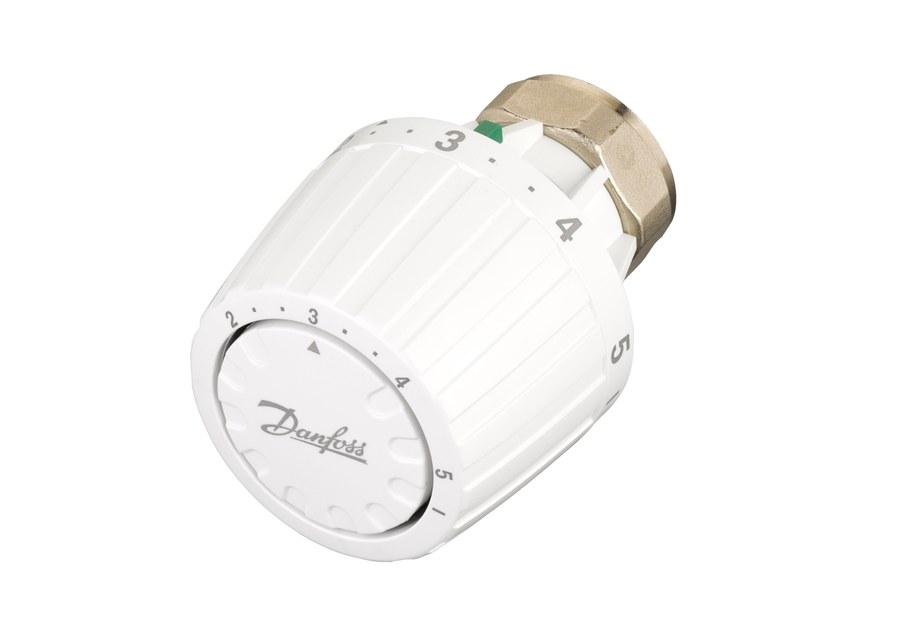

Danfoss RA/RTD thermostatic radiator sensor (operator head), gas-charged, built-in sensor, 16–26 °C setting range, for RTD valves

Danfoss RA/RTD thermostatic radiator sensor, OEM order code 013G2946 — a self-acting thermostatic operator (sensor head): the gas-charged sensing element expands and contracts with room temperature and drives the valve cone through the head, throttling flow to hold the set room temperature with no external power. It clamps onto Danfoss RTD-N radiator valves via the RTD connection (metal nut fixing) and requires no wiring or batteries. Temperature setting range 16 °C to 26 °C; sensing charge gas; housing colour White RAL 9016. The head provides adjustable maximum/minimum temperature limitation and set-point locking with hidden pins under the dial. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G2946). OEM P/N 013G2946, EAN 5702420095530. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.

Code number

013G2946 Type: RA/RTD Sensors Product group: Radiator Sensors Sensor version: RA 2946 Sensor design: RA/RTD 2000 Sensor media: Gas (self-acting thermostatic charge) Sensor type: Built-in sensor Temperature setting range: 16 °C to 26 °C Connection to valve: RTD Connection to sensor / valve body: Metal nut Frost protection: No Temperature limitation: Yes Shut-off (0/closed) function: No Colour: White RAL 9016 Contents of set: Sensor Feature description: Limited temperature range. Frost protection CE mark: No REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.136 Kilogram Gross weight: 0.15 Kilogram Packed volume: 0.285 Liter EAN: 5702420095530 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); gas-charged thermostatic sensing element

Temperature Range

setting 16 °C to 26 °C

HS Code

9032.10
