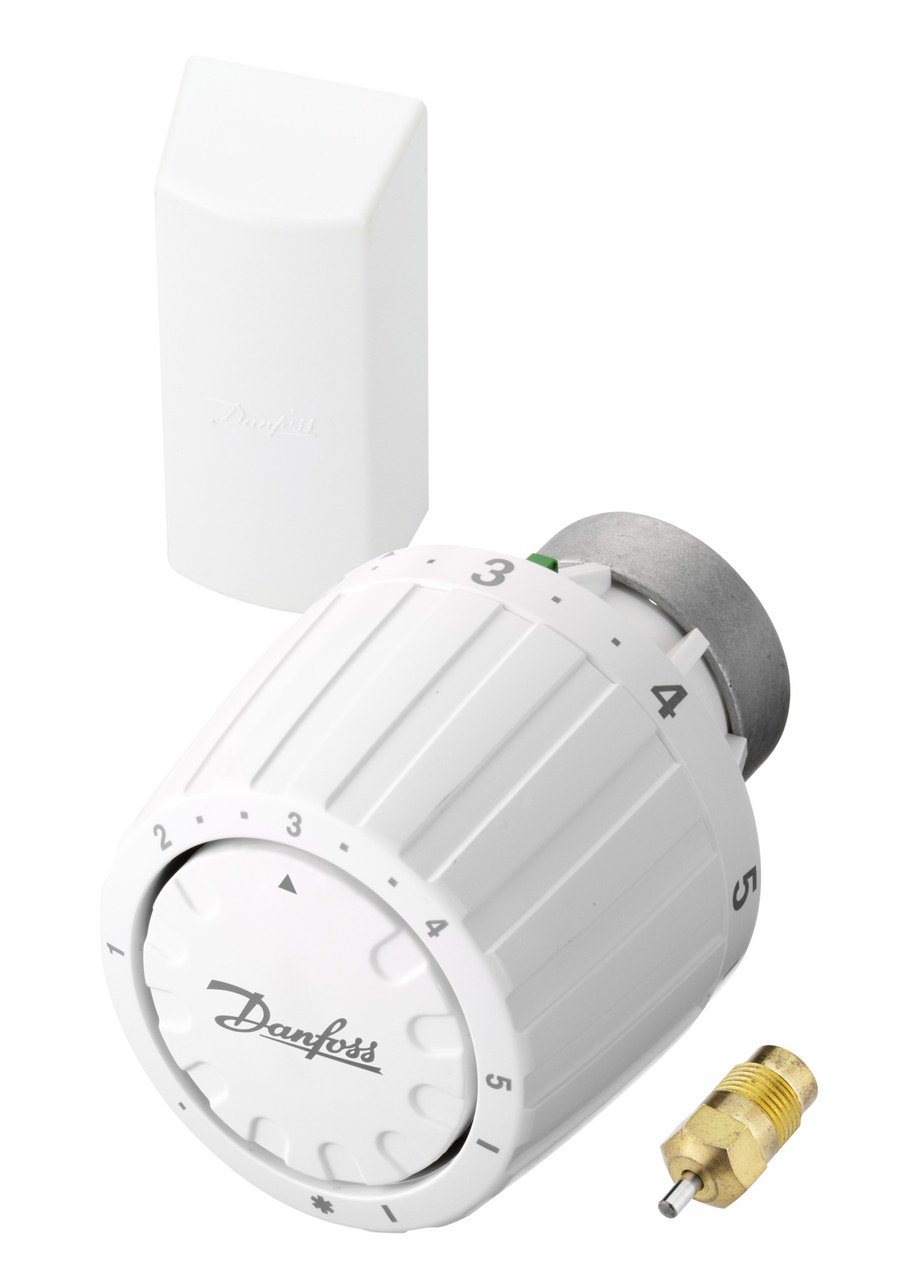

Danfoss RA/VL service sensor kit, gas-charged, remote sensor, 5–26 °C setting range, for RAVL valves (013G2953)

Danfoss RA/VL thermostatic radiator sensor, OEM order code 013G2953 — a remote (off-valve) thermostatic operator: the gas-charged sensing bulb sits in the room air and is linked to the valve head by a 2 m capillary tube, so the room temperature is sensed away from the radiator (used where the valve is boxed in, behind a curtain or close to the floor). It clamps onto Danfoss RAVL radiator valves via the RAVL connection (clamp ring fixing) and requires no wiring or batteries. Temperature setting range 5 °C to 26 °C; sensing charge gas; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum ~8 °C when turned to the snowflake position), adjustable maximum/minimum temperature limitation and set-point locking with hidden pins under the dial. Supplied as a service set — sensor — to refurbish an installed RAVL valve; includes RA/VL sensor 013G2952 and gland seal 013U0070. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G2953). OEM P/N 013G2953, EAN 5702420077840. HS 9032.10 (thermostats).

Code number

013G2953 Type: RA/VL Sensors Product group: Radiator Sensors Sensor version: RA 2952 Sensor design: RA/VL 2000 Sensor media: Gas (self-acting thermostatic charge) Sensor type: Remote sensor Temperature setting range: 5 °C to 26 °C Connection to valve: RAVL Connection to sensor / valve body: Clamp ring Capillary (remote) tube length: 2 m Frost protection: Yes Temperature limitation: Yes Shut-off (0/closed) function: No Colour: White RAL 9016 Contents of set: Sensor Feature description: Service set with RA/VL sensor 013G2952 and gland seal 013U0070 CE mark: No EU RoHS compliance: Yes with exemptions REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.222 Kilogram Gross weight: 0.222 Kilogram Packed volume: 0.429 Liter EAN: 5702420077840 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); gas-charged thermostatic sensing element

Temperature Range

setting 5 °C to 26 °C

HS Code

9032.10
