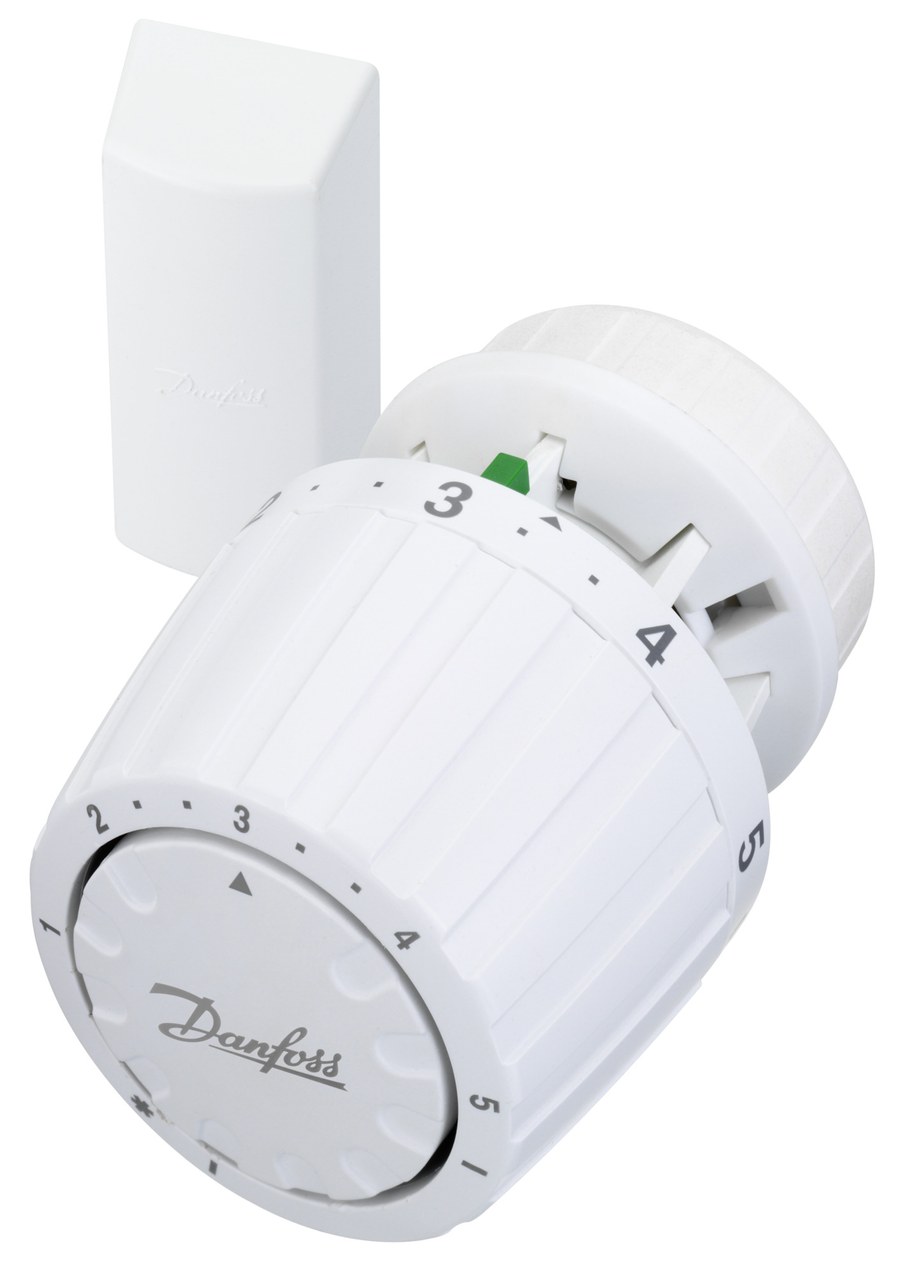

Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, remote sensor, 5–26 °C setting range, for RA valves (013G2982)

Danfoss RA 2000 thermostatic radiator sensor, OEM order code 013G2982 — a remote (off-valve) thermostatic operator: the gas-charged sensing bulb sits in the room air and is linked to the valve head by a 2 m capillary tube, so the room temperature is sensed away from the radiator (used where the valve is boxed in, behind a curtain or close to the floor). It clamps onto Danfoss RA-N / RA-U / RA-G radiator valves via the RA connection (ra-click fixing) and requires no wiring or batteries. Temperature setting range 5 °C to 26 °C; sensing charge gas; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum ~8 °C when turned to the snowflake position), adjustable maximum/minimum temperature limitation and set-point locking with hidden pins under the dial. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G2982). OEM P/N 013G2982, EAN 5702420048109. HS 9032.10 (thermostats).

Code number

013G2982 Type: RA 2000 Sensors Product group: Radiator Sensors Sensor version: RA 2982 Sensor design: RA 2000 Sensor media: Gas (self-acting thermostatic charge) Sensor type: Remote sensor Temperature setting range: 5 °C to 26 °C Connection to valve: RA Connection to sensor / valve body: RA-click Capillary (remote) tube length: 2 m Frost protection: Yes Temperature limitation: Yes Shut-off (0/closed) function: No Colour: White RAL 9016 Contents of set: Sensor Feature description: Frost protection, limiting and locking of temperature set-point, anti-theft protection CE mark: No REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.228 Kilogram Gross weight: 0.228 Kilogram Packed volume: 0.444 Liter EAN: 5702420048109 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); gas-charged thermostatic sensing element

Temperature Range

setting 5 °C to 26 °C

HS Code

9032.10
