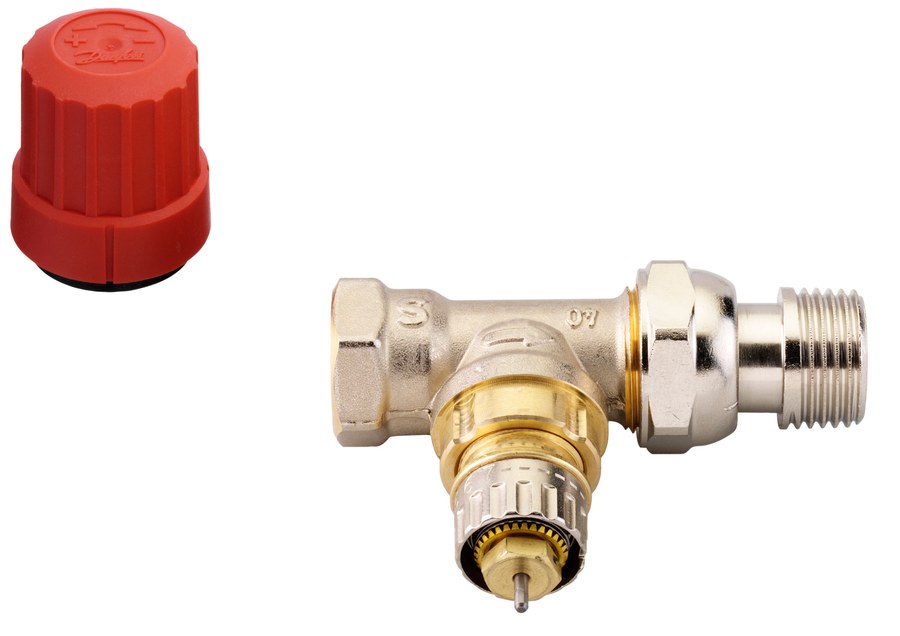

Danfoss RA-N radiator valve, normal flow with presetting, straight, 10/15, dimension standard S
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RA-N — thermostatic radiator valve body with presetting for two-pipe hydronic heating systems, OEM order code 013G3322. The RA-N (normal flow) valve body accepts an RA-series thermostatic sensor (RA 2000 / living-eco head) or an actuator on its clamp connection; the integral presetting device limits the design flow per radiator so the system self-balances without a separate balancing valve. Presetting is stepped 1…7 plus fully open (N), read on the scale under the head. Nickel plated brass body, straight pattern. (RA-N 10/15, dimension standard S.) Connection Rp 3/8 (inlet) / R 1/2 (outlet, external for tailpiece), Kvs 0.65 m³/h, max working pressure 10 bar, test pressure 16 bar, max differential pressure 0.6 bar, flow temperature up to 120 °C. Application: 2-pipe system. Net weight 0.21 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G3322). OEM P/N 013G3322, EAN 5702420034119. HS 8481.80.
Technical Specifications
- Brand
- Danfoss
- Part number
- 013G3322
- Type
- RA-N
- Product group
- Radiator Valves
- Valve type
- Normal flow
- Design
- Straight
- Valve size
- 10/15
- Dimension standard
- S
- Connection size (inlet)
- Rp 3/8
- Connection size (outlet)
- R 1/2
- Connection types
- Internal thread
- Tailpiece type
- Special
- Presetting
- yes
- Kvs value
- 0.65 m³/h
- Kv at presetting
- setting 1 = 0.04 m³/h, setting 2 = 0.08 m³/h, setting 3 = 0.12 m³/h, setting 4 = 0.19 m³/h, setting 5 = 0.25 m³/h, setting 6 = 0.33 m³/h, setting 7 = 0.38 m³/h, setting N = 0.56 m³/h
- Application
- 2-pipe system
- Flow temperature (max)
- 120 °C
- Working pressure (max)
- 10 bar
- Test pressure
- 16 bar
- Differential pressure (max)
- 0.6 bar
- Finish
- Nickel plated
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- EU RoHS compliance
- Yes with exemptions
- Net weight
- 0.21 Kilogram
- Gross weight
- 0.22 Kilogram
- Packed volume
- 0.23 Liter
- EAN
- 5702420034119
- HS code
- 8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)
Standards & Compliance
- Material
- Body brass, nickel plated
- Pressure Rating
- 10 bar max working (test 16 bar)
- Temperature Range
- up to 120 °C (flow)
- HS Code
- 8481.80
Compatibility & Fitment
Two-pipe radiator valve body, straight pattern, valve size 10/15, Rp 3/8 inlet / R 1/2 outlet. Accepts a Danfoss RA-series thermostatic sensor (RA 2000 / living eco) or thermal/electric actuator on the valve clamp ring; set the presetting to the design flow of the radiator. Confirm design (Straight), valve size (10/15) and dimension standard (S) against the installation before ordering.
