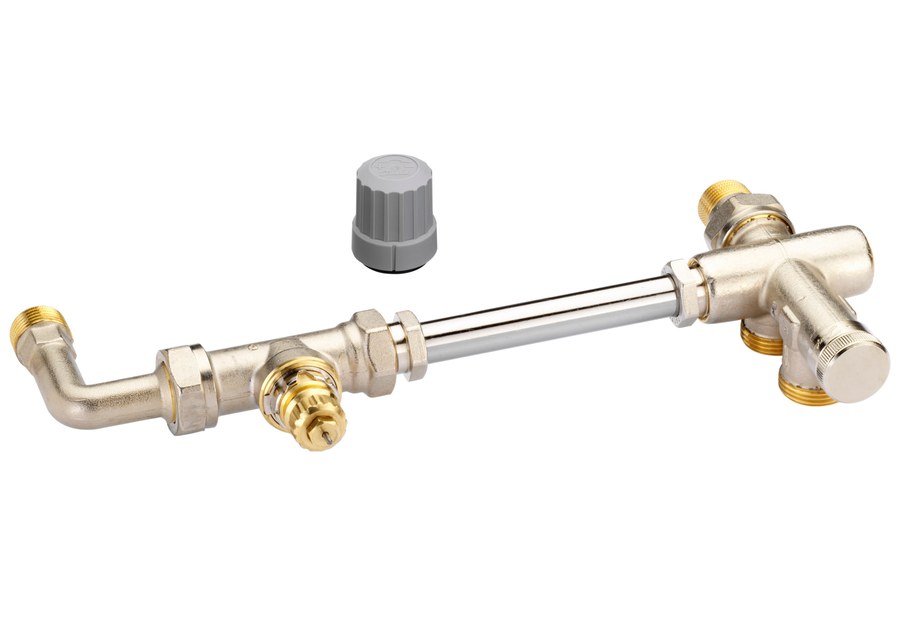

Danfoss RA-KEW single-pipe combi manifold valve set, wall connection

Danfoss RA-KEW manifold assembly, OEM order code 013G3343 — a complete RA-KEW combi manifold valve set for single-pipe systems with an integral RLV return-side lockshield (RA-KEW), pre-assembled for a wall connection radiator connection and ready to accept a Danfoss RA-series thermostatic sensor or actuator. Used to connect radiators to one-pipe (RA-KE/KEW) or two-pipe (RA-K/KW) Danfoss distribution manifolds. Connection G 3/4 A on the manifold side and R 1/2 on the radiator side, wall connection pattern. Kvs 2.5 m³/h; max working pressure 10 bar (test 16 bar), max differential pressure 0.6 bar, flow temperature up to 120 °C. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G3343). OEM P/N 013G3343, EAN 5702420031767. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Brand

Danfoss

Part number

013G3343

Type

RA-KE/KEW

Product group

Manifold Assemblies

Application

1-pipe system

Valve type

RA-KE with elbow

RLV (return lockshield) type

RA-KEW

Design

Wall connection

Connection size (manifold side)

G 3/4 A

Connection size (radiator side)

R 1/2

Contents of set

Valve

Kvs value

2.5 m³/h

Differential pressure (max)

0.6 bar

Flow temperature (max)

120 °C

Working pressure (max)

10 bar

Test pressure

16 bar

Feature description

RA-KEW Manifold set

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.888 Kilogram

Gross weight

0.9 Kilogram

Packed volume

0.854 Liter

EAN

5702420031767

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass

Pressure Rating

10 bar max working (test 16 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
