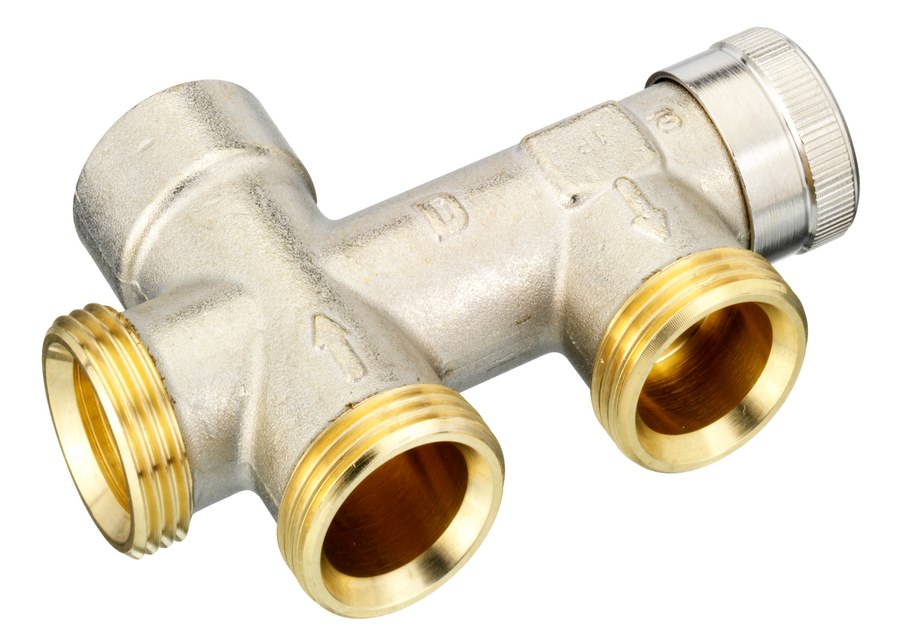

Danfoss RA-KE single-pipe manifold coupling, floor connection

Danfoss RA-KE manifold assembly, OEM order code 013G3366 — a manifold coupling that joins a radiator to a Danfoss single-pipe distribution manifold on the floor connection pattern; it carries the flow/return path for the radiator without an integral thermostatic valve. Used to connect radiators to one-pipe (RA-KE/KEW) or two-pipe (RA-K/KW) Danfoss distribution manifolds. Connection G 3/4 A on the manifold side and R 1/2 on the radiator side, floor connection pattern. max working pressure 10 bar (test 16 bar), max differential pressure 0.6 bar, flow temperature up to 120 °C. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G3366). OEM P/N 013G3366, EAN 5702420031804. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Brand

Danfoss

Part number

013G3366

Type

RA-KE/KEW

Product group

Manifold Assemblies

Application

1-pipe system

Valve type

Coupling

RLV (return lockshield) type

RA-KE

Design

Floor connection

Connection size (manifold side)

G 3/4 A

Connection size (radiator side)

R 1/2

Contents of set

Valve

Differential pressure (max)

0.6 bar

Flow temperature (max)

120 °C

Working pressure (max)

10 bar

Test pressure

16 bar

Feature description

RA-KE, RTD-KE Manifold valve

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

EU RoHS compliance

Yes with exemptions

Net weight

0.405 Kilogram

Gross weight

0.418 Kilogram

Packed volume

0.343 Liter

EAN

5702420031804

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Body brass

Pressure Rating

10 bar max working (test 16 bar)

Temperature Range

up to 120 °C (flow)

HS Code

8481.80
