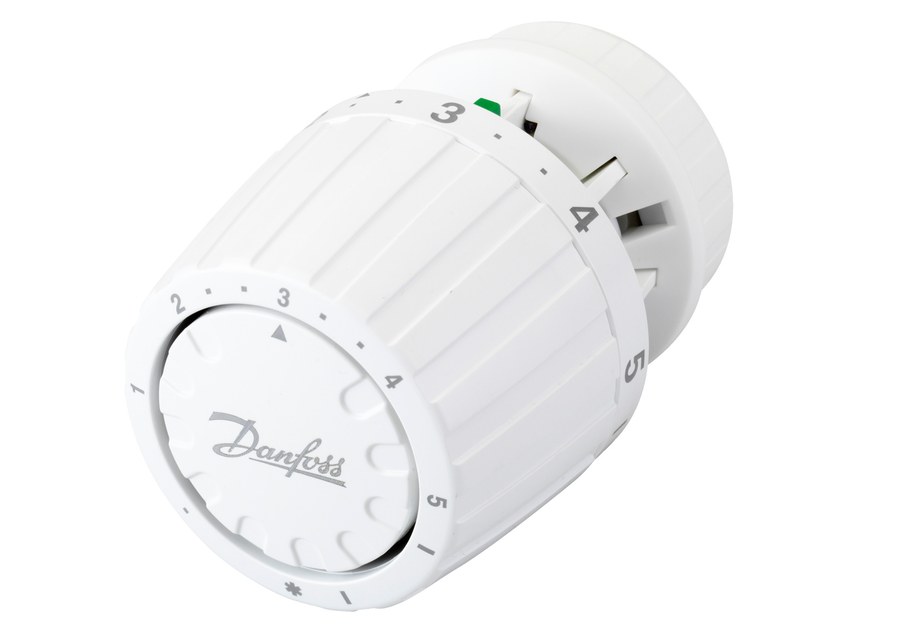

Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, built-in sensor, 5–26 °C setting range, for RA valves (013G2997)

Danfoss RA 2000 thermostatic radiator sensor, OEM order code 013G2997 — a self-acting thermostatic operator (sensor head): the gas-charged sensing element expands and contracts with room temperature and drives the valve cone through the head, throttling flow to hold the set room temperature with no external power. It clamps onto Danfoss RA-N / RA-U / RA-G radiator valves via the RA connection (ra-click fixing) and requires no wiring or batteries. Temperature setting range 5 °C to 26 °C; sensing charge gas; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum ~8 °C when turned to the snowflake position), adjustable maximum/minimum temperature limitation and set-point locking with hidden pins under the dial. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G2997). OEM P/N 013G2997. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.

Code number

013G2997 Type: RA 2000 Sensors Product group: Radiator Sensors Sensor version: RA 2997 Sensor design: RA 2000 Sensor media: Gas (self-acting thermostatic charge) Sensor type: Built-in sensor Temperature setting range: 5 °C to 26 °C Connection to valve: RA Connection to sensor / valve body: RA-click Frost protection: Yes Temperature limitation: Yes Shut-off (0/closed) function: No Colour: White RAL 9016 Contents of set: Sensor Feature description: Frost protection, limiting and locking of temperature set-point (industrial packaging) CE mark: No Net weight: 0.149 Kilogram Gross weight: 0.168 Kilogram Packed volume: 0.345 Liter HS code: 9032.10 (thermostats) Connection type to sensor: RA-click Connection type to valve: RA UL mark: No Capillary tube length: max. 0.0 m Sensor setting temperature: 5 °C to 26 °C

Material

Housing polymer (White RAL 9016); gas-charged thermostatic sensing element

Temperature Range

setting 5 °C to 26 °C

HS Code

9032.10
