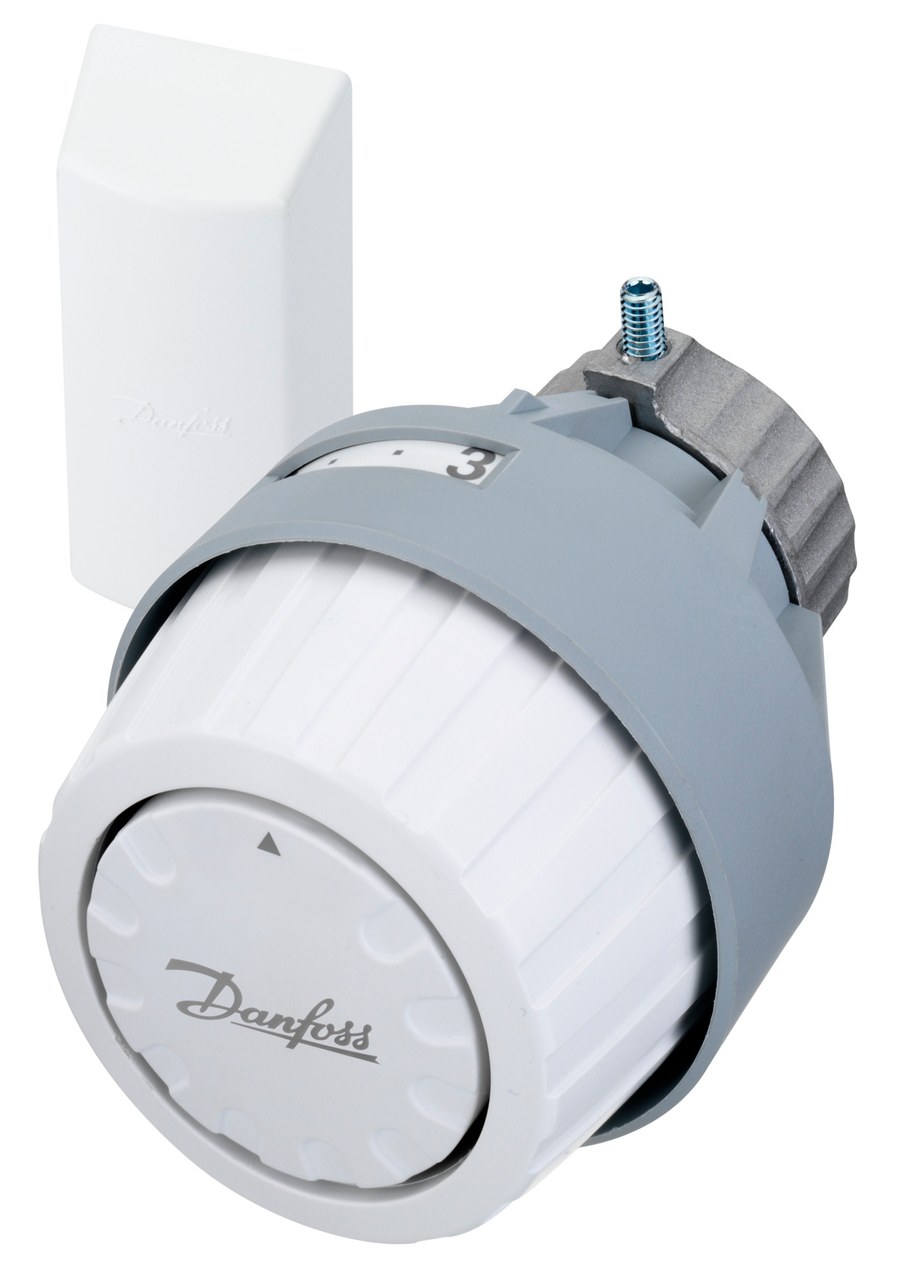

Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, remote sensor, 5–26 °C setting range, for RA valves (013G2922)

Danfoss RA 2000 thermostatic radiator sensor, OEM order code 013G2922 — a remote (off-valve) thermostatic operator: the gas-charged sensing bulb sits in the room air and is linked to the valve head by a 2 m capillary tube, so the room temperature is sensed away from the radiator (used where the valve is boxed in, behind a curtain or close to the floor). It clamps onto Danfoss RA-N / RA-U / RA-G radiator valves via the RA connection (allen screw fixing) and requires no wiring or batteries. Temperature setting range 5 °C to 26 °C; sensing charge gas; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum ~8 °C when turned to the snowflake position), adjustable maximum/minimum temperature limitation and set-point locking with hidden pins under the dial, a tamperproof design for public and communal buildings. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G2922). OEM P/N 013G2922, EAN 5702420048222. HS 9032.10 (thermostats).

Code number

013G2922 Type: RA 2000 Sensors Product group: Radiator Sensors Sensor version: RA 2922 Sensor design: RA 2000 Sensor media: Gas (self-acting thermostatic charge) Sensor type: Remote sensor Temperature setting range: 5 °C to 26 °C Connection to valve: RA Connection to sensor / valve body: Allen screw Capillary (remote) tube length: 2 m Frost protection: Yes Temperature limitation: Yes Shut-off (0/closed) function: No Colour: White RAL 9016 Contents of set: Sensor Feature description: Frost protection, limiting and locking of temperature set-point, tamperproof, connection with clamping ring and Allen screw CE mark: No EU RoHS compliance: Out of scope REACH candidate-list substances: No Net weight: 0.228 Kilogram Gross weight: 0.228 Kilogram Packed volume: 0.447 Liter EAN: 5702420048222 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); gas-charged thermostatic sensing element

Temperature Range

setting 5 °C to 26 °C

HS Code

9032.10
