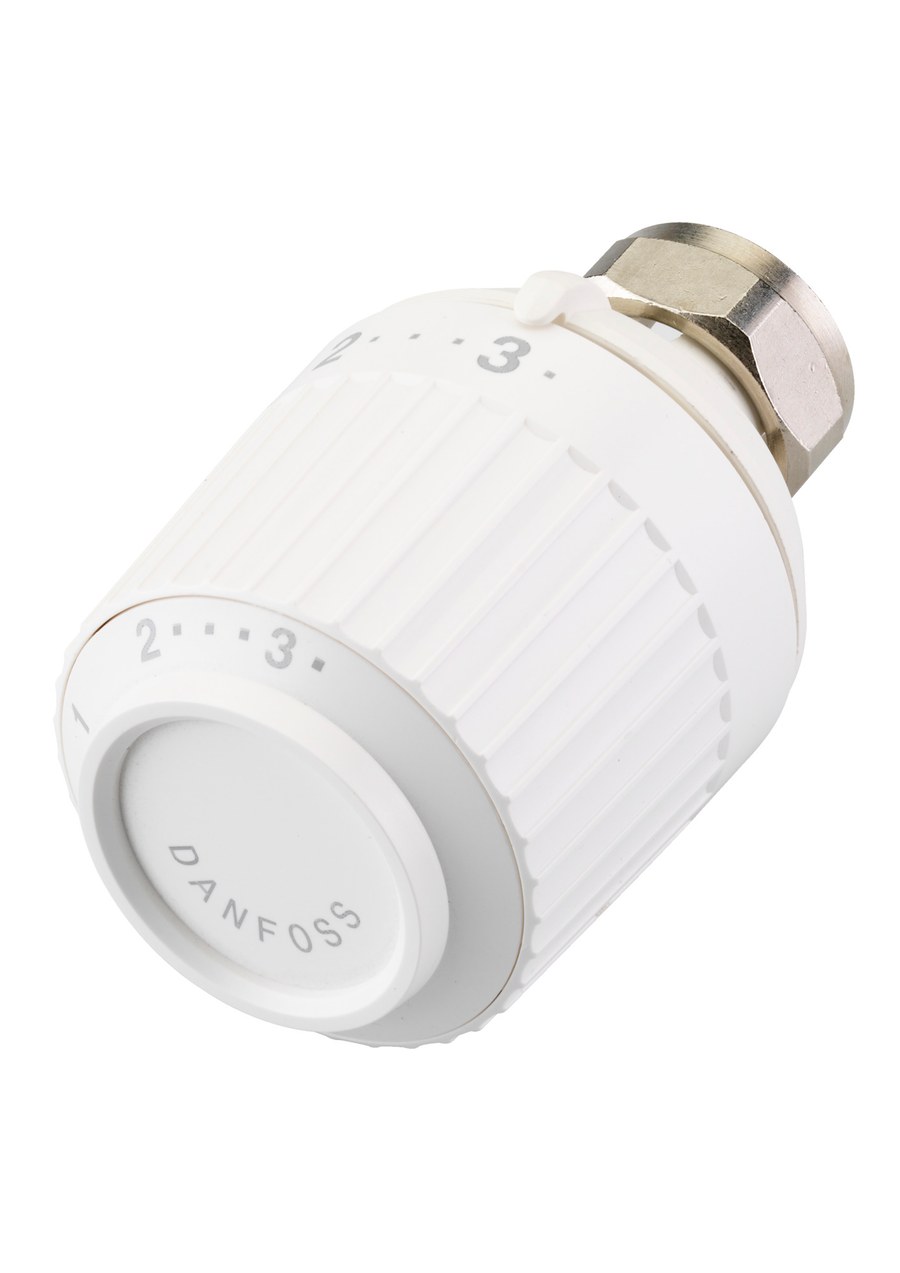

Danfoss MMA (M28) thermostatic radiator sensor (operator head), liquid-charged, built-in sensor, 8–21 °C setting range, for M28 MMA valves
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MMA (M28) thermostatic radiator sensor, OEM order code 013G2760 — a self-acting thermostatic operator (sensor head): the liquid-charged sensing element expands and contracts with room temperature and drives the valve cone through the head, throttling flow to hold the set room temperature with no external power. It clamps onto M28 MMA-connection radiator valves via the M28 MMA connection (metal nut fixing) and requires no wiring or batteries. Temperature setting range 8 °C to 21 °C; sensing charge liquid; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum ~8 °C when turned to the snowflake position), adjustable maximum/minimum temperature limitation and set-point locking with hidden pins under the dial. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G2760). OEM P/N 013G2760, EAN 5702420032306. HS 9032.10 (thermostats). Modulates refrigerant flow to the evaporator in response to superheat at the evaporator outlet.
Technical Specifications
- Code number
- 013G2760 Type: MMA Sensors Product group: OEM products Sensor version: RA 2760 Sensor design: RA 2000 Sensor media: Liquid (self-acting thermostatic charge) Sensor type: Built-in sensor Temperature setting range: 8 °C to 21 °C Connection to valve: M28 MMA Connection to sensor / valve body: Metal nut Frost protection: Yes Temperature limitation: Yes Shut-off (0/closed) function: No Colour: White RAL 9016 Contents of set: Sensor Feature description: Frost protection, limiting and locking of temperature set-point, suitable for MMA valves CE mark: No REACH candidate-list substances: Lead (CAS no. 7439-92-1) Net weight: 0.147 Kilogram Gross weight: 0.155 Kilogram Packed volume: 0.358 Liter EAN: 5702420032306 HS code: 9032.10 (thermostats)
Standards & Compliance
- Material
- Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element
- Temperature Range
- setting 8 °C to 21 °C
- HS Code
- 9032.10
Compatibility & Fitment
Thermostatic operator head for M28 MMA-connection radiator valves (M28 MMA valve connection). Built-in type — the sensor reads the air at the valve; do not box in or cover the head, and mount horizontal pipework valves so the head is not above the radiator. Confirm the valve family (M28 MMA) and sensor connection (Metal nut) before ordering; the head fits Danfoss M28 MMA valve bodies only. No power supply required (self-acting). Setting range 8 °C–21 °C.
Product Documentation
More from Danfoss
Danfoss
Danfoss MMA (M28) thermostatic radiator sensor (operator head), liquid-charged, built-in sensor, 8–28 °C setting range, for M28 MMA valves
013G2761
Danfoss
Danfoss TA (M28) thermostatic radiator sensor (operator head), liquid-charged, built-in sensor, 8–21 °C setting range, for M28 TA valves
013G2770
Danfoss
Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, built-in sensor, 5–26 °C setting range, for RA valves (013G2910)
Danfoss
Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, remote sensor, 5–26 °C setting range, for RA valves (013G2912)
Danfoss

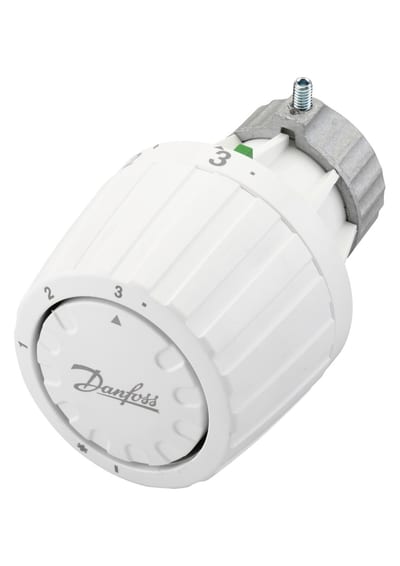

Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, built-in sensor, 5–20 °C setting range, for RA valves
013G2914
Danfoss

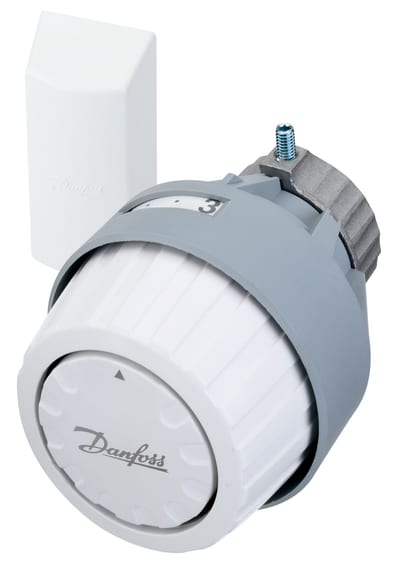

Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, remote sensor, 5–26 °C setting range, for RA valves (013G2922)
Danfoss

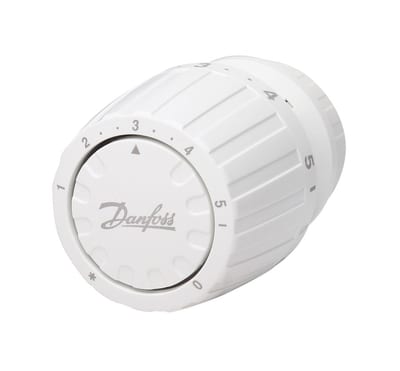

Danfoss RA 2000 thermostatic radiator sensor (operator head), gas-charged, built-in sensor, 5–26 °C setting range, for RA valves (013G2944)
Danfoss

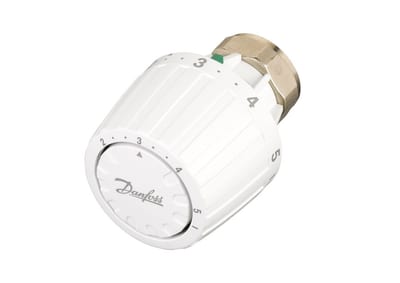

Danfoss RA/RTD thermostatic radiator sensor (operator head), gas-charged, built-in sensor, 16–26 °C setting range, for RTD valves
