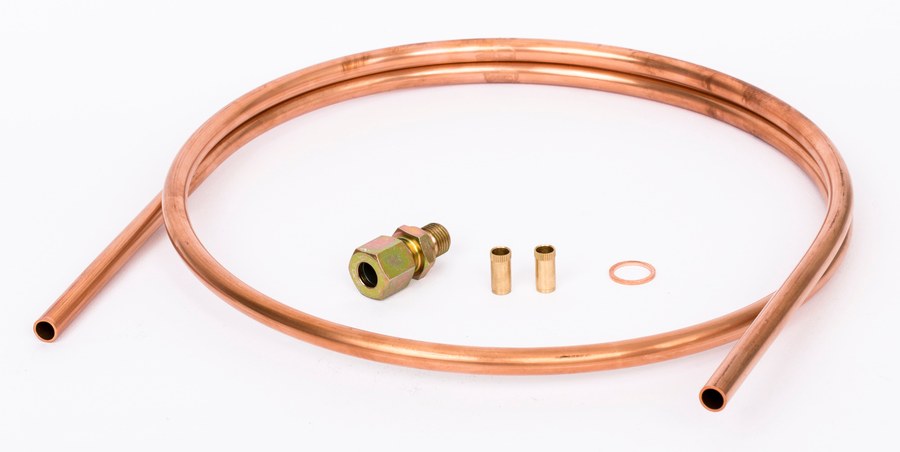

Danfoss AF-range impulse tube set — universal AFP(Q)/B, 1.5 m, 10 mm × G 1/4, Copper CW 024A
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AF-range impulse tube set (OEM designation "Impulse tube set AF G1/4, fi10x1,5m"). The impulse tubes connect the diaphragm chamber of a Danfoss self-acting AF-range pressure/flow controller actuator to the pressure-sensing tapping(s) on the pipework, transmitting the pipe pressure to the actuator so it can hold the set differential pressure or flow. This set is matched to the AFP(Q)/B controller. Tube outer diameter 10 mm; union connection G 1/4; material Copper CW 024A. Permissible medium: District heating/cooling circulation water. OEM P/N 003G1391. EAN 5702421812419. Technical data quoted verbatim from store.danfoss.com (code 003G1391).
Technical Specifications
- Code number
- 003G1391
- Type
- Impulse tubes
- Product group
- Accessories - SAC
- Gross weight
- 0.574 Kilogram
- Net weight
- 0.433 Kilogram
- Volume
- 3.538 Liter
- Connection size
- G 1/4
- Contains batteries
- No
- Description
- Impulse tube set AF G1/4, fi10x1,5m
- Diameter [mm]
- 10 mm
- EU RoHS compliance
- Yes with exemptions
- For product type
- AFP(Q)/B
- For valve size
- Universal
- Length [mm]
- 1500 mm
- Material
- Cooper CW 024A
- Permissible media
- District heating/cooling circulation water
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- SCIP dossier no.
- 7c43cb77-911c-4b9f-aed9-1ac41d81c831
- Suitable for valve of diameter [mm] [Max]
- 250 mm
- Suitable for valve of diameter [mm] [Min]
- 15 mm
- EAN
- 5702421812419
- HS code
- 8481.90
Standards & Compliance
- Size / Series
- Impulse tubes
- Material
- Cooper CW 024A
- Thread Standard
- G 1/4
- HS Code
- 8481.90
Compatibility & Fitment
Impulse tubes are ordered to match the controller Type and the valve size/pressure class. This set fits AFP(Q)/B controllers. Confirm the controller Type, valve DN and PN against the AF-range data sheet before ordering — impulse tube length and fittings differ between controller families (AFQ, AFP/AFPB, AFPQ, AFPQ4/AVPQ).
