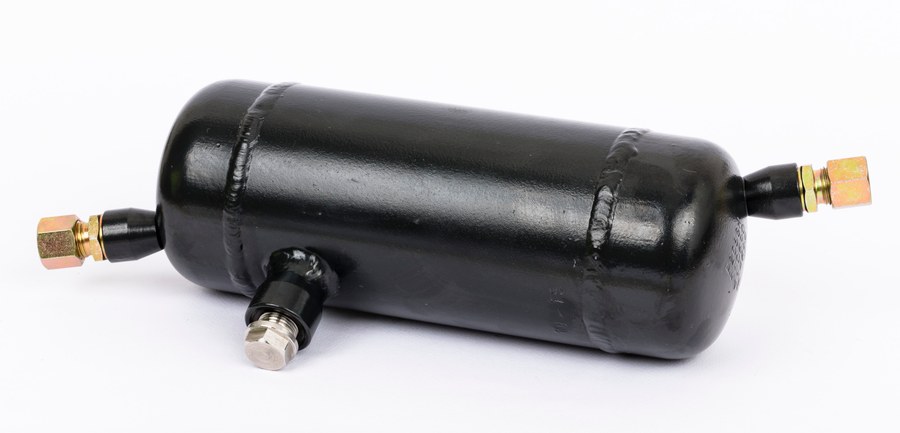

Danfoss AF-range seal pot V1 — 1 L condensate/seal pot for self-acting controller actuators
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AF-range seal pot V1 (OEM designation "Seal pot V1, 1.0 l, AF range"), filling volume 1 L. The seal pot forms a water-filled buffer between hot process medium and the self-acting AF-range controller actuator, keeping the actuator diaphragm within its permitted temperature on high-temperature (e.g. steam or high-temperature water) applications. Ordered separately and plumbed into the impulse line between the pressure tapping and the actuator. OEM P/N 003G1392. EAN 5702421812426. Technical data quoted verbatim from store.danfoss.com (code 003G1392).
Technical Specifications
- Code number
- 003G1392
- Type
- Seal pots
- Product group
- Accessories - SAC
- Gross weight
- 3.1 Kilogram
- Net weight
- 2.938 Kilogram
- Volume
- 4.666 Liter
- Contains batteries
- No
- Description
- Seal pot V1, 1.0 l, AF range
- EU RoHS compliance
- Yes with exemptions
- Filling volume [l]
- 1 L
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- SCIP dossier no.
- 93a24a3c-a530-454a-8fb3-87a807b62693
- SCIP dossier product name
- SAC HD SEAL POT
- EAN
- 5702421812426
- HS code
- 8481.90
Standards & Compliance
- Size / Series
- Seal pots
- HS Code
- 8481.90
Compatibility & Fitment
The seal pot V1 mounts in the impulse line ahead of a Danfoss AF-range self-acting controller actuator to protect the diaphragm from high media temperature. Filling volume 1 L. Confirm against the AF-range data sheet whether a seal pot is required for the media temperature of the application.
Product Documentation
More from Danfoss
Danfoss
Danfoss AF-range stem extension ZF 6 — insulation spacer for valve bodies DN 15–125
003G1393
Danfoss
Danfoss AF-range stem extension ZF 4 — insulation spacer for valve bodies DN 15–125
003G1394
Danfoss
Danfoss AF-range stem extension ZF 4 (FKM) — insulation spacer for valve bodies DN 15–125
003G1395
Danfoss
Danfoss AF-range stem extension ZF 5 — insulation spacer for valve bodies DN 15–125
003G1396
Danfoss

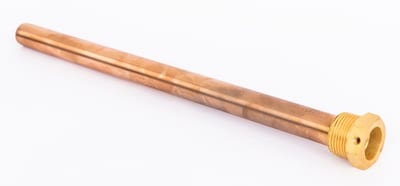

Danfoss immersion pocket (thermowell) — for AFT self-acting temperature controller, R1" DIN2999 Bronze PN 40, 401 mm
003G1399
Danfoss

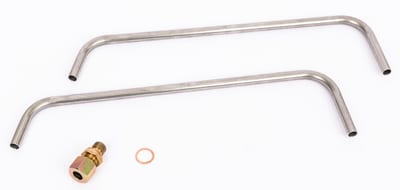

Danfoss AF-range impulse tube set for AFQ controllers — valve DN 250, PN 40, 10 mm × G 1/4, Stainless steel
003G1404
Danfoss

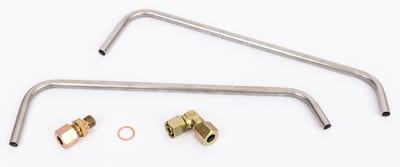

Danfoss AF-range impulse tube set for AFPQ controllers — valve DN 250, PN 40, 10 mm × G 1/4, Stainless steel
003G1405
Danfoss

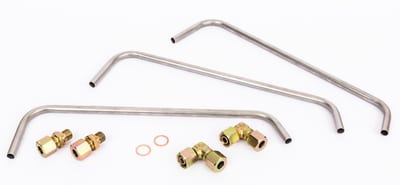

Danfoss AF-range impulse tube set for AFPQ4 controllers — valve DN 250, PN 40, 10 mm × G 1/4, Stainless steel
