Danfoss AF-range impulse tube set for AFQ controllers — valve DN 250, PN 40, 10 mm × G 1/4, Stainless steel
Pricing
Request a quote
We reply within 24 hours
Product Description

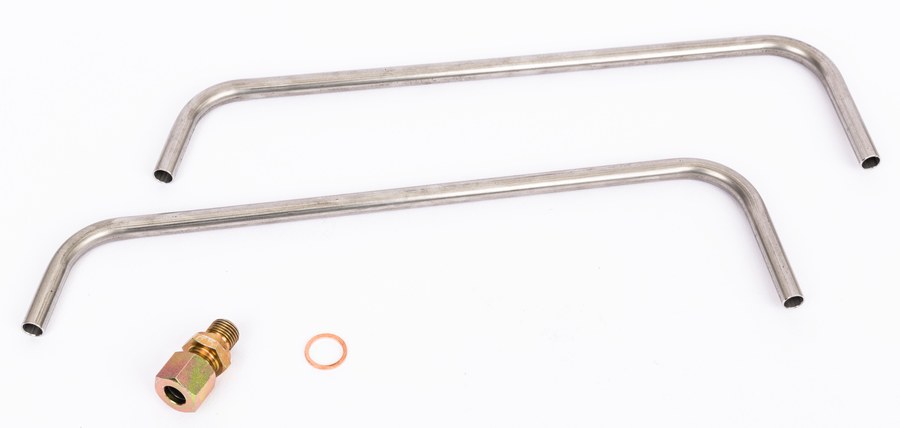

Danfoss AF-range impulse tube set (OEM designation "Impulse tubes for AFQ PN40 250"). The impulse tubes connect the diaphragm chamber of a Danfoss self-acting AF-range pressure/flow controller actuator to the pressure-sensing tapping(s) on the pipework, transmitting the pipe pressure to the actuator so it can hold the set differential pressure or flow. This set is matched to the AFQ controller on valve size DN 250 at PN 40. Tube outer diameter 10 mm; union connection G 1/4; material Stainless steel. Permissible medium: District heating/cooling circulation water. OEM P/N 003G1404. EAN 5702421813539. Technical data quoted verbatim from store.danfoss.com (code 003G1404).
Technical Specifications
- Code number
- 003G1404
- Type
- Impulse tubes
- Product group
- Accessories - SAC
- Gross weight
- 0.375 Kilogram
- Net weight
- 0.375 Kilogram
- Volume
- 3.575 Liter
- Connection size
- G 1/4
- Contains batteries
- No
- Description
- Impulse tubes for AFQ PN40 250
- Diameter [mm]
- 10 mm
- For product type
- AFQ
- For valve size
- DN 250
- Material
- Stainless steel
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 40 bar
- Suitable for valve of diameter [mm] [Max]
- 250 mm
- Suitable for valve of diameter [mm] [Min]
- 250 mm
- Suitable for valve of pressure [bar] [Max]
- 40 bar
- Suitable for valve of pressure [bar] [Min]
- 40 bar
- EAN
- 5702421813539
- HS code
- 8481.90
Standards & Compliance
- Size / Series
- Impulse tubes
- Material
- Stainless steel
- Thread Standard
- G 1/4
- Pressure Rating
- PN 40
- HS Code
- 8481.90
Compatibility & Fitment
Impulse tubes are ordered to match the controller Type and the valve size/pressure class. This set fits AFQ controllers at valve size DN 250, PN 40. Confirm the controller Type, valve DN and PN against the AF-range data sheet before ordering — impulse tube length and fittings differ between controller families (AFQ, AFP/AFPB, AFPQ, AFPQ4).
Product Documentation
More from Danfoss
Danfoss
Danfoss AF-range impulse tube set for AFPQ controllers — valve DN 250, PN 40, 10 mm × G 1/4, Stainless steel
003G1405
Danfoss
Danfoss AF-range impulse tube set for AFPQ4 controllers — valve DN 250, PN 40, 10 mm × G 1/4, Stainless steel
003G1406
Danfoss
Danfoss AF-range impulse tube set for AFPQ controllers — valve DN 200, PN 40, 10 mm × G 1/4, Stainless steel (003G1416)
Danfoss
Danfoss AF-range impulse tube set for AFPQ controllers — valve DN 250, PN 16, 10 mm × G 1/4, Stainless steel
003G1417
Danfoss
Danfoss AF-range impulse tube set for AFPQ4 controllers — valve DN 200, PN 16, 10 mm × G 1/4, Stainless steel
003G1418
Danfoss
Danfoss AF-range impulse tube set for AFPQ4 controllers — valve DN 250, PN 16, 10 mm × G 1/4, Stainless steel
003G1419
Danfoss

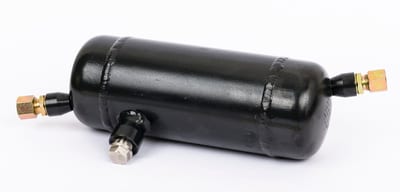

Danfoss AF-range seal pot V3 — 3 L condensate/seal pot for self-acting controller actuators
003G1403
Danfoss

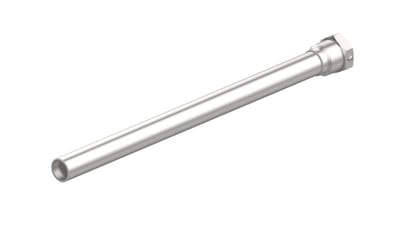

Danfoss immersion pocket (thermowell) — for AFT self-acting temperature controller, R1" DIN2999 Stainless steel PN 40, 401 mm
