Danfoss AF-range stem extension ZF 5 — insulation spacer for valve bodies DN 15–125
Pricing
Request a quote
We reply within 24 hours
Product Description

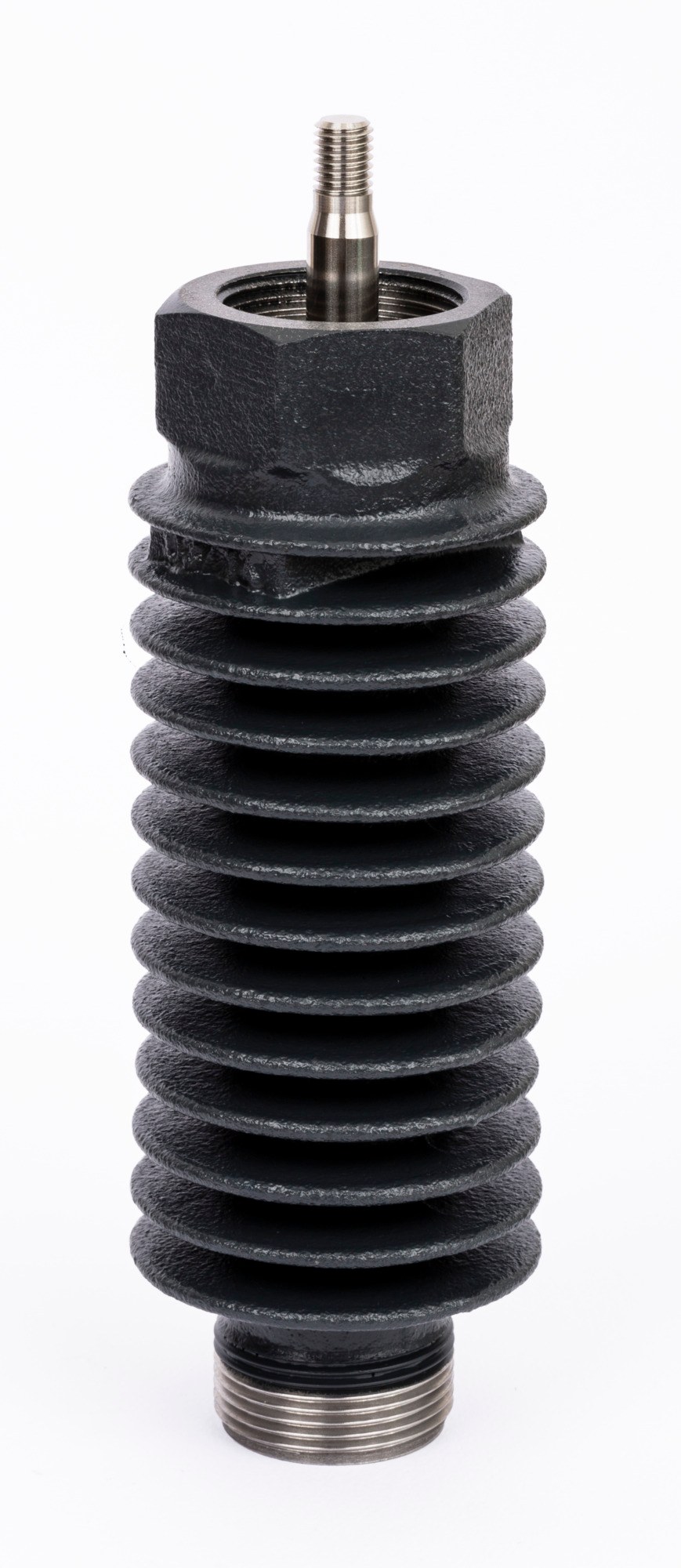

Danfoss AF-range stem extension ZF 5 (OEM designation "Stem extension ZF 5, AF range"). The stem extension is a spacer piece fitted between the valve body and the self-acting AF-range actuator, giving clearance for pipe insulation and separating the actuator from the hot valve body. Suits valve bodies DN 15–125. OEM P/N 003G1396. EAN 5702421812464. Technical data quoted verbatim from store.danfoss.com (code 003G1396).
Technical Specifications
- Code number
- 003G1396
- Type
- Stem extensions
- Product group
- Accessories - SAC
- Gross weight
- 2.791 Kilogram
- Net weight
- 2.791 Kilogram
- Volume
- 4.719 Liter
- Contains batteries
- No
- Description
- Stem extension ZF 5, AF range
- For valve size
- DN 15-125
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Suitable for valve of diameter [mm] [Max]
- 125 mm
- Suitable for valve of diameter [mm] [Min]
- 15 mm
- EAN
- 5702421812464
- HS code
- 8481.90
Standards & Compliance
- Size / Series
- Stem extensions
- HS Code
- 8481.90
Compatibility & Fitment
Stem extension ZF 5 fits between a Danfoss VFG-series globe valve body (DN 15–125) and the AF-range actuator to allow insulation clearance. ZF 4/5/6 differ in build height; the FKM variant is for higher media temperature. Confirm the required extension height and seal material against the AF-range data sheet before ordering.
